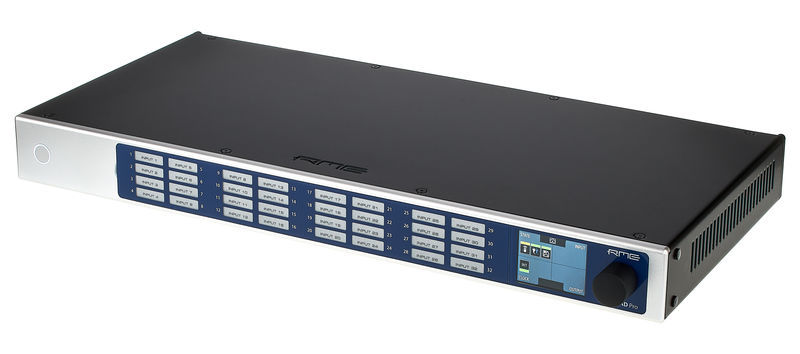

RME M-32 AD Pro

32-Channel High-End AD Converter
- Fully symmetric circuit design
- Signal-to-noise ratio: 120 dBA
- 32 Channels transferable at 192 kHz
- AVB interface (IEEE 802.1 and 1722.1)
- Cascadable via external AVB switch
- Intuitive user interface
- 2 Monitored fully redundant internal PSUs
- Analog inputs: 4x 25 pin D-Sub
- Maximum input level: +24 dBU
- RJ45 1 GigE AVB connection
- MIDI input / output
- Wordclock input / output
- 2x MADI input / output
Further Information
Amount Of Channels | 32 |
---|---|
AD Conversion | Yes |
DA Conversion | No |
Max. Resolution | 24 bit |
Max. sampling rate | 192 kHz |
S/PDIF Connecor | No |
AES/EBU Connector | No |
ADAT | No |
Word clock | Yes |
Number of analog inputs | 32 |
Number of Analog Outputs | 0 |
Headphone connection | No |
