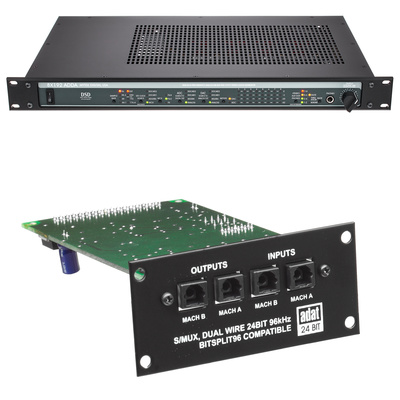

Mytek Digital 8X192 Series ADAT Bundle

Bundle offer comprising

Mytek Digital 8x192 Series AD/DA

  • 8-Channel Mastering AD/DA Converter
  • PCM A/D and D/A conversion for all sampling rates from 44.1 kHz to 192 kHz, 24-Bit
  • Digital format conversion between AES and one of two available, optional DIO cards
  • Analogue mix bus for 4 stereo or 8 mono channels
  • 8 Analogue outputs
  • 2 XLR outputs can be used as channel outputs or mix bus outputs
  • Headphone connector
  • Analogue inputs: +4 dBm balanced or unbalanced Sub D-25
  • Analogue outputs: +4 dBm balanced or unbalanced Sub D-25 + 2x XLR
  • Digital inputs and outputs: 8 hi-speed AES/EBU or S/PDIF D-25
  • Word clock input/output (6 separate outputs)
  • Dimensions (W x H x D): 43.1 x 4 x 22.9 cm
  • Format: 19" / 1 RU
  • Weight: 6.3 kg

Mytek Digital 8x192 ADAT Card

  • 8 x192 ADAT DIO card
  • 8-Channel ADAT card
  • 2 x ADAT In and 2 x ADAT Out
  • Supports 8 channels with 24-bit / 44.1 to 96 kHz and 4 channels with 176.4 to 192 kHz
  • For MAC OSX and Windows drivers

Further Information

Amount Of Channels 8
AD Conversion Yes
DA Conversion Yes
Max. Resolution 24 bit
Max. sampling rate 192 kHz
S/PDIF Connecor No
AES/EBU Connector Yes
ADAT Yes
Word clock Yes
Number of analog inputs 8
Number of Analog Outputs 8
Headphone connection Yes
1 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • sound
  • quality
2.858 €
Free shipping incl. VAT
Available shortly (2-5 days)
