MOTU Track16

USB and Firewire hybrid audio interface

  • 24 bits 192 kHz
  • 8 analog inputs and outputs
  • Inputs for microphones (including phantom power)
  • Guitars and line signals
  • 1x ADAT / S / PDIF input and output
  • Sym. and unsym. Input / Output
  • 2 headphone outputs (3.5mm and 6.3mm)
  • Standalone function - operating as a 16 channel digital mixer without computer
  • MIDI input and output
  • DSP mixer with EQ and compressor for each input / output channel
  • 4 x 14 LED display
  • 10 backlit buttons
  • Extensive software for real-time analysis and more
  • SMPTE timecode
  • Computer connection: 1x Firewire 400 (Type B - Bus powered) and 1x USB 2.0 (without bus power)
  • Including power supply
  • Windows and Mac drivers with 32 and 64 bit (requires Windows as of Vist SP2 Mac 10.5.8 - PPC G5 and Intel)

Further information

Recording / Playback Channels 16x14
Number of Mic Inputs 2
Number of Instrument Inputs 2
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 1
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface Yes
Word Clock No
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 2.0
Width in mm 127 mm
Depth in mm 213 mm
Height in mm 29 mm

Come up with your own creative bundle and save

If you order this product together with others as part of a bundle, you can save up to 8 % additionally!
MOTU Track16 + Avid Pro Tools +
9 more
Configure bundle now
starting from 915 €
21 customer ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.1 / 5.0
  • handling
  • features
  • sound
  • quality
12 written ratings Read all reviews
Total
quality
features
handling
sound

Not worth 500+?

08.12.2014
The Track 16 is an OK interface, but MOTU could have done a lot better, or could sell it a lot cheaper, at least half its actual price.

To start with an for me one of the most important things, is that the Track16 struggles with clocking. If you don't have your clock sorted, then the rest doesn't really matters. This happens either with FW or USB connection.

Then the connections. That breakout cable seems to have been built by an amateur. Extremely poor quality. It only turns one way (in my case to the left, so it you would want it to turn to the right you would have to twist it against its will probably reducing its life expectancy. It's also huge, so it makes this less of a portable device. And the connectors are rubbish. Would be fine if the interface was on the ?200 range, but not for a ?500+ interface. For this to be worth ?500 plus they should have integrated the Track16 with the breakout box that they sell seperately for another ?120+ into one unit.

Audio quality in my opinion is pretty poor. I've done some measurements and it's less than desirable response for this price range. Also, the inputs and outputs levels are not matched. I've tried sending pink noise out of the balanced outputs straight into the balaced inputs with a 0dB gain structure all over and the balanced inputs gave me a reduction of about -4dB. Again, not acceptable for this price range.

Then software wise, you don't have any control whatsoever over the return from software input, you can only route it to an output without any level control. Or at least I couldn't find how to do it.

Latency is good tho, only giving you 0.51ms for a round trip at 96KHz. And the built quality is good too (apart from the b/out cable). This are the only 2 positive points I can consider on this device.

In conclusion, is an ok interface if you are not very demanding, but it's definitely not worth ?500+. The Track 16 should be in the ?200-?300 price range max as it is.

As a Live Sound Engineer i've been using a Lexicon Omega for the last 8 years for my acoustical measurements and some plugin processing and show recording and it seemed to me a much better product than this, with a much better audio quality and preamps, and a much more straight forward usability, specially considering the price tag.

My opinion, don't waste you money on this. find something cheaper, or better. Maybe spending a little more will give you better results and a better return for your bucks in the long term. I'm returning it and getting and RME interface, which should have done from the beginning.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound

Good for the price!

Alexis, 20.02.2014
The Motu Track 16 is a big competitive to the Apogee Duet Version One and Version two as the same as the RME Babyface.

The Track 16 is a little bigger than the Duet and Babyface, the big advantage is that it is featuring a more detailed LED Meter for more parameters and the shortcut buttons for accessing the two Mic Inputs, the Guitar Inputs and the Phone Outs with just a single push.

The biggest advantage for me is the Standalone Mode because I want to listen to Music even without my Macbook. So i can connect a Mp3 Player and my Axe Fx Guitar Processor to it and mix those signals for my studio speakers.

I prefer the Firewire Port because I need my USB ports for other devices so the Duet was a no-go for me.

The Value knob is good but doesn't feel so nice like the one of the Duet.

Sound-wise the Track 16 is doing a really good job, it sounds really natural and open and the short latency is perfect for my needs.

The Breakoutbox is too expensive for me but it would really clean up my desk but Motu,100 bucks?
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Show variations of this product
MOTU Track16
(21)
MOTU Track16
to the product
439 €

USB and Firewire hybrid audio interface 24 bits 192 kHz, 8 analog inputs and outputs, Inputs for microphones (including phantom power), Guitars and line signals, 1x ADAT / S / PDIF input and...

  • Recording / Playback Channels: 16x14
  • Number of microphone inputs: 2
  • Number of Mic Inputs: 2
  • Number of Instrument Inputs: 2
  • Number of instrument inputs: 2
  • Headphone Outs: 1
  • Phantom power: Yes
  • Number of S/PDIF Connectors: 0
  • Number of ADAT Connectors: 1
  • Numer of AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI interface: Yes
  • Word Clock: No
  • Max. sample rate (kHz): 192 kHz
  • Max. resolution in bit: 24 bit
  • USB Bus-Powered: No
  • Bus-Powered: Yes
  • Incl. power supply: Yes
  • USB Version: 2.0
  • Width in mm: 127 mm
  • Depth in mm: 213 mm
  • Height in mm: 29 mm
  • Included in delivery: Breakoutcable, software
  • Zero latency monitoring: Yes
MOTU UltraLite-mk4
(11)
MOTU UltraLite-mk4
to the product
589 €

18 x 22 USB Audio Interface with DSP USB 2.0 (compatible with USB 3.0), 24 bits / 192 kHz, Two microphone or instrument combo jack inputs, 6 Balanced analogue inputs and 10 outputs with TRS,...

  • Recording / Playback Channels: 18x20
  • Number of Mic Inputs: 2
  • Number of Instrument Inputs: 2
  • Headphone Outs: 1
  • Phantom power: Yes
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 1
  • Numer of AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI interface: Yes
  • Word Clock: No
  • Max. sample rate (kHz): 192 kHz
  • Max. resolution in bit: 24 bit
  • USB Bus-Powered: No
  • Incl. power supply: Yes
  • USB Version: 2.0
  • Width in mm: 220 mm
  • Depth in mm: 178 mm
  • Height in mm: 45 mm
  • Included in delivery: USB Cable, Software
  • Zero latency monitoring: Yes
MOTU 8 Pre-es
MOTU 8 Pre-es
to the product
1.490 €

24/28 Channel Audio Interface 24-Bit / 192 kHz AD / DA ESS Saber32 converter, 8 Phantom-powered mic preamps (XLR / TRS combo), 2x ADAT IN / OUT, 8x Analogue OUT (6.3 mm jack TRS), 2x Headphone...

  • Number of Mic Inputs: 8
  • Number of Instrument Inputs: 8
  • Number of Line Inputs: 8
  • Number of Line Outputs: 8
  • Headphone Outs: 2
  • Phantom power: Yes
  • Phantom Power: Yes
  • Number of S/PDIF Connectors: 0
  • Number of ADAT Connectors: 2
  • Numer of AES/EBU Connectors: 0
  • AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 1
  • Other Connectors: No
  • MIDI interface: No
  • Word Clock: 1xIn, 1xOut
  • MIDI Connectors: No
  • Max. sample rate (kHz): 192 kHz
  • Max. resolution in bit: 24 bit
  • Max. Samplerate: 192 kHz
  • Max. Resolution in Bit: 24 bit
  • USB Bus-Powered: No
  • Incl. power supply: Yes
  • Bus-Powered: No
  • Incl. Power Supply: Yes
  • USB Version: 2.0
  • Windows Driver: Yes
  • Thunderbolt Version: 2
  • Width in mm: 483 mm
  • Depth in mm: 178 mm
  • Height in mm: 45 mm
  • Included in delivery: USB cable
  • Zero latency monitoring: Yes
MOTU 4 Pre Hybrid
(21)
MOTU 4 Pre Hybrid
to the product
479 €

USB / Firewire Audio Interface 6x8 With four microphone preamplifiers, 24-bit / 96 kHz, Inputs: 4x XLR / Jack Combo (Line / Mic), 2x Jack 6.3 mm, 2x Hi-Z instrument, Outputs: 4 x 6.3 mm jack...

  • Recording / Playback Channels: 6x6
  • Number of Mic Inputs: 4
  • Number of microphone inputs: 4
  • Number of Instrument Inputs: 2
  • Number of instrument inputs: 2
  • Headphone Outs: 2
  • Phantom power: Yes
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 0
  • Numer of AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI interface: No
  • Word Clock: No
  • Max. sample rate (kHz): 96 kHz
  • Max. resolution in bit: 24 bit
  • Bus-Powered: Yes
  • USB Bus-Powered: Yes
  • Incl. power supply: Yes
  • USB Version: 2.0
  • Width in mm: 241 mm
  • Depth in mm: 177 mm
  • Height in mm: 45 mm
  • Included in delivery: USB cable, firewire cable
  • Zero latency monitoring: Yes
MOTU Audio Express
(97)
MOTU Audio Express
to the product
422 €

Firewire / USB 2.0 audio interface 24-bit / 96 kHz, 2 Instrument / MIC inputs (XLR / TRS jack) with 20 dB pad (switchable), 48 V phantom power (switchable) and high impedance guitar input, Stereo...

  • Recording / Playback Channels: 6x6
  • Number of microphone inputs: 2
  • Number of Mic Inputs: 2
  • Number of instrument inputs: 2
  • Number of Instrument Inputs: 2
  • Headphone Outs: 1
  • Phantom power: Yes
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 0
  • Numer of AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI interface: Yes
  • Word Clock: No
  • Max. sample rate (kHz): 96 kHz
  • Max. resolution in bit: 24 bit
  • Bus-Powered: Yes
  • USB Bus-Powered: Yes
  • Incl. power supply: Yes
  • USB Version: 2.0
  • Width in mm: 241 mm
  • Depth in mm: 178 mm
  • Height in mm: 45 mm
  • Included in delivery: USB cable, firewire cable, power supply, software
  • Zero latency monitoring: Yes
MOTU MicroBook IIc
(11)
MOTU MicroBook IIc
to the product
259 €

4-In / 6-Out USB 2.0 Audio Interface For PC / MAC or iPad (requires "Camera Connection Kit" - not included), 2 USB ports (USB-B and MicroUSB), 6 Inputs - 4 simultaneously usable, 8 Outputs - 6 can...

  • Recording / Playback Channels: 4x6
  • Number of Mic Inputs: 1
  • Number of Instrument Inputs: 1
  • Headphone Outs: 1
  • Phantom power: Yes
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 0
  • Numer of AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • Word Clock: No
  • Max. sample rate (kHz): 96 kHz
  • Max. resolution in bit: 24 bit
  • USB Bus-Powered: Yes
  • Incl. power supply: No
  • USB Version: 2.0
  • Width in mm: 140 mm
  • Depth in mm: 92 mm
  • Height in mm: 32 mm
  • Included in delivery: USB cable, software
  • Zero latency monitoring: Yes
MOTU 8 Pre USB
(24)
MOTU 8 Pre USB
to the product
589 €

USB Audio Interface 24 Bit / 96 kHz AD/DA driver, 8 Phantom powered microphone preamp (XLR/TRS combo), ADAT IN/OUT (96 kHz capable), MIDI IN/OUT, 2x Analog OUT (6.3 mm jack TRS), Headphone OUT, Can...

  • Recording / Playback Channels: 16x2
  • Number of Mic Inputs: 8
  • Number of Instrument Inputs: 8
  • Headphone Outs: 1
  • Phantom power: Yes
  • Number of S/PDIF Connectors: 0
  • Number of ADAT Connectors: 2
  • Numer of AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI interface: Yes
  • Word Clock: No
  • Max. sample rate (kHz): 96 kHz
  • Max. resolution in bit: 24 bit
  • USB Bus-Powered: No
  • Incl. power supply: Yes
  • USB Version: 2.0
  • Width in mm: 483 mm
  • Depth in mm: 178 mm
  • Height in mm: 45 mm
  • Included in delivery: USB cable
  • Zero latency monitoring: Yes
M-Audio M-Track Hub
(45)
M-Audio M-Track Hub

Audio Interface 24-Bit / 48 kHz resolution (only playback / output), 2 Balanced outputs 6.3 mm jack, Large volume control, USB 2.0 hub for three separate USB MIDI devices, 6.3 mm Headphone output...

  • Recording / Playback Channels: 0x2
  • Number of Mic Inputs: 0
  • Number of Instrument Inputs: 0
  • Headphone Outs: 1
  • Phantom power: No
  • Number of S/PDIF Connectors: 0
  • Number of ADAT Connectors: 0
  • Numer of AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI interface: No
  • Word Clock: No
  • Max. sample rate (kHz): 48 kHz
  • Max. resolution in bit: 24 bit
  • USB Bus-Powered: Yes
  • Incl. power supply: Yes
  • USB Version: 2.0
  • Width in mm: 119 mm
  • Depth in mm: 107 mm
  • Height in mm: 70 mm
  • Included in delivery: USB cable
  • Zero latency monitoring: No
MOTU 896 Mk3 Hybrid
(55)
MOTU 896 Mk3 Hybrid
to the product
1.049 €

Recording System Built-in DSP effects (reverb, EQ and compressor), 8 Analog XLR inputs and outputs, Firewire and USB 2.0 interface, 48 V phantom power, 24 Bits / 44.1 / 48 / 88.2 / 96 and 192 kHz,...

  • Recording / Playback Channels: 28x30
  • Number of Mic Inputs: 8
  • Number of microphone inputs: 8
  • Number of Instrument Inputs: 0
  • Number of instrument inputs: 8
  • Headphone Outs: 2
  • Phantom power: Yes
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 2
  • Numer of AES/EBU Connectors: 1
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI interface: No
  • Word Clock: No
  • Max. sample rate (kHz): 192 kHz
  • Max. resolution in bit: 24 bit
  • Bus-Powered: No
  • USB Bus-Powered: No
  • Incl. power supply: Yes
  • USB Version: 2.0
  • Width in mm: 483 mm
  • Depth in mm: 178 mm
  • Height in mm: 88 mm
  • Included in delivery: USB cable, firewire cable, software
  • Zero latency monitoring: Yes
B-Stock from 399 € available
Free shipping incl. VAT
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Live Broadcast from our Departments
Our sales team will be happy to demonstrate any piece of equipment you want to see live from our store.
Visit department
Live Broadcast from our Departments
You have almost reached our store!
1. Browser
is compatible

This service is compatible with most web browsers. Should you encounter difficulties, you might try changing to Firefox or Chrome.

2. Mikrophone
no connection

In order for our representative to be able to hear you, you must have a microphone that your browser can access.

3. Security
is compatible

During your consultation we can hear you but not see you.

Live Broadcast from our Departments
What is this?
Using our Live Video Consulting service, you can visit our departments live and have us demonstrate any piece of equipment you want to see. You are perfectly free to ask questions of our representatives or give them instructions. And don't worry: we can hear, but not see you.
How can I use it?
Live Video Consulting is available for selected products. Whenever a sales representative is available, an icon which allows you to make us of the service will appear on the product page
How does that work?
You require a PC or Mac with a microphone and an up-to-date browser. It's best to use the current version of either Chrome or Firefox. Before initiating the connection, your browser will ask your permission to access your microphone.
Possible problems
We are still in the testing phase with this system, and our representatives are still finding out how to give you the best possible experience. Therefore, it may happen that we do not understand you (please speak clearly in either German or English only), that equipment is being tried out by other customers temporarily, or that there are problems with the connection. Please do not hesitate to give us feedback whenever anything like this happens, so that we may learn from this and improve our service.
Share this product
Your Contacts
Phone: +49-9546-9223-30
FAX: +49-9546-922328
Free test reports

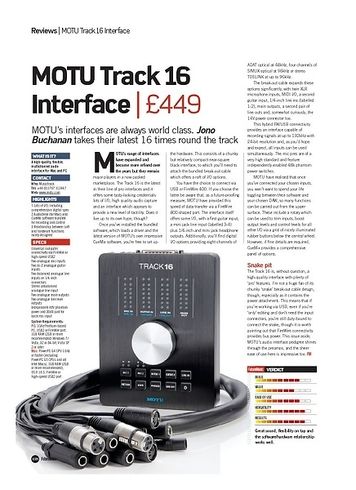

MusicRadar.com MOTU Track 16 Interface
MOTU Track 16 Interface
MusicRadar.com (12/2012)
Test Report





video
Motu Track16
2:18
Motu Track16
Rank #202 in USB Audio Interfaces





test results:
Offers include 24% Greek VAT and are valid as long as stocks last. Shipping costs to Greece are 20 EUR, free shipping on orders above 298 EUR. Please click here for international Shipping rates. We do not accept liability for typographical errors or inaccurate information of any kind. *RRP = manufacturer's / distributor's recommended retail price in Germany
LD Systems Mix 6 A G3 Neutrik NA2-IO-DLINE Harley Benton Talk Box Polyend & Dreadbox Medusa Avid Pro Tools Teacher and Student the t.bone HD 2000 NC Allen & Heath SQ-DANTE-A card Denon DN-300DH Sennheiser SK100 G4 E-Band RockNRoller R12Stealth (All-Terrain) Joyo JW-02 Wireless System Joyo JP-05 Power Bank Supply 5
Recommended
LD Systems Mix 6 A G3

Active 2-Way Loudspeaker With integrated 4-channel mixer, Loudspeakers: 6.5" woofer and 1" tweeter, Frequency range: 80 - 20,000 Hz, Internal Class D amplifier, Power: 2x 70 Watts RMS (2x 280 Watts peak), Maximum output level: 122 dB, Dispersion pattern:...

to the product
229 €
Recommended
Neutrik NA2-IO-DLINE

Neutrik NA2-IO-DLINE, Line I/O to Dante interface, designed for harsh stage conditions, breakout box which allows two, channels of audio to be integrated into a Dante network, converts a Dante stream into analog audio, signals, (!) requires Power over Ethernet...

to the product
275 €
(1)
Recommended
Harley Benton Talk Box

Effect for Electric Guitar and Keyboard The sound can be shaped by mouth, Gain, tone, output controls, Jack connections (6.3 mm), On-off switch with LED display, True bypass, Dimensions: 136 x 62 x 191 mm, Weight: 1.7 kg, The...

to the product
122 €
Recommended
Polyend & Dreadbox Medusa

Hybrid Synthesiser Includes Grid and Sequencer 3 Digital wavetable oscillators, 3 Synchronisable analogue oscillators, each with four classic waveforms, Classic 24dB dreadbox analogue filter with 3 different types (2-pole. LP, 4-pole. LP, HP), 5 Independent LFO's, Three different modes:...

to the product
1.019 €
Recommended
Avid Pro Tools Teacher and Student

Avid Pro Tools EDU Teacher and Student (Box); Audio MIDI Sequenzer (DAW); single license especially for teachers and students, not suitable for educational institutions!; eligibility guidelines can be found here: avid.com/education/eligibility; latest Pro Tools version delivered as Activation Card; perpetual...

to the product
299 €
Recommended
the t.bone HD 2000 NC

Noise Canceling Headphones Circumaural, Active Noise Canceling, Connection via Bluetooth (V 4.1), Up to 6 hours of operation with NC, Up to 10 m range, Impedance 32 ohms, Frequency range 20 - 20,000 Hz, 40 mm Driver, Max. SPL:...

to the product
61 €
Recommended
Allen & Heath SQ-DANTE-A card

Allen & Heath SQ-DANTE-A card, audio interface plug-in card for the SQ digital mixing series, 64×64 channel audio and control, 96kHz or 48kHz operation

to the product
719 €
Recommended
Denon DN-300DH

Denon DN-300DH, MW/UKW/DAB and digital tuner, 40 Station presets for each band, balanced XLR- and unbalanced RCA outputs, compact 1HE design

to the product
199 €
Recommended
Sennheiser SK100 G4 E-Band

Sennheiser SK100 G4 E-Band, pocket transmitter for EW100 systems, with charging contacts, E-Band frequency range 823 - 865 MHz, powered via 2x AA batteries or battery pack, 10 mW transmitted power

to the product
295 €
Recommended
RockNRoller R12Stealth (All-Terrain)

RockNRoller R12Stealth (All-Terrain), All Black Multi Cart, length 86cm - 132cm, Width (frame bed): 35cm, width (rear wheels): 50cm, height (folded): 31cm, height (unfolded): 106cm, stored front wheels: 8"x2" R-Trac, rear wheels: 10"x3" R-Trac, weight: 15kg, load capacity: 227kg

to the product
244 €
Recommended
Joyo JW-02 Wireless System

Digital Wireless Instrument System Transmission frequency: 5.8 GHz, 4 Channel transmitter & receiver, Built-in 3.7V / 500mAh lithium battery, Car anti-jamming, Battery status LED indicator, Frequency response: 20 Hz - 20 KHz, Delay: <7 ms, Sample rate: 24-Bit /...

to the product
99 €
(1)
Recommended
Joyo JP-05 Power Bank Supply 5

Powerbank for Effect Pedals Built-in 7.4V / 4400mAh lithium battery, Charging time: 2.5 h, Battery level indicator, 4 x DC 9V 100mA outputs, 3 x DC 9V 500mA outputs, 1 x DC 9V / 12V / 18V adjustable output...

to the product
70 €
Feedback Found an error or want to give us feedback about this page?

We're looking forward to hearing from you and aim to solve any problems as soon as we can.

Please leave a comment. Please enter your e-mail address.
