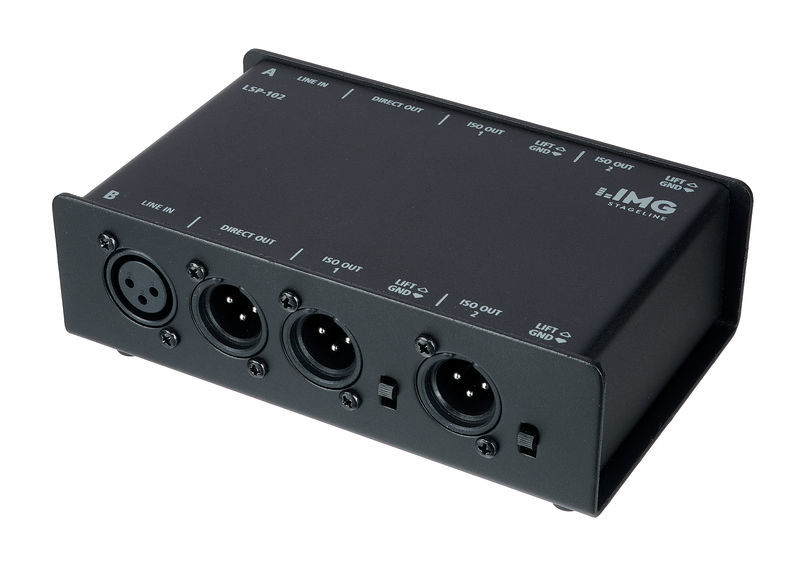

IMG Stageline LSP-102

2-Channel 3-Way Line Splitter

  • 2 Inputs/ 6 Outputs
  • For connecting one mixer with more than one power amplifier
  • Connectors: XLR female in, 2 galvanically isolated, balanced XLR outputs (600)
  • Groundlift switch per channel
  • Frequency range: 20 - 20,000 Hz
  • Robust metal housing
  • Dimensions: 160 x 55 x 105 mm
  • Weight: 980 g

Further information

Cable Tester No
Level Meter No
Speaker Tester No
Software No

Come up with your own creative bundle and save

If you order this product together with others as part of a bundle, you can save up to 8 % additionally!
IMG Stageline LSP-102 + LED Lenser P5 LED Torch Lamp 140 Lumen +
4 more
Configure bundle now
starting from 105 €

These are other customers' choices:

Customers who looked at this item have bought these:

IMG Stageline LSP-102
51% bought this exact product
IMG Stageline LSP-102
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
76 € Add to Basket
Millenium MCT-20
17% bought Millenium MCT-20 27 €
Millenium SML 21
5% bought Millenium SML 21 31 €
Millenium SG-1
5% bought Millenium SG-1 31 €
Superlux Pink Stick
5% bought Superlux Pink Stick 39 €
Our most popular Audiotools
35 customer ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.5 / 5.0
  • features
  • quality
Text ratings for this product are available in another language only so far
12 written ratings Read all reviews
fr Automatically translated (Show original)
frOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features

R quality passive audio splitter

Laurent354, 29.06.2011
This is the kind of tool that every sound engineer must have in his toolbox.
I use it regularly to distribute the amplifiers in multicast.
I reserve the direct outputs not passing through a transformer for the facade, and the outputs on transformer for the booster amplifiers.
The switches for floating mass on the transformer outputs make it possible to suppress the mass loops and the humming which accompanies it.
I have tested and I confirm that it is very effective.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features

Am actually content with the thing.

Stevan, 19.05.2014
I like the robust processing.
A decent weight comes from the housing and not from the 2 transmitters.
XLR sockets are made of plastic and screwed.

The LIFT GND switches are soldered only to the PCB and form the only weak point to be pushed into the housing during transport through a small pointed corner.
The housing also serves as a faraday cage and is not used as a conductive component, with screwed mini rubber feet, the splitter is non-slip.
Line A and B are completely separate from each other and stupidly mounted on the opposite side, which makes the compact crate in use as a tentacle grips three times as big.

The crate is also suitable as:
Mono 1 IN / 1 DIRECT OUT + 4 ISO OUT with LIFT GND, if 1 direct out is connected to the second in.
Did not measure the signals made. However, feel the ISO OUT's im heard as neutral.
As the cheapest LINE SPLITTER I could find, the price is OK.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
76 €
Incl. VAT; plus 20 € shipping
Free shipping from 298 €
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
