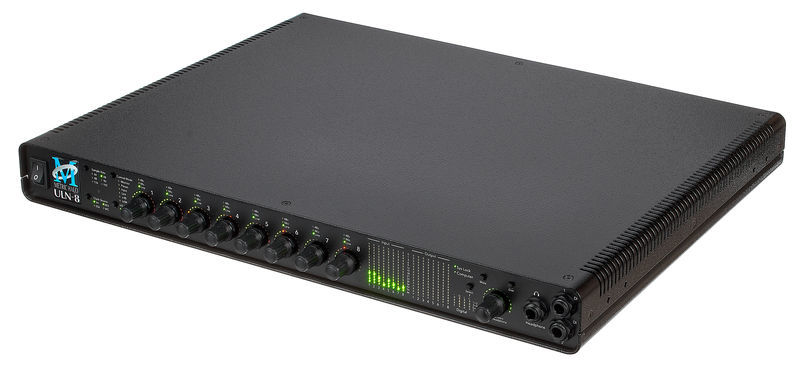

Metric Halo ULN-8 3D
USB-C Audio Interface
- 192 kHz converter
- 8 Ultra-low noise preamps
- MH-Link
- DSP license
- EdgeBus slot
- ANOC
- LED meter
- Phantom power +48 V
- Format: 19", 1U
- Dimensions (W x H x D): 423 x 44 x 330 mm
- Weight: 2.7 kg
- Includes rack ears and external power supply
Connections:
- 8 x Microphone input Sub-D25
- 2 x Hi-Z input 6.3 mm jack
- 8 x line input Sub-D25
- 8 x Line Output Sub-D25
- 8 x Send Sub-D25
- 2 x Monitor output 6.3 mm jack
- AES / EBU input and output Sub-D25
- MIDI input and output
- MH-Link
- SMPTE input and output
- Word Clock BNC input and output
- Stereo headphone output 6.3 mm jack
- USB-C
Further Information
| Recording / Playback Channels | 16x16 |
|---|---|
| Number of Mic Inputs | 8 |
| Number of Line Inputs | 8 |
| Number of Instrument Inputs | 2 |
| Number of Line Outs | 8 |
| Headphone Outs | 1 |
| Phantom power | Yes |
| Number of S/PDIF Connectors | 0 |
| Number of ADAT Connectors | 0 |
| Numer of AES/EBU Connectors | 1 |
| Number of MADI Connectors | 0 |
| Ethernet | 2 |
| Other Connectors | No |
| MIDI interface | Yes |
| Word Clock | 1xIn, 1xOut |
| Max. sample rate (kHz) | 192 kHz |
| Max. resolution in bit | 24 bit |
| USB Bus-Powered | No |
| Incl. power supply | Yes |
| USB Version | USB C |
| Width in mm | 423 mm |
| Depth in mm | 330 mm |
| Height in mm | 44 mm |
