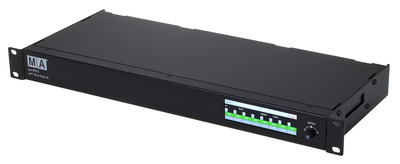

MA Lighting grandMA3 onPC 8Port Node 4k

Ethernet Interface

  • Switches in connection with grandMA3 onPC 4.096 parameters and offers eight DMX outputs
  • With 19 "/ 1 U housing the optimal size for touring and fixed installations
  • Dimensions: (WxDxH): 482 x 189 x 43 mm
  • Weight: approx. 2 kg

Note: A grandMA3 onPC system supports a maximum of 4096 parameters.

Technical specifications:

  • Parameter: 4.096 (HTP / LTP)
  • Parameter Mode2: 2.048 (HTP / LTP)
  • Supply voltage: 100-240 V / 50/60 Hz
  • Power: max. 15 VA

Connections:

  • Connector: 1x Power Twist TR1
  • 1 x etherCON / RJ45
  • 8 x DMX512-A Out (5-pin XLR female)
  • 1 x USB 2.0 (Type A)

Further Information

Type Ethernet-Interface
Type of construction 19"-housing
Connection for PC/Ethernet USB
Universes (Outputs) 8
DMX-Output 5-pole XLR female
DMX-Input through Output
RDM-capable Yes
Internal memory No
Show variations of this product
MA Lighting grandMA3 onPC 8Port Node 4k
MA Lighting grandMA3 onPC 8Port Node 4k
to the product
4.599 €

Ethernet Interface Switches in connection with grandMA3 onPC 4.096 parameters and offers eight DMX outputs, With 19 "/ 1 U housing the optimal size for touring and fixed installations, Dimensions:...

  • Type: Ethernet-Interface
  • Type of construction: 19"-housing
  • Connection for PC/Ethernet: USB
  • Universes (Outputs): 8
  • DMX-Output: 5-pole XLR female
  • DMX-Input: through Output
  • RDM-capable: Yes
  • Internal memory: No
MA Lighting grandMA3 onPC 2Port Node 2k
MA Lighting grandMA3 onPC 2Port Node 2k
to the product
1.666 €

Ethernet Interface Switches in connection with grandMA3 onPC 2.048 parameters and offers two frame-synchronous DMX outputs, Perfect addition to a grandMA3 onPC command wing and extends the number...

  • Type: Ethernet-Interface
  • Type of construction: Desktop
  • Connection for PC/Ethernet: USB
  • Universes (Outputs): 2
  • DMX-Output: 5-pole XLR female
  • DMX-Input: through Output
  • RDM-capable: Yes
  • Internal memory: No
MA Lighting grandMA3 2Port Node
MA Lighting grandMA3 2Port Node
to the product
1.199 €

2Port Node Converts network data to DMX, Synchronously outputs two DMX universes, Can be configured remotely via any grandMA3 console or an onPC workstation, All grandMA3 xPort Nodes (with the...

  • Type: Ethernet-Interface
  • Type of construction: Desktop
  • Connection for PC/Ethernet: RJ45
  • Universes (Outputs): 2
  • DMX-Output: 5-pole XLR female
  • DMX-Input: through Output
  • RDM-capable: Yes
  • Internal memory: No
MA Lighting grandMA3 onPC 4Port Node 4k
MA Lighting grandMA3 onPC 4Port Node 4k
to the product
3.390 €

Ethernet Interface Enables 4.096 parameters in conjunction with grandMA3 onPC and provides four frame-synchronous DMX outputs, With 8"/ 1U housing has the optimal size for touring and fixed...

  • Type: Ethernet-Interface
  • Type of construction: Desktop
  • Connection for PC/Ethernet: USB
  • Universes (Outputs): 4
  • DMX-Output: 5-pole XLR female
  • DMX-Input: through Output
  • RDM-capable: Yes
  • Internal memory: No
MA Lighting grandMA3 4Port Node
MA Lighting grandMA3 4Port Node
to the product
2.399 €

4Port Node Converts network data to DMX, Synchronously outputs four DMX universes, Can be configured remotely via any grandMA3 console or an onPC workstation, All grandMA3 xPort Nodes (with the...

  • Type: Ethernet-Interface
  • Type of construction: Desktop
  • Connection for PC/Ethernet: RJ45
  • Universes (Outputs): 4
  • DMX-Output: 5-pole XLR female
  • DMX-Input: through Output
  • RDM-capable: Yes
  • Internal memory: No
MA Lighting grandMA3 8Port Node
MA Lighting grandMA3 8Port Node
to the product
3.599 €

8Port Node Converts network data to DMX, Synchronously outputs eight DMX universes, Can be configured remotely via any grandMA3 console or an onPC workstation, All grandMA3 xPort Nodes (with the...

  • Type: Ethernet-Interface
  • Type of construction: Desktop
  • Connection for PC/Ethernet: RJ45
  • Universes (Outputs): 8
  • DMX-Output: 5-pole XLR female
  • DMX-Input: through Output
  • RDM-capable: Yes
  • Internal memory: No
4.599 €
