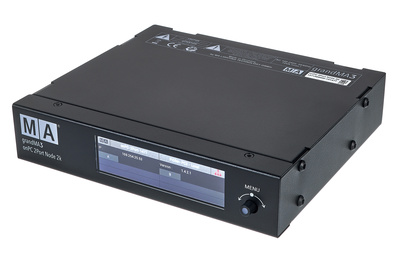

MA Lighting grandMA3 onPC 2Port Node 2k

Ethernet Interface

  • Switches in connection with grandMA3 onPC 2.048 parameters and offers two frame-synchronous DMX outputs
  • Perfect addition to a grandMA3 onPC command wing and extends the number of usable parameters to 4,096
  • With 8"/ 1 U housing the optimal size for touring and fixed installations
  • Dimensions: (WxDxH): 207 x 184 x 43 mm
  • Weight: approx. 1 kg

Note: A grandMA3 onPC system supports a maximum of 4096 parameters.

Technical specifications:

  • Parameters: 2,048 (HTP / LTP)
  • Parameter Mode2: 1.024 (HTP / LTP)
  • Supply voltage: 100-240 V / 50/60 Hz
  • Power: max. 10 VA

Connections:

  • Connector: 1x Power Twist TR1
  • 1x etherCON / RJ45
  • 2x DMX512-A Out (5-pin XLR female)
  • 1x USB 2.0 (Type A)

Further Information

Type Ethernet-Interface
Type of construction Desktop
Connection for PC/Ethernet USB
Universes (Outputs) 2
DMX-Output 5-pole XLR female
DMX-Input through Output
RDM-capable Yes
Internal memory No
