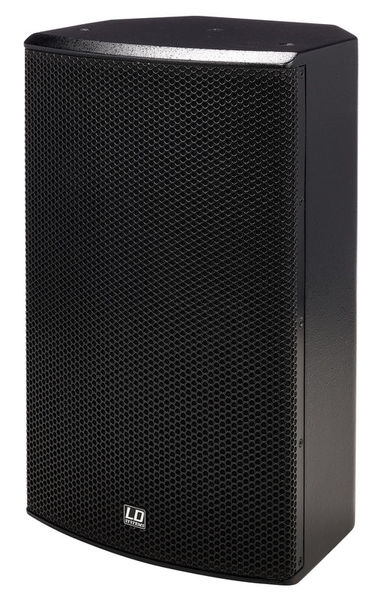

LD Systems SAT 122 G2

Passive Multifunctional Loudspeaker
- For installation and stage applications
- Equipped with: 12" woofer and 1" tweeter
- Dispersion pattern: 80° x 60°
- Frequency range: 60 - 19,000 Hz
- Sound pressure level: 121 dB
- Rated power: 250 W/500 W
- Impedance: 8 Ohms
- Terminal block and speaker twist connection
- 15 mm MDF housing
- 4x M8, 4x M6 and 2x M10 fly points
- Dimensions: 350 x 580 x 310 mm
- Weight 16.3 kg
- Colour: Black
- Optional truss and swivel brackets available
Further Information
Weight | 16,3 kg |
---|---|
Type | Standard |
Monitor shape | No |
Colour | Black |
LF Woofer | 12" |
Number of Woofers | 1 |
RMS Power | 250 W |
Impedance | 8 Ohms |
