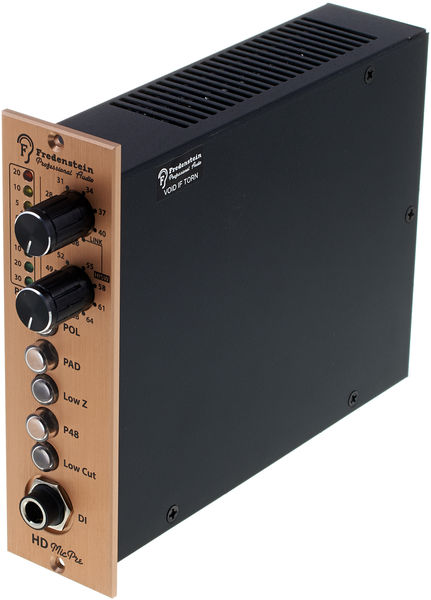

Fredenstein HD MicPre
1-Channel Microphone Preamp 500th Module
- Completely symmetrical analog discrete signal path
- Class A amplifier with 58 transistors without feedback (no negative feedback)
- Frequency response from 12 Hz to 700 KHz (+/- 1 dB), 7 Hz - 917 KHz (-3dB)
- No phase shifts
- High output slew rate of 30V per microsecond
- 8-Level LE display
- +48 V phantom power
- Switchable 60 Hz high-pass filter
- Gain selectable in 3 dB steps from 22 dB to 64 dB
- Pad switch (-20 dB)
- Output Impedance: 600 Ohm
- Hi-Z input: 6.3 mm jack on the front
- Model: Module 500
|48 V Phantom power||Yes|
