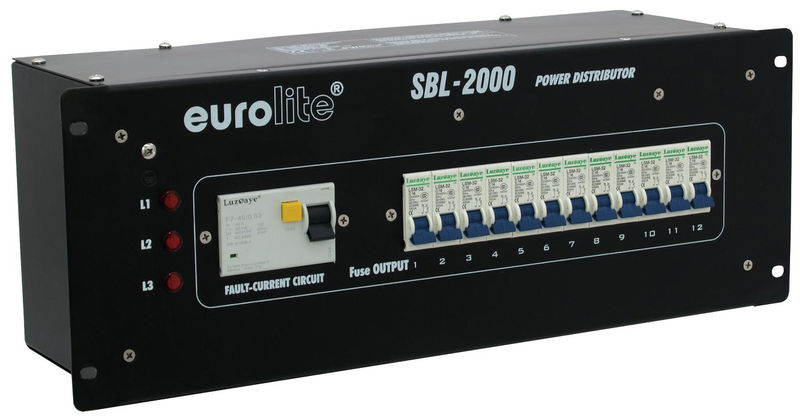

Eurolite SBL-2000 19" Power distributor
32A Power Distributor in 19" Housing
- 12x 2-Pole circuit breakers (16 A - also separates the neutral conductor)
- Particularly suitable for setting up large high load distributions
- Only 4 U are required for rack mounting
- 32A Three-phase current input via 5-pin CEE device mounting plug
- 2x 16-Pin multi-coupling output
- The entire distributor is protected by a 30 mA residual current circuit breaker (RCD).
- Indicator lights for the presence of each individual phase
- With earthing screw to ground a rig if necessary
- Power supply: 380-400 V AC, 50 Hz ~
- Maximum total power: 22080 W
- Maximum total power/phase: 7360 W
- Maximum rated current/phase: 32 A
- Maximum nominal power/channel (multipin): 3680 W
- Maximum rated current/channel (multipin): 16 A
- Fuses: 12x 16 A 1 Ph
- FI/RCD 40A/0.03A
- Height: 4 U
- Dimensions (LxWxH): 482 x 210 x 176 mm
- Weight: 6 kg
|Other Connectors||16-pol. Connection|
|Fuse(s)||12x LS C16A|
|Mounting height||4 U|
|sales rank in this product group||33|
|sales unit||1 piece|
|available since||August 2014|
