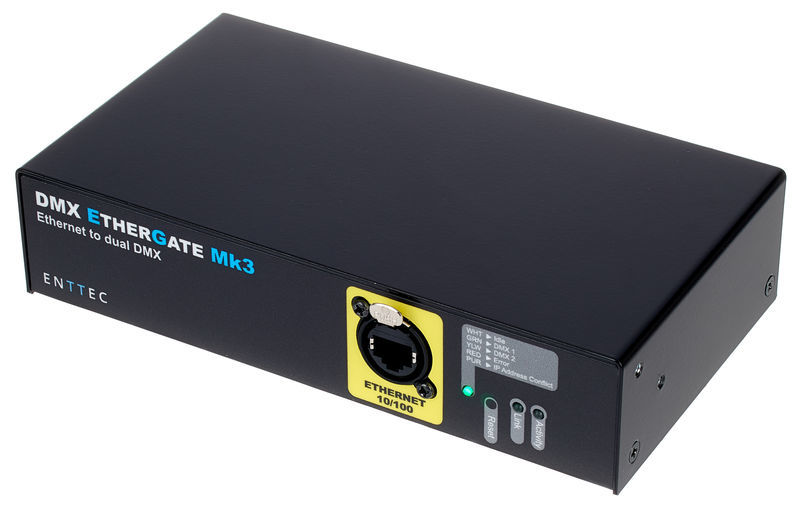

Enttec Ethergate Mk3

Ethernet interface on two DMX ports

  • These can be used either as two DMX inputs, as two DMX outputs or as one DMX input and one DMX output
  • Web-based configuration
  • Supports Art-Net 1/2/3, streaming ACN sACN and ESP
  • Supports either LTP or HTP merging of two signal sources
  • Supports RDM over Art-Net
  • 2x DMX 5-pin XLR female
  • 1x RJ45 Ethercon (10/100)
  • 1x IEC input
  • Input voltage: 90- 260 V AC 50/60 Hz
  • Dimensions: 191 x 105 x 44.5 mm
  • Weight: 0.75 kg

Further Information

Type Ethernet-Interface
Type of construction Desktop
Connection for PC/Ethernet RJ45
Universes (Outputs) 2
DMX-Output 5-pole XLR female
DMX-Input 5-pole XLR female
RDM-capable Yes
Internal memory No

These are other customers' choices:

Customers who looked at this item have bought these:

Enttec Ethergate Mk3
32% bought this exact product
Enttec Ethergate Mk3
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
518 € Add to Basket
Enttec ODE Mk2
17% bought Enttec ODE Mk2 199 €
Showtec NET-2/3 Pocket
12% bought Showtec NET-2/3 Pocket 166 €
Showtec NET-2/5 Pocket
12% bought Showtec NET-2/5 Pocket 149 €
Enttec DMX USB Pro MK2 Interface
9% bought Enttec DMX USB Pro MK2 Interface 168 €
Our most popular Lighting Interfaces and Nodes
1 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4 /5
  • features
  • quality
Text ratings for this product are available in another language only so far
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
features
quality
Zufriedenstellendes Produkt
philippkaiser00, 20.05.2019
Ich nutze das Ethergate als sACN Netzwerk-Node, jedoch wird ebenfalls Art-Net und ESP unterstützt.
Die robuste Verarbeitung und die einfache Konfiguration über ein Webinterface sorgen für ein entspanntes Arbeiten.
Somit lassen sich die beiden XLR Ausgänge schnell und einfach separat sowohl als In- oder Output konfigurieren.
Das Produkt ist somit schnell einsatzfähig.
Leider setzt Enttec bei diesem Produkt nicht auf die hochwertigen XLR-Stecker der Firma Neutrik, welche das Ethergate Mk3 hochwertiger wirken lassen würden.
Leider sind auch keine 19"-Rackwinkel enthalten, welche für ca. 50 Euro separat zu erwerben sind. Es empfiehlt sich trotzdem ein Case anzuschaffen, damit das Ethergate auch auf lange Zeit roadfähig bleibt.
Rundum erhält man für den Preis ein hochwertiges Produkt.
