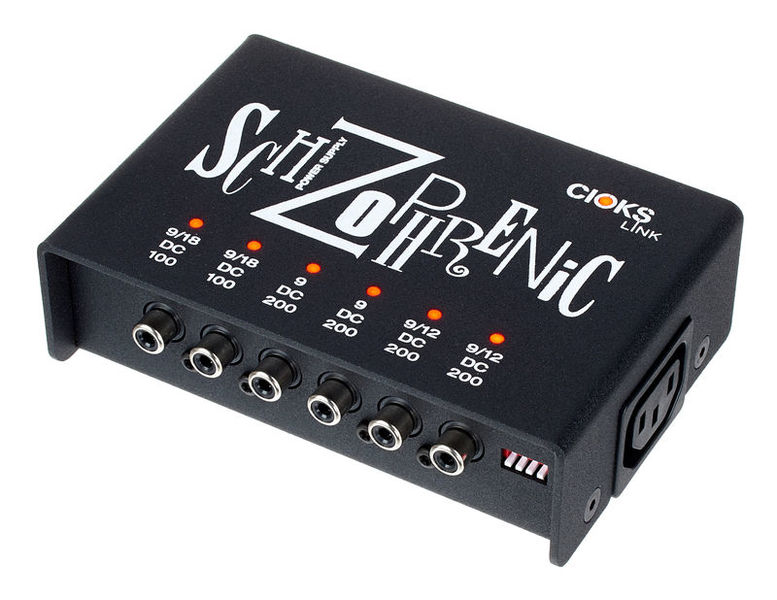

Cioks Schizophrenic Link

Power supply for effect devices

  • Multi output 1000 mA
  • 6 Connections with 9, 12 or 18 V
  • Output 1-2: 9 or 18V DC / 100 mA
  • Output 3-4: 9 V DC / 200 mA
  • Output 5 -6: 9 or 12 V DC / 200 mA
  • The unique position of the courtesy outlet and the AC mains input allows you to link two or more units together by means of an adapter. In this way you can power two or three power supplies just with one single mains power cord.
  • Detachable power cable
  • Durable 2 mm stainless steel case
  • Including montage kit for pedal boards
  • Including flex cables (3x1030, 2x1050, 1x1080, 1x2050, 1x5050, 1x6050)
  • Size: 130 x 88 x 39 mm
  • Weight: 1 kg

Further Information

DC/AC current DC
Output current in mA 1000 mA
9 V Yes
12 V Yes
18 V Yes
Secondary voltage No
Multi-output power supply Yes
56 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 /5
  • quality
Total
quality
Heavy Duty
The Yak, 03.04.2016
I use 3 or 4 pedals in my guitar set-up including a vintage analog delay which needs 18v and a couple of old Boss pedals which want 12v. So I was looking for a relatively compact but flexible power supply to build a pedal board around.

I shopped around quite a bit and settled on the Cioks partly because it is completely self contained. Kettle lead into the unit and done. I could not believe how many of he competitor products needed an external power supply to power the power supply! Is it just me or is that screwed up?

When the unit arrived I was immediately surprised at how heavy it was. It's built like a tank and the design seems very roadworthy.

And it works like a dream! All my strange power requirements are taken care of and my signal chain sounds very clean. I have heard no hisses, hums, pops or anything else that could be power related.

One doubt I had about was that the standard 'barrel to barrel' cables could not be used on the Cioks. However the RCA plugs look very neat and seem to hold better in the unit than the barrel ones. Also there were way more cables supplied in the box than I will ever need.

I would recommend Cioks to anyone looking for a professional quality power supply for the road. A great product.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Very pleased with this
ottimo_massimo, 23.02.2021
It's built like a tank! I bought this to cover a couple of scenarios in terms of polarity and voltage draw. It has not disappointed. It's solved a couple of issues for pedals which previously ran a little noisy. It also comes with an array of patch cables which is very helpful indeed.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Excellent power source
JardaP, 10.02.2018
Lots of juice for my pedalboard. No noise, compact size, fits well underneath the Harley Benton Space Ship 40. Great product.

Great service provided by Thomann.

On the other hand, customer service of Cioks is terrible. Hey, Cioks guys. Why you don?t respond (potential) customer?s queries? Tried two times through your web page.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
NOS for pedals
ardanoviz, 31.07.2018
I've tried several power supplies through the years. I generally work with huge pedalboards: the total current draw and the background noise have always been a problem.
The I discovered Cioks, I bought several of them and every issue has suddenly disappeared.
In particular, I use the Schizophrenic linked with a Cioks/Eventide Powerfactor 2 because I need up to 3.1 A of peak current.
The construction is extremely solid and sturdy and the RCA connectors are perfect (just a little more tricky if you need to solder your power cable by yourself, but nothing complicate...).
The fuse socket is easy accessible.
Led monitoring works perfectly and it's really useful.
Moreover, and most important, the outs are INDIVIDUALLY insulated: this is really important specially if you connect several pedals to a single out.
Go for it if you have some ground problems.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
139 €
Including VAT; Excluding 20 € shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Delivery approx. between Tuesday, 16.03. and Wednesday, 17.03.
