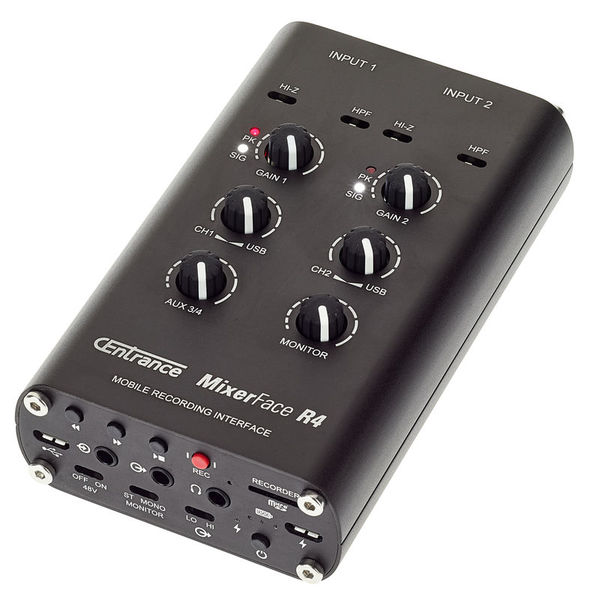

Centrance MixerFace R4R

Mobile Audio Recorder and Audio Interface

  • Recording on microSD card (max 512 GB)
  • 4 Drive buttons and status LED
  • 2-Channel audio interface for PC, Mac and iOS and Android devices
  • Battery operation up to 8 hours
  • High-quality digital converters with max. 24-bit / 192 kHz resolution
  • 2 Ultra-low-noise microphone preamps with 48 V phantom power and high-pass filter: XLR / TRS combo socket
  • Hi-Z instrument input per channel
  • Adjustable stereo aux input: 3.5 mm jack
  • Symmetrical monitor output: 2x 3.5 mm TRS jack
  • Headphone output: 3.5 mm TRS jack
  • 2 Micro USB ports: 1x Data transfer, 1x charging
  • High-quality and robust aluminium housing
  • Stand socket/thread: 1/4"
  • Dimensions (T x W x H): 121 x 70 x 36 mm
  • Included in delivery: USB cable, carrying case

Further Information

Recording / Playback Channels 2x2
Number of Mic Inputs 2
Number of Line Inputs 2
Number of Instrument Inputs 2
Number of Line Outs 2
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors USB
MIDI interface No
Word Clock No
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered Yes
Incl. power supply No
USB Version 2.0
Width in mm 70 mm
Depth in mm 121 mm
Height in mm 36 mm
5 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
3.8 /5
  • handling
  • features
  • sound
  • quality
Total
quality
features
handling
sound
Excellent preamps
suhrawardi, 06.07.2020
This recorder is not like many others. It doesn't have a lot of features, and it's interface is very minimal as well.
But, it has really excellent low noise pre-amps! The sound quality is very good for it's price tag.
And it's very small.

I mainly use it for field recording with 2 mics which use phantom power. So I don't change the settings that often. I also don't change the input levels a lot. And although it doesn't have a meter to show the levels, it so far always worked out very well for me.

The battery does last me a few hours. But I don't like the fact that I cannot seem to change it's internal battery.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
Pepepepe, 31.01.2021
I love my R4R, i am use it as an audio interface and as a stand alone recorder,
its great in both applications. ... totally recommend :-)
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
gute Preamps sind nicht alles
kalle09, 21.02.2020
Das Gute zuerst: die Preamps sind wirklich gut, so wie in vielen Kritiken geschrieben wird. Ich habe das MixerFace mit einem Focusrite Scarlett und einem Tascam Dr40 Recorder verglichen und kann sagen, dass es wirklich viel Pegel bei wenig Rauschen hat.

Die Verarbeitung wirkt sehr solide. Allerdings sind relativ viele Schalter so im Gehäuse versenkt, dass sie nicht von Hand bedient werden können. Dafür wird allen Ernstes eine Büroklammer zum Aufbiegen mitgeliefert. Das finde ich eines 450€ Interfaces eher unwürdig. Die oben liegenden Knöpfe funktionieren natürlich alle, aber eine Freude ist die Bedienung nicht, da das Feedback fehlt. Nächstes Manko bei den Features: Alle Audio Ausgänge sind Mini Klinken. Das mag für den Anschluß von Studiomonitoren noch funktionieren, aber falls man vor hat, ein paar Aufnahmen in einer Performance Situation live abzuspielen, dann braucht es noch ein anderes Interface, da Miniklinken für den Bühnenbetrieb meistens nicht passen. Na gut, es steht ja auch Recording Interface drauf und nicht Performance.
Nächste Schwachstelle: Der Akku ist ein fest verbauter. Über einen Austausch habe ich nichts gefunden, so dass ich mich frage, was man mit dem ganzen Gerät macht, wenn der Akku in ein paar Jahren aufgibt. Die wirkliche Arbeitszeit habe ich nicht getestet. Ich habe binnen einer Stunde die SD Karte formaiert, ein gutes Dutzend Aufnahmen von eingien Sekunden Länge gemacht und danach das Gerät zum Entnehmen der Speicherkarte an- und ausgeschaltet. Das hat 25% das Akkus verbraucht, sodass ich Zweifel habe, dass der Akku ein zweistündiges Konzert ohen Nachladen schafft. Warum keine austauschbaren AA Batterien? Damit wären wir beim nächsten Schwachpunkt: die USB Anschlüsse sind alle Micro USB. Für Outdoor Equipment hätte es etwas stabileres sein können. Ich werde sicher nicht mit Powerbank, Tablet und zwei Micro USB Kabeln zum Field Recording in die Wildnis aufbrechen.
Der ausschlaggebende Punkt, warum ich es zurück schicke ist jedoch, dass des Recording auf die SD Karte nur in Stereo bei 48.000 Hz Samplungrate möglich ist. Auf meine Frage, wie ich einen Mono Klang mit einem Mono Mikrofon im Monoformat aufnehmen kann, schrieb der Support, dass könne ich ja in der Postproduktion machen. Falls es technisch möglich ist, aber ich finde es sinnlos und hätte sicher leicht anders eingerichetet werden können. Der Webseite und den Tutorials nach ging es hier beim Entwickeln eher um Kameraton als um Fieldrecording oder Sounddesign. Mal ehrlich: braucht es gute Vorverstärker für eine Facebook Live Session? Interessant übrigens, dass es dann doch einen Schalter für Hi-Z gibt, damit Gitarre direkt aufgenommen werden kann - in Stereo...

Fazit: baut um die eigentich sehr guten Preamps bei Version 2 einfach oben und an der Seite 1 cm mehr Gehäuse dran, damit 6,3mm und USB A Stecker Platz haben, fügt schnelle Treiber hinzu, ersetzt den Akku durch ein Batteriefach und lasst den Benutzer beim Aufnehmen auf die SD Karte das Format selbst entscheiden. Dann habt ihr ein Interface was wirklich in ganz vielen Situationen einsetzbar ist kann und die 450€ sind völlig angemessen. So ist das Mixerface R4R ein Sammelsurium aus Kompromissen, die zumindest mir gar nichts nützen.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
Treiber verliert bei win10 das Mikrodevice
thom1948, 08.11.2019
Trotz support vom Hersteller nicht gelöst.
Schade,
das Konzept hat was, aber funktioniert nicht.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
