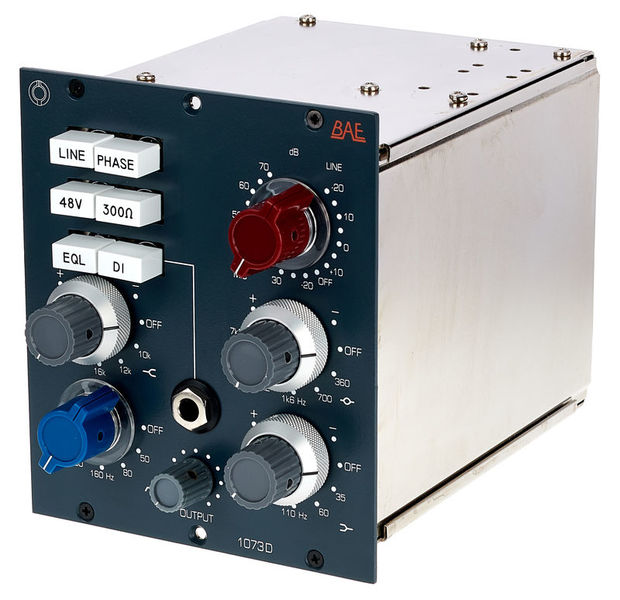

BAE Audio 1073D
500 Series Microphone Preamplifier Module with EQ
- Frequency range: 10 to 55000 Hz (-3dB): 2 band Equaliser
- HF: +/-16dB (shelving), selectable frequencies 10 / 12 / 16 kHz
- MF: +/-18dB, set Q-Faktor, selectable frequencies 0.36 / 0.7 / 1.6 / 3.2 / 4.8 / 7.2 kHz
- LF: +/-16dB, selectable frequencies 35 / 60 / 110 / 220 Hz (shelving)
- High Pass Filter: 50 / 80 / 160 / 300 Hz selectable
- Mic input impedance: 1200/300 Ohm
- DI input impedance: 150 kOhm
- Line input impedance: 10 kOhm
- Output impedance: 35 Ohm
- Maximum output level: +27.4 dBu @ 600 Ohm
- Gain: 0 to 70 dB
- Equivalent input noise: -110 dBu (unweighted)
- 48 V Phantom power
- Phase reversal
- Design: API Series 500 format (two slots)
|48 V Phantom power||Yes|
