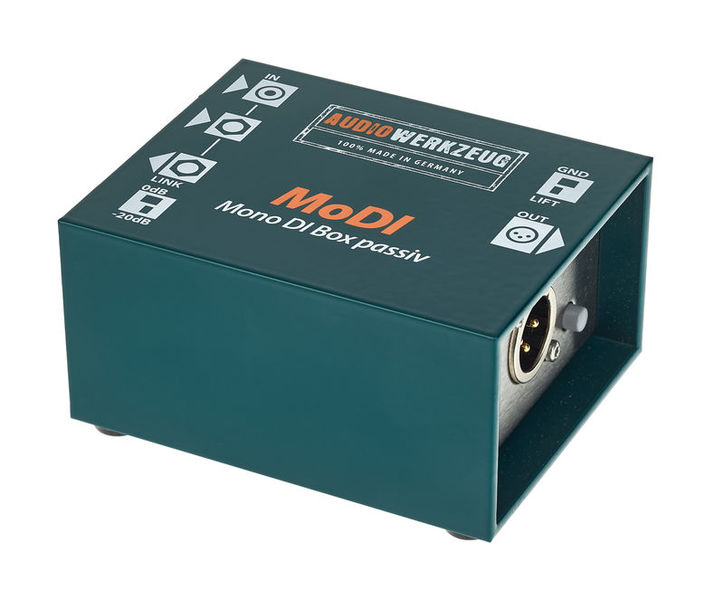

Audiowerkzeug MoDi

Passive Mono Channel DI box

  • For balancing and adjusting unbalanced instruments and devices
  • High-quality high-end transformers
  • High bandwidth and maximum insulation
  • Very good output balanced
  • High level strength
  • Antimagnetic shielding
  • Robust aluminum housing
  • Transmission ratio: 10: 1
  • Inputs: 6.3 mm jack and RCA
  • Outputs: 6.3 mm jack Link Out, XLR balanced
  • Frequency response: 10 Hz - 30 kHz +/- 3 dB at +20 dB input level, 15 Hz - 30 kHz +/- 3 dB at +30 dB input level Relative to 2.2 kOhm terminating resistor and 3.3 nF load (= 50 m multicore)
  • Insulation capacity of the transformer: 1,500 VAC at 50 Hz 1min
  • Output balance ccording to IEC:> 120 dB at 50 Hz,> 90 dB at 10 kHz
  • Dimensions (W x H x T): 80 x 50 x 100 mm
  • Weight: 470 g
  • Handmade in Germany

Further Information

Multi-Channel Unit No
Active / Passive Passive
19" No
Pad switchable Yes
Gnd/Lift switchable Yes
Powered by battery No
Speaker Simulation No
4 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.5 / 5.0
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
2 written ratings
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
features
sound
quality
Can someone seriously describe the sound of a DI box?
Sanwood Thilo, 22.11.2013
If he can do that, then the DI box can be really just crap.
After all, a DI is distinguished by the fact that you do not hear how it works. This is exactly the same as with a digital-to-analog converter. This is exactly the same. You hear nothing! Better said nothing but the signal. The same is symmetrized unadulterated. At inputs and outputs everything is as it should be. Small addition is the chinch input jack.

Small trigger due to glued feet. They like to go lost and do not really hold.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Automatically translated (Show original)
frOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
features
sound
quality
Compact passive di?
18.02.2016
Excellent value for this di passive.
Cinch input very practical (always easier to find a cinch / mini jack to connect a pod or other) ...
The sound is rather neutral. The tonal balance is respected.
The dynamics are good. It does not excite the high and does not bass the bass like other di.
In short a good product, especially at this price! By comparing them with radial Jdi, they really do not have to blush. And with a bssAR133, it does not even have a match! Your bass or your favorite synth will thank you ...
It has quite small dimensions which is convenient when transported.
The less (because perfection does not exist). The construction a bit "homemade". Nothing to say about connectivity (neutrik). For the switches, we will talk about it in 3 or 4 years ... But it remains largely satisfactory.
The name! When you are asked "what is your ID?" "Audiowerkzeug!" "What ????" But this is a detail ...;)
To conclude, an ID recommended without hesitation, bass, synthe analog, BAR, everything suits him. I have not been disappointed yet. They follow me in studio and live everywhere for 6 months.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
111 €
Including VAT; Excluding 20 € shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
