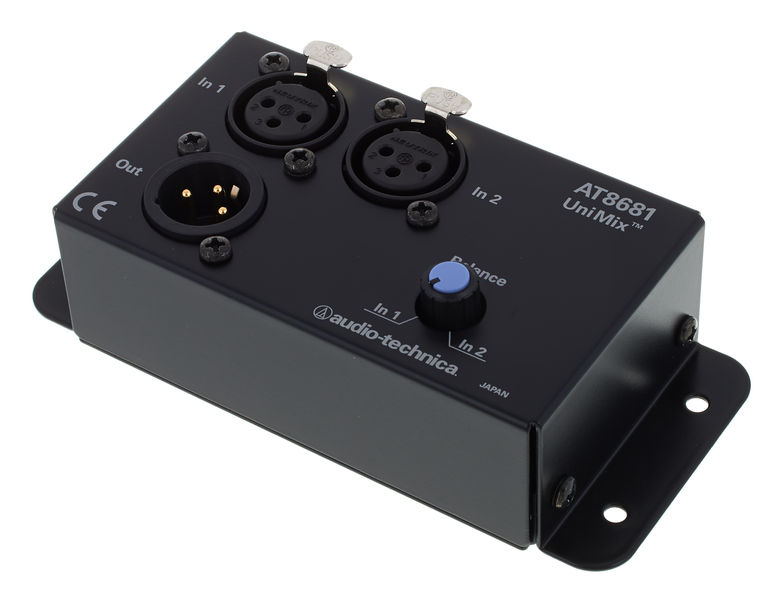

Audio-Technica AT8681

Unimix Microphone Mixer

  • Combines 2 microphone signals to one output
  • Balance control for mixing the two microphones
  • 2 Inputs: XLR female
  • 1 Output: XLR male
  • Requires 24 - 48 Volt phantom power and also passes it on to the microphones
  • Robust screw-mountable metal housing
  • Dimensions: 130 mm x 60 x 44 mm

Further Information

Parallel usable Channels 2
Mic Ins 2
Stereo Ins 0
Master Out XLR
Number of Pre Aux max. 0
PC Interface No
Multitrack Recording No
USB/SD Direkt Record No
PFL No
Effect Processor 0
USB Play No
Bluetooth Play No
Matrix Mixer No
Zones 0
19" Rackmount No

These are other customers' choices:

Customers who looked at this item have bought these:

Audio-Technica AT8681
28% bought this exact product
Audio-Technica AT8681
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
90 € Add to Basket
Mackie 402 VLZ4
8% bought Mackie 402 VLZ4 98 €
Behringer Xenyx QX1002USB
7% bought Behringer Xenyx QX1002USB 92 €
Behringer Xenyx 802
6% bought Behringer Xenyx 802 55 €
Rolls MX 41b
5% bought Rolls MX 41b 90 €
Our most popular Analogue mixers
19 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.7 /5
  • handling
  • features
  • sound
  • quality
Total
Works as intended
21.11.2016
Very good sound, i use it with an AER compact mobile. Compared to single channel operation(without the at8681)i do not hear any difference in sound quality.

Two minor points i didn't really like: the two unplug protectors are more trouble than help in my opinion.... they don't look that robust. Second, i'd like to have the possibility to NOT send phantom power to the mics. But i think it's the only very little mic mixer in the market giving a good sound without costing 400 euro or more!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
sehr solide
16.09.2014
Nutze den Voiceplay Live GTX für Live-Sessions mit Git+Vocs, in einem Minimalset-up (Stereo-out vom GTX an meine zwei RCF 310A). Wenn eine Sängerin noch mitsingt, benutze den AT um live zwei Mikros vor dem GTX zusammenzuführen - klappt prima, wir kommen dann ohne Mischer aus. Das AT wird von der Phantomspeisung des GTX versorgt. Da das Mikro meiner Sängerin etwas leiser ist, pegel ich die Balance des AT etwas zu ihr, dadurch wird die Gesamtlautstärke leiser und ich muss die Eingangsempfindlichkeit im GTX logischerweise höher drehen. Es funktioniert und ich kann keinerlei Einfluss auf den Klang feststellen. Mir ist nur aufgefallen, dass im AT eine Platine fest mit dem Bodenblech verklebt ist, wodurch die Eingangs- und Ausgangsbuchsen nicht gedreht werden können. Ich benutze Winkelstecker am Mikrokabel um optisch an meinem Pedaltrain nichts zu hoch aufragen zu lassen, daher wäre es das Tüpfelchen auf dem i wenn die Ausrichtung der Stecker im AT verändert werden könnte.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
nl Automatically translated (Show original)
nlOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
Uistekende XLR microfoonmixer
HeBo, 26.04.2019
Deze mixer al 5 jaar in gebruik om 2 XLR microfoons naar 1 kanaal te brengen. De mixer zit in een geluidsinstallatie van een kerk. De balansregeling voldoet prima.
Sterk aanbevolen microfoonmixer.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Automatically translated (Show original)
frOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
Petit mélangeur passif unique et pratique
Christophe6744, 08.01.2020
Pratiquement unique sur le marché et de très bonne facture, ce petit mixeur passif me permet de brancher deux micros sur un seul préampli mono, avec la possibilité de régler les niveaux relatifs entre les deux.
Très pratique sur scène pour les petites configs avec peu d'entrées préamp disponible. Utilisé notamment sur prise congas en live.
Entièrement passif, la qualité sonore est au rdv (à condition d'utiliser un préampli micro à la hauteur!), et la qualité de fabrication est très bonne, pour un prix acceptable.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
90 €
