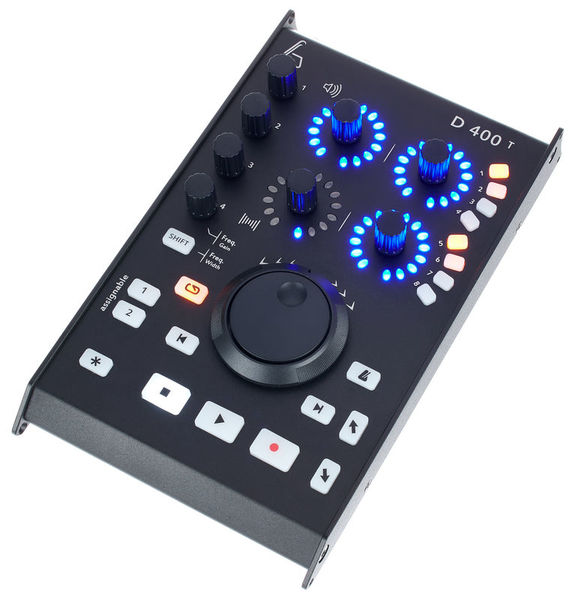

Asparion D400T

DAW Controller

• Base unit of the D400 system
• Universally applicable user interface for all common recording programs
• Control transport functions
• High-resolution jog-shuttle wheel
• 2 Programmable buttons
• 4 Freely programmable encoders with LED ring
• 4 Encoders for EQ control
• Can be extended with up to 8 D400Fs (article no. 458511, not included)
• Supported protocols: Mackie Control, HUI, MIDI
• Supported operating systems: Windows Vista or later, Linux, Mac OS X.
• Computer connection via USB-B port
• USB Powered
• 2x 6.3 mm inputs for expression and sustain pedal
• Programmable via "Asparion Configurator Software"
• Solid metal housing
• Dimensions: 238 x 137 x 33 mm
