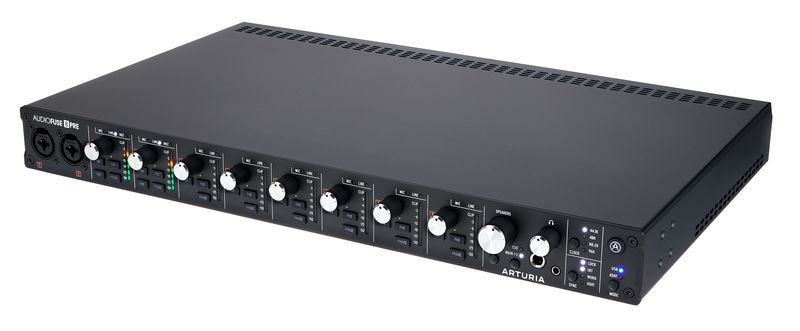

Arturia AudioFuse 8Pre
USB 2.0 Audio Interface
- Use as stand-alone AD/DA converter possible
- 24-Bit / 192 kHz
- 16 inputs and outputs
- 8 Mic / Line input (XLR / TRS combo jack)
- Inputs 1 & 2 switchable for instruments
- Inserts for inputs 1 & 2: 6.3 mm TRS
- 10 Line outputs: 6.3 mm Jack
- Stereo headphone output: 3.5 mm and 6.3 mm Jack
- Word Clock In / Out : BNC
- 2 ADAT In / Out for maximum 8 channels @ 96 kHz Sampling Rate
- USB-C socket
- Cascadable with further AudioFuse 8Pre
- 90° Rotatable rack ears for desktop use
- Supports USB 2.0
- Compatible with Windows and Mac OS X
- Housing: 19" / 1 HE
- Includes power supply
Further Information
| Recording / Playback Channels | 16x16 |
|---|---|
| Number of Mic Inputs | 8 |
| Number of Line Inputs | 8 |
| Number of Instrument Inputs | 2 |
| Number of Line Outs | 10 |
| Headphone Outs | 2 |
| Phantom power | Yes |
| Number of S/PDIF Connectors | 0 |
| Number of ADAT Connectors | 2 |
| Numer of AES/EBU Connectors | 0 |
| Number of MADI Connectors | 0 |
| Ethernet | 0 |
| Other Connectors | USB |
| MIDI interface | No |
| Word Clock | 1xIn, 1xOut |
| Max. sample rate (kHz) | 192 kHz |
| Max. resolution in bit | 24 bit |
| USB Bus-Powered | No |
| Incl. power supply | Yes |
| USB Version | USB C |
