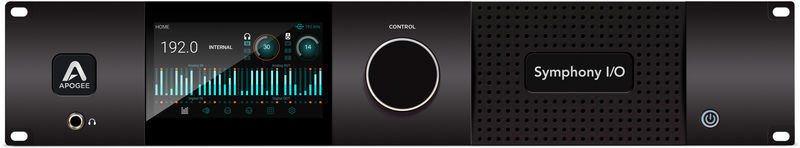

Apogee Symphony I/O Mk2 TB 8x8

Modular Audio Recording Interface

  • Chassis including I / O module 8 x 8: 8 x 8 analog I / O 8 × 8 AES / Optical I / O Mk II
  • 1 Module slot for optional input / output modules
  • 1 Module slot for optional system expansion (e.g. ProTools HD)
  • Dual multi-function encoder
  • Intuitive user interface with touch display
  • 1 Independent headphone output
  • Stand-alone functionality
  • 2 Thunderbolt connections
  • Downward compatible with all I / O modules from the first generation symphony
  • Compatibility: Thunderbolt Mac OS 10.9.5 and higher
  • Format: 19 "/ 2U
  • Dimensions: 450 x 292 x 89 mm

Further Information

Recording / Playback Channels 18x20
Number of Mic Inputs 0
Number of Line Inputs 8
Number of Instrument Inputs 0
Number of Line Outputs 8
Headphone Outs 1
Phantom Power No
Number of S/PDIF Connectors 1
Number of ADAT Connectors 2
AES/EBU Connectors 4
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI Connectors No
Word Clock 1xIn, 1xOut
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver No
Thunderbolt Version 2
Width in mm 450 mm
Depth in mm 292 mm
Height in mm 89 mm
