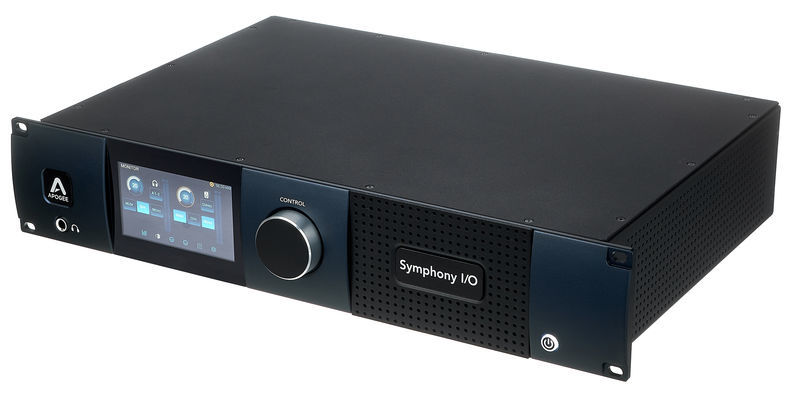

Apogee Symphony I/O Mk2 TB 24x24

Modular Audio Recording Interface

  • Chassis including 2 I / O modules
  • Module 1: 8 x 8 analog I / O 8 x ​​8 AES / Optical I / O (Mk II)
  • Module 2: 16 x 16 analog I / O (Mk II)
  • 1 Module slot for optional system expansion (eg ProTools HD)
  • Dual multi-function encoder
  • Intuitive user interface with touch display
  • 1 Independent headphone output
  • Stand-alone functionality
  • 2 Thunderbolt connections
  • Downward compatible with all I / O modules from the first generation symphony
  • Compatibility: Thunderbolt Mac OS 10.9.5 and higher
  • Format: 19 "/ 2U
  • Dimensions: 450 x 292 x 89 mm

Further Information

Recording / Playback Channels 36x38
Number of Mic Inputs 0
Number of Line Inputs 24
Number of Instrument Inputs 0
Number of Line Outputs 24
Headphone Outs 1
Phantom Power No
Number of S/PDIF Connectors 2
Number of ADAT Connectors 2
AES/EBU Connectors 4
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI Connectors No
Word Clock 1xIn, 1xOut
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver No
Thunderbolt Version 2
Width in mm 450 mm
Depth in mm 292 mm
Height in mm 89 mm
Show variations of this product
Apogee Symphony I/O Mk2 TB 24x24
Apogee Symphony I/O Mk2 TB 24x24
to the product
6.999 €

Modular Audio Recording Interface Chassis including 2 I / O modules, Module 1: 8 x 8 analog I / O 8 x ​​8 AES / Optical I / O (Mk II), Module 2: 16 x 16 analog I / O (Mk II), 1 Module slot for...

  • Recording / Playback Channels: 36x38
  • Number of Mic Inputs: 0
  • Number of Line Inputs: 24
  • Number of Instrument Inputs: 0
  • Number of Line Outputs: 24
  • Headphone Outs: 1
  • Phantom Power: No
  • Number of S/PDIF Connectors: 2
  • Number of ADAT Connectors: 2
  • AES/EBU Connectors: 4
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI Connectors: No
  • Word Clock: 1xIn, 1xOut
  • Max. Samplerate: 192 kHz
  • Max. Resolution in Bit: 24 bit
  • Bus-Powered: No
  • Incl. Power Supply: Yes
  • Windows Thunderbolt driver: No
  • Thunderbolt Version: 2
  • Width in mm: 450 mm
  • Depth in mm: 292 mm
  • Height in mm: 89 mm
Apogee Symphony I/O Mk2 TB 16x16
(1)
Apogee Symphony I/O Mk2 TB 16x16
to the product
4.333 €

Modular Audio Recording Interface Chassis includes I / O module 16 x 16 analog I / O MK2, 1 Module slot for optional input / output modules, 1 Module slot for optional system expansion (eg,...

  • Recording / Playback Channels: 18x20
  • Number of Mic Inputs: 0
  • Number of Line Inputs: 16
  • Number of Instrument Inputs: 0
  • Number of Line Outputs: 16
  • Headphone Outs: 1
  • Phantom Power: No
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 0
  • AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI Connectors: No
  • Word Clock: 1xIn, 1xOut
  • Max. Samplerate: 192 kHz
  • Max. Resolution in Bit: 24 bit
  • Bus-Powered: No
  • Incl. Power Supply: Yes
  • Windows Thunderbolt driver: No
  • Thunderbolt Version: 2
  • Width in mm: 450 mm
  • Depth in mm: 292 mm
  • Height in mm: 89 mm
Apogee Symphony I/O Mk2 TB 8x8
Apogee Symphony I/O Mk2 TB 8x8
to the product
3.699 €

Modular Audio Recording Interface Chassis including I / O module 8 x 8: 8 x 8 analog I / O 8 × 8 AES / Optical I / O Mk II, 1 Module slot for optional input / output modules, 1 Module slot for...

  • Recording / Playback Channels: 18x20
  • Number of Mic Inputs: 0
  • Number of Line Inputs: 8
  • Number of Instrument Inputs: 0
  • Number of Line Outputs: 8
  • Headphone Outs: 1
  • Phantom Power: No
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 2
  • AES/EBU Connectors: 4
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI Connectors: No
  • Word Clock: 1xIn, 1xOut
  • Max. Samplerate: 192 kHz
  • Max. Resolution in Bit: 24 bit
  • Bus-Powered: No
  • Incl. Power Supply: Yes
  • Windows Thunderbolt driver: No
  • Thunderbolt Version: 2
  • Width in mm: 450 mm
  • Depth in mm: 292 mm
  • Height in mm: 89 mm
Apogee Symphony I/O Mk2 TB Chassis
(1)
Apogee Symphony I/O Mk2 TB Chassis
to the product
1.999 €

Modular Audio Recording Interface with Thunderbolt 2 Module slots for optional input / output modules, 1 Module slot for optional system expansion (eg ProTools HD), Dual multi-function encoder,...

  • Recording / Playback Channels: 0x2
  • Number of Mic Inputs: 0
  • Number of Line Inputs: 0
  • Number of Instrument Inputs: 0
  • Number of Line Outputs: 0
  • Headphone Outs: 1
  • Phantom Power: No
  • Number of S/PDIF Connectors: 0
  • Number of ADAT Connectors: 0
  • AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI Connectors: No
  • Word Clock: 1xIn, 1xOut
  • Max. Samplerate: 192 kHz
  • Max. Resolution in Bit: 24 bit
  • Bus-Powered: No
  • Incl. Power Supply: Yes
  • Windows Thunderbolt driver: No
  • Thunderbolt Version: 2
  • Width in mm: 450 mm
  • Depth in mm: 292 mm
  • Height in mm: 89 mm
Apogee Symphony I/O Mk2 TB 8+8mp
Apogee Symphony I/O Mk2 TB 8+8mp
to the product
4.999 €

Modular Audio Recording Interface Chassis including 2 I / O Module, Module 1: 8 x 8 analog I / O 8 × 8 AES / Optical I / O (Mk II), Module 2: 8 Channel Mic Preamp, 1 free rack unit for optional...

  • Recording / Playback Channels: 22x20
  • Number of Mic Inputs: 8
  • Number of Line Inputs: 8
  • Number of Instrument Inputs: 4
  • Number of Line Outputs: 8
  • Headphone Outs: 1
  • Phantom Power: Yes
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 2
  • AES/EBU Connectors: 4
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI Connectors: No
  • Word Clock: 1xIn, 1xOut
  • Max. Samplerate: 192 kHz
  • Max. Resolution in Bit: 24 bit
  • Bus-Powered: No
  • Incl. Power Supply: Yes
  • Windows Thunderbolt driver: No
  • Thunderbolt Version: 2
  • Width in mm: 450 mm
  • Depth in mm: 292 mm
  • Height in mm: 89 mm
Apogee Symphony I/O Mk2 TB 32x32
Apogee Symphony I/O Mk2 TB 32x32
to the product
8.590 €

Modular Audio Recording Interface Chassis including 2 I / O modules, Module 1: 16 x 16 analog I / O (Mk II), Module 2: 16 x 16 analog I / O (Mk II), 1 Module slot for optional system expansion (eg...

  • Recording / Playback Channels: 36x38
  • Number of Mic Inputs: 0
  • Number of Line Inputs: 32
  • Number of Instrument Inputs: 0
  • Number of Line Outputs: 32
  • Headphone Outs: 1
  • Phantom Power: No
  • Number of S/PDIF Connectors: 2
  • Number of ADAT Connectors: 0
  • AES/EBU Connectors: 0
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI Connectors: No
  • Word Clock: 1xIn, 1xOut
  • Max. Samplerate: 192 kHz
  • Max. Resolution in Bit: 24 bit
  • Bus-Powered: No
  • Incl. Power Supply: Yes
  • Windows Thunderbolt driver: No
  • Thunderbolt Version: 2
  • Width in mm: 450 mm
  • Depth in mm: 292 mm
  • Height in mm: 89 mm
Apogee Symphony I/O MKII TB 2x6 SE
(1)
Apogee Symphony I/O MKII TB 2x6 SE
to the product
2.999 €

Modular Audio Recording Interface AD / DA converter, Up to 192 kHz, Housing incl. Input / output module, Free installation slot for further I / O modules, Colour display Connections: 2 x Line...

  • Recording / Playback Channels: 12x16
  • Number of Mic Inputs: 0
  • Number of Line Inputs: 2
  • Number of Instrument Inputs: 0
  • Number of Line Outputs: 6
  • Headphone Outs: 1
  • Phantom Power: No
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 1
  • AES/EBU Connectors: 1
  • Number of MADI Connectors: 0
  • Ethernet: 0
  • Other Connectors: No
  • MIDI Connectors: No
  • Word Clock: 1xIn, 1xOut
  • Max. Samplerate: 192 kHz
  • Max. Resolution in Bit: 24 bit
  • Bus-Powered: No
  • Incl. Power Supply: Yes
  • Windows Thunderbolt driver: No
  • Thunderbolt Version: 2
  • Width in mm: 482,6 mm
  • Depth in mm: 292 mm
  • Height in mm: 89 mm
Free of charge with this product
6.999 €
Free shipping incl. VAT
Available shortly (2-5 days)
Available shortly (2-5 days)

This item has been ordered with our suppliers and should be in our warehouse in the next few days.
