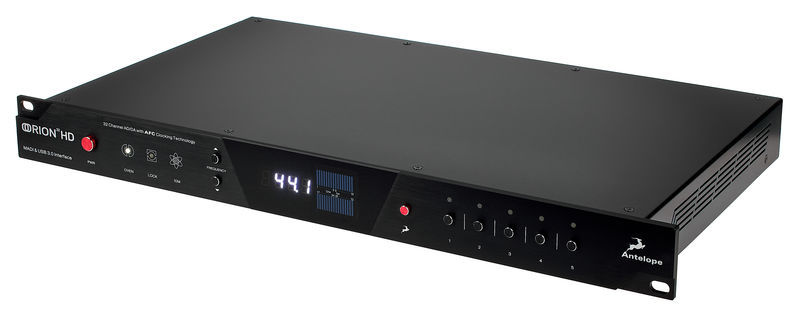

Antelope Orion 32 HD | Gen 3

64-Channel HDX / USB Audio Interface

  • Pro Tools HD and Native compatible
  • AD/DA converter with 24 bit / 192 kHz with up to 136 dB dynamic range
  • FPGA for real-time calculation of modelling effects (compressors, equalisers and more)
  • Antelope 64 Bit 4th Generation Clocking Technology
  • Controllable by multiple computers via Antelope Networking Control Software
  • Dimensions: 483 x 44 x 270 mm
  • Mounting dimensions: 19" / 1 U
  • Weight: 3.8 kg
  • Software compatible with Windows 10 and Mac OS X 10.11

Connectors:

  • 32 Analog line inputs: 4x DB25
  • 32 Analogue line outputs: 4x DB25
  • Monitor output: 2x 6.3 mm TRS jack
  • 2 ADAT inputs / outputs
  • MADI input / output
  • S/P-Dif input / output: RCA
  • 1 Wordclock input: BNC (75 Ohm)
  • 1 10M input for Antelope Atomic Clock: BNC
  • 2 Word clock outputs: BNC (75 Ohm)
  • 2 Mini HDX ports
  • 1 USB 3.0 type B port

Further Information

Recording / Playback Channels 64x64
Number of Mic Inputs 0
Number of Line Inputs 32
Number of Instrument Inputs 0
Number of Line Outs 34
Headphone Outs 0
Phantom power No
Number of S/PDIF Connectors 1
Number of ADAT Connectors 2
Numer of AES/EBU Connectors 0
Number of MADI Connectors 1
Ethernet 0
Other Connectors HDX Port x2
MIDI interface No
Word Clock 2xIn, 2xOut
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 3.0
Width in mm 483 mm
Depth in mm 270 mm
Height in mm 44 mm
Show variations of this product
Antelope Orion 32 HD | Gen 3
Antelope Orion 32 HD | Gen 3
to the product
4.069 €

64-Channel HDX / USB Audio Interface Pro Tools HD and Native compatible, AD/DA converter with 24 bit / 192 kHz with up to 136 dB dynamic range, FPGA for real-time calculation of modelling effects...

  • Recording / Playback Channels: 64x64
  • Number of Mic Inputs: 0
  • Number of Line Inputs: 32
  • Number of Instrument Inputs: 0
  • Number of Line Outs: 34
  • Headphone Outs: 0
  • Phantom power: No
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 2
  • Numer of AES/EBU Connectors: 0
  • Number of MADI Connectors: 1
  • Ethernet: 0
  • Other Connectors: HDX Port x2
  • MIDI interface: No
  • Word Clock: 2xIn, 2xOut
  • Max. sample rate (kHz): 192 kHz
  • Max. resolution in bit: 24 bit
  • USB Bus-Powered: No
  • Incl. power supply: Yes
  • USB Version: 3.0
  • Width in mm: 483 mm
  • Depth in mm: 270 mm
  • Height in mm: 44 mm
  • Included in delivery: Software, USB Cable
  • Zero latency monitoring: Yes
