Zoom LiveTrak L-12 Mic Set
Bundle offer comprising
Zoom LiveTrak L-12
- Combined mixer, audio interface and recorder
- 12 Discrete channels (8 mono plus 2 stereo channels) with XLR and 6.3 mm jack sockets
- Simultaneous recording of up to 14 tracks
- Playback of 12 tracks
- 24-Bit USB audio interface with 14 inputs and 4 outputs
- Sampling frequency: 44.1 / 48/96 kHz
- Five powerful headphone outputs with individually adjustable monitor mixes
- Expand your livestream and recording with backing and click tracks from the computer
- Line inputs in RCA and TS jack format
- 48 V phantom power: channels 1 to 4 and 5 to 8
- Hi-Z connections: channels 1 and 2
- 26 dB pad: channels 3 to 8
- Integrated compressor controller: channels 1 to 8
- Master mute button
- High-pass regulator
- Adjustable stereopanorama
- Master and monitor outputs AE
- Memory function for up to nine mixers
- 16 Internal, editable delay and hall effects
- Integrated talkback microphone
- Class-Compliant operation (for iOS compatibility)
- SD-card slot
- Internal metronome
- Ability to automatically start and stop recording
- Project protection function
- Import and export projects via the USB 2.0 interface
- Latency compensation for AD conversion
- Compatible functions for the ZOOM FS01 foot switch
- Includes: power supply (AD-19), USB 2.0 cable and short manual
- Dimensions (W x D x H): 445 x 282 x 70.5 mm
- Weight: 2.53 kg
- Suitable optional case: Art.492951 (not included)
Zoom ZDM-1 Podcast Mic Pack
- Podcast Recording Pack
- Set consists of ZDM-1 dynamic large-diaphragm microphone, ZHP-1 headphones, ZTPS-4 table stand, windshield for ZDM-1 and XLR microphone cable (2m)

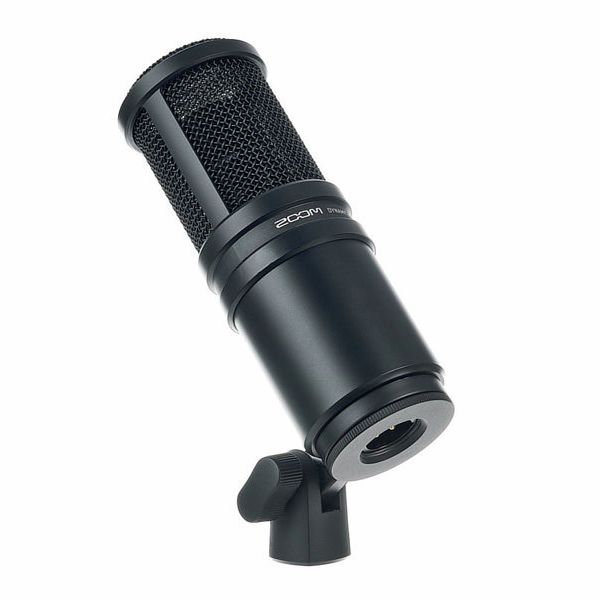

Features of the ZDM-1 dynamic large-diaphragm microphone:
- Directivity: Supercardioid
- Frequency range: 50 - 18.000 Hz
- Sensitivity: -54 dBV / Pa (2.0 mV)
- Max. Sound pressure level: 135 dB
- Dimensions (L x D): 150 x 54 mm
- Weight: 1.36 kg
Features of ZHP-1 closed headphones:
- Dynamic
- 40 mm neodymium converter
- Frequency range: 10 - 20000 Hz
- Sensitivity: 102 dB SPL (1 mW) at 1 kHz
- Impedance: 68 ohms
- Synthetic leather ear pads
- Weight: 190 g
- One-sided cable (2m) with 3.5 mm jack plug
available since
February 2021
Item number
512971
sales unit
1 piece(s)
Recording / Playback Channels
14x4
Number of Mic Inputs
8
Number of Line Inputs
12
Number of Instrument Inputs
2
Number of Line Outs
6
Headphone Outs
4
Phantom power
Yes
Number of S/PDIF Connectors
0
Number of ADAT Connectors
0
Numer of AES/EBU Connectors
0
Number of MADI Connectors
0
Ethernet
0
Other Connectors
No
MIDI interface
No
Word Clock
No
Max. sample rate (kHz)
96 kHz
Max. resolution in bit
24 bit
USB Bus-Powered
No
Incl. power supply
Yes
USB Version
2.0
Width in mm
445 mm
Depth in mm
282 mm
Height in mm
70,5 mm
Connection Format
USB port Type B, Type A
Number Of Tracks
12
Simultaneous Recording: Amount Of Tracks
14
Effects
1
Storage Medium
SD Card, USB
XLR Connectors
8
Jack Connectors
4
RCA Connectors
1
MIDI Interface
None
USB connection
1
Digital Connections
None
Miscellaneous Connectors
Control In
Headphone connection
1
Options
Audiointerface, Compressor
Included in delivery
Power Supply
Zero latency monitoring
1
