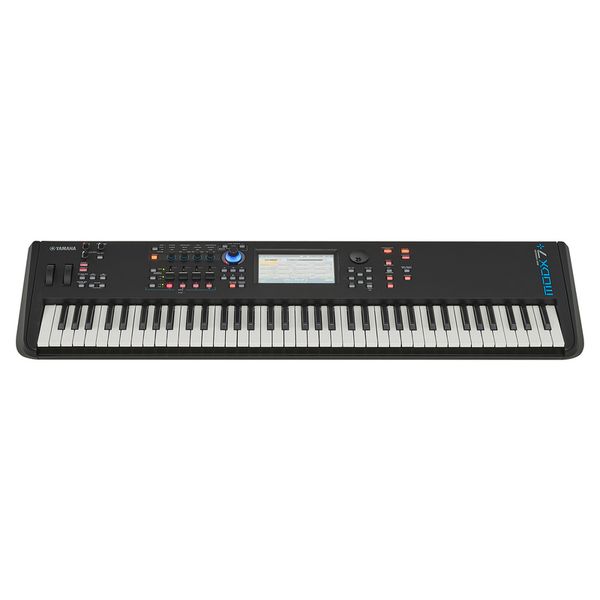

Compact Music Synthesizer
- With 76 keys
- Velocity-sensitive semi-weighted keyboard
- Motion control synthesis
- Sample-based AWM2 synthesis with 128 voices
- 5.67 GB waveform ROM & 1.75 GB flash ROM for user waveforms
- FM-X synthesis with 128 voices
- 8 Operators and 88 algorithms
- Integrated effects, Part-EQ, Master-EQ
- 2.227 preset performances (up to 16 parts per performance for splits, layers, MIDI multimode)
- Super Knob controls up to 128 parameters simultaneously
- 7" Colour VGA touch screen
- 4 Rotary controllers
- 4 Faders
- Integrated 4/10 USB audio interface for PC/Mac/iOS
- 2 Line inputs: 6.3 mm jack
- 2 Line outputs: 6.3 mm jack
- Stereo headphone output: 6.3 mm jack
- USB host and device connections
- MIDI input and output
- 2 Pedal inputs
- 2 Footswitch inputs
- External power supply 12V DC
- Dimensions: 1144 x 331 x 134 mm
- Weight: 8.59 kg
- Incl. Steinberg Cubase AI DAW software for PC/Mac
- Matching case: art. 497942 (not included)
available since
September 2022
Item number
550550
sales unit
1 piece(s)
Number Of Keys
76
Touch-Sensitive
Yes
Aftertouch
No
Split Zones
Yes
Modulation Wheel
Yes
Number of simultaneous Voices
128
Sound Engine
AWM2 + FM-X
MIDI interface
1x In, 1x Out
Storage Medium
Flash-ROM
USB-port
Yes
Effects
Multieffect processor
Arpeggiator
Yes
Number of Analog Outputs
2
Digital Output
No
Display
Yes
Amount Of Keys
76
Touch Sensitive
1
Number of Voices
128
Number of analog outputs
2
Pedal Connections
2x Pedal, 2x Footswitch
Dimensions
1144 × 331 × 134 mm
Pedal Connectors
2x Pedal, 2x Footswitch
Weight
8,6 kg
Optional Expansion Boards
No
Dimensions in mm
1144 x 331 x 134
Weight in kg
8,6 kg
