the t.bone free solo 600 Ovid Guitar Set
Bundle offer comprising
the t.bone free solo PT 600 MHz
- Wireless Systems for Guitar and Bass
- UHF wireless system with a pocket transmitter
- 14 Pre-programmed frequency groups with 15 available channels each
- 1 User channel
- Adjustable squelch with threshold display on the receiver
- Frequency scan in the receiver
- Adjustable AF output
- Adjustable transmission power: 5 mW, 10 mW, 20 mW
- Infrared transfer of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 25 kHz

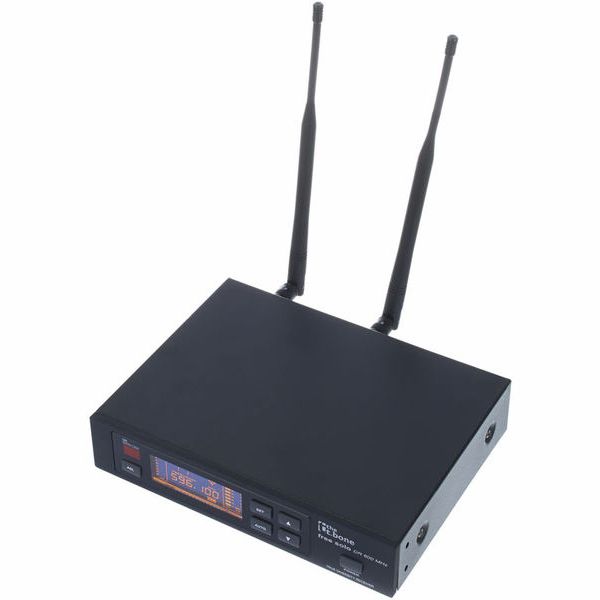

- Housing: 9.5", 1 U with 2 BNC outputs for antennas
- XLR- and jack output
- Operates with 12 V, 0.5 DC power supply (positive polarity (+) on the inside)

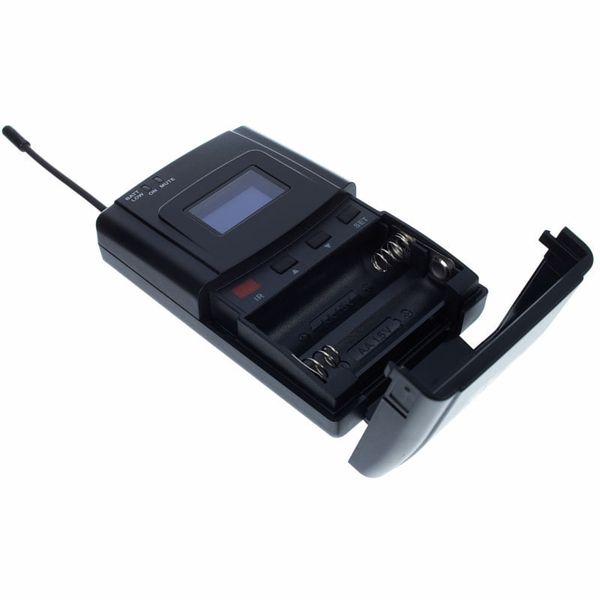

- Transmitter housing: Plastic
- 3 TQG male connector
- LCD display
- Operates with 2 AA batteries or rechargeable batteries (not included)
- Frequency band: 596 - 620 MHz
- Includes a guitar cable, plastic case and rackmount
- Optional antenna converters available under Article Nr 177448 (not included)
the t.bone Ovid System CC 100
- Condenser ?lip Microphone for Ovid System
- Directional characteristic: Cardioid
- Frequency response: 20 - 20,000 Hz
- Flexible gooseneck for an easy instrument setup
- 3-Pin Mini XLR connector for operation with t.bone wireless systems (also suitable for AKG wireless systems)
- Gooseneck length: 130 mm
- Cable length: 2 m
- Easy to install and can be used with different instrument clips (not included, must be ordered separately)
- Includes an XLR phantom power adapter (phantom power required) and a foam windshield

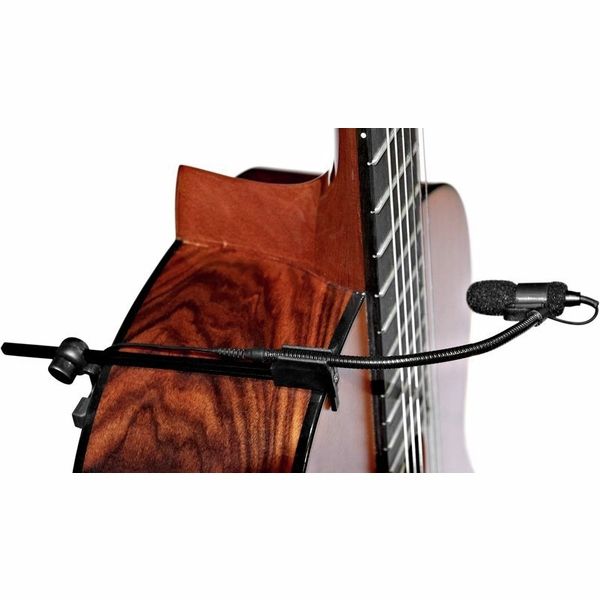

the t.bone Ovid System Guitar Clip
- Modular Guitar Microphone Clip for Ovid systems
- Easy to install without tools
- Black rubber end caps protect the instrument from damage
- Locking screw
- Max body width 12.5 cm
available since
February 2013
Item number
308944
sales unit
1 piece(s)
Guitar Channels
1
Transmission Format
Analog
Frequency
596 MHz – 620 MHz
Transmitter Type
Pocket Transmitter
Receiver Type
Stationary
Mountable Antenna
BNC
Charging System
No
Internal Battery
No
Channels Instrument Microphone
1
Diversity
1
Transmission System
Analog
Mic Model
270447
Transmission Power in mW
20 mW
Transmission power in mW
20 mW
Usable Frequencies
210
Switching bandwidth in MHz
25 MHz
Selectable frequencies
210
Frequency Display
1
Frequency display
1
Automatic Frequency Search
1
Frequency scan
1
Removable antenna
BNC
Monitoring the battery status
1
Battery Status Display
1
Accu Transmitter
No
Transmitter with Accu
No
Output
XLR
Rackkit
Yes
Receiver Width in mm
212 mm
Receiver Height in mm
44 mm
Receiver width in mm
212 mm
Receiver Depth in mm
160 mm
Receiver height in mm
44 mm
Receiver Weight in kg
0,9 kg
Receiver depth in mm
160 mm
Receiver weight in kg
0,9 kg
Show more
Information on the supported frequency ranges
Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.
