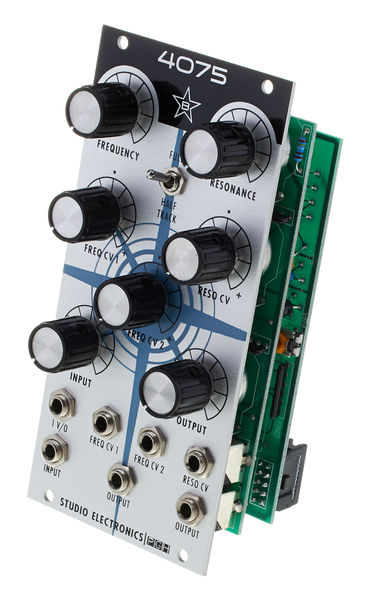

Studio Electronics 4075 Filter
- Eurorack format
- Voltage controlled low pass filter, similar to Arp 4072
- 24 dB/Oct
- Controls for frequency and resonance, full/half track, frequency CV1, frequency CV2, resonance CV, input, output
- Switchable filter tracking: Full/Half
- Inputs: : Audio, 1 V/O, frequency CV 1, frequency CV 2 and resonance CV
- Outputs: 2x audio
- Width: 12 TE / HP
- Depth: 40 mm
- Power consumption: +27 mA (+12 V) / -34 mA (-12 V)
|Width||12 TE / HP|
