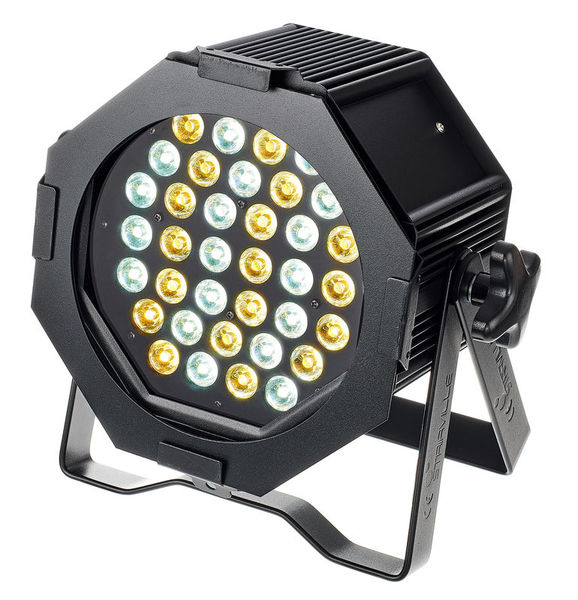

Stairville Octagon Theater CW/WW 36x1W

LED Theatre Spot

  • DMX controlled theatre spot light
  • Equally suitable for theatres and festival halls, as well as for live and on the road touring
  • Stepless adjustable colour temperature
  • The fanless design makes the Octagon a particularly attractive alternative to conventional halogen spotlights, especially in theatres, and musical and variety venues
  • With its adjustable colour temperature from 2800 - 6400 Kelvin, the Octagon is in a league of its own and makes the many changes of filter a thing of the past
  • Can be controlled via DMX-512, or directly on the device via the black / white LED display done
  • Incl. barn doors

Technical data:

  • Light source: 18x 1 W high power LED cool white (approx. 6400 K) + 18x 1 W high power LED warm white (approx. 2800 K)
  • Continuously adjustable colour temperature of 2800-6400 K
  • Beam angle: Approx. 36°
  • Control: DMX-512 (5 channels)
  • Modes: Auto and stand alone (adjustable colour temperature)
  • LED display to show all important parameters
  • Fanless operation
  • DMX input and output: 3-Pin XLR
  • Power supply: 230 V AC 50/60 Hz
  • Max. power consumption: Approx. 42 W
  • Housing dimensions: 21.5 x 21.5 x 14 cm - with screws and bracket: 21.5 x 30.1 x 24.8 cm
  • Weight: 4.02 kg

Further Information

Outdoor usable No
Numbers of LED´s 36
single LED power 1 W
Colour mixing CW/WW
LED Type single color LED
Floor housing Yes
No fan Yes
Remote not supported
wireless DMX No
housing colour Black
Beam angle 36 °

These are other customers' choices:

Customers who looked at this item have bought these:

Stairville Octagon Theater CW/WW 36x1W
56% bought this exact product
Stairville Octagon Theater CW/WW 36x1W
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
€145 Add to Basket
Stairville Octagon Theater 20x6W CW/WW/A
18% bought Stairville Octagon Theater 20x6W CW/WW/A €185
Varytec Theater Spot 300/500 Fresnel
4% bought Varytec Theater Spot 300/500 Fresnel €58
Stairville RevueLED 120 COB 3200K DMX
3% bought Stairville RevueLED 120 COB 3200K DMX €269
Varytec Theater Spot 650/1000 Fresnel
3% bought Varytec Theater Spot 650/1000 Fresnel €77
Our most popular Theater Spotlights
73 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.4 / 5.0
  • illumination
  • quality
43 written ratings Read all reviews
Total
illumination
quality
Barn doors ARE included :-)
15.01.2014
After a couple of months of usage in a small and intimate music theatre we are very happy.
Diffusion filter is a must, otherwise they are a bit too hard for performer's eyes.
We had to use some adhesive tape to kill disturbing back spill of light (which got even worse with diffusion filters) but no problems as they do not get hot at all.
Led info display is nice and bright, but we also taped it, not to disturb the audience.
Completely silent, yeah!

The info does not mention, but barn doors are included, which is nice.

Totally recommend, would buy them again.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
illumination
quality
Very bright!
21.03.2014
Have bought two of these. They are very bright. I can say that are too bright!
I like that they has a DMX and a good and easy menu inside of them. But for the small auditoriums I would recommend to use some gel-sheets(ffilters), especially if you are not going to hang them up. Its unpleasant to look at them even from 10 meters long. Good lights, we use them, because we need more lights for video shoot.
So if you are going to buy these once, be sure to buy also filters.
Would recommend this light to anybody who is in need of stage light.
