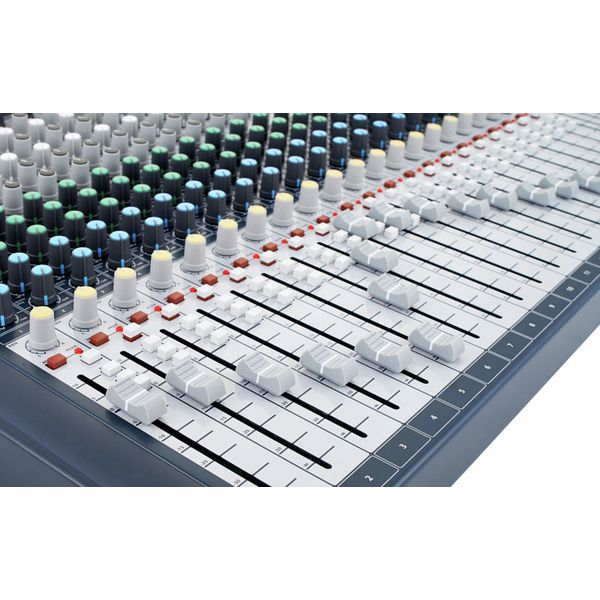

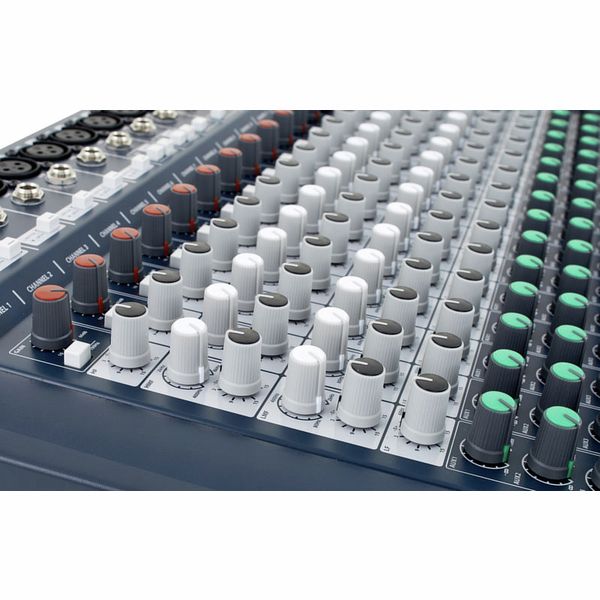

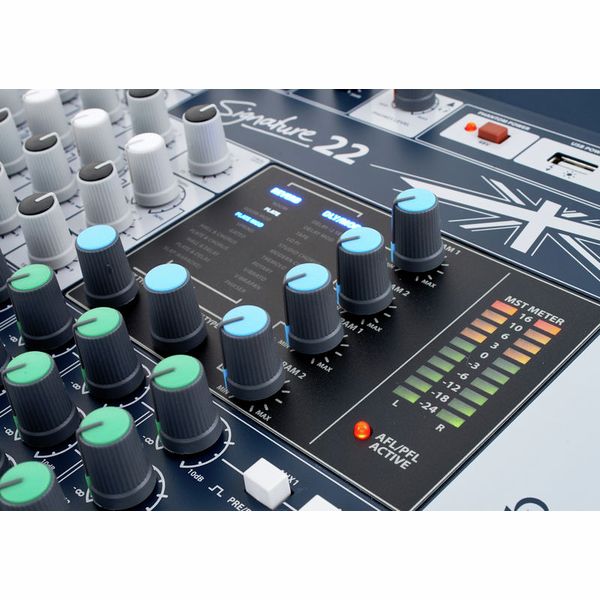

22 Channel Mixer
- 16 Mono inputs
- 4 Stereo inputs
- 4 Band EQ with swept mids
- 8 Mic channels with built-in dbx compressor/limiter
- 5 AUX sends
- Solo/Mute switch
- 4 Subgroups
- Built-in Lexicon effects device
- Peak LED per channel
- Integrated power supply
- 100 mm Fader
- 2 Channel USB interface (incl. Ableton Live 9 Lite software)
- Dimensions: 109 x 490 x 660 mm
- Weight: 11.06 kg
- Suitable case available under Article Nr 371944 (not included)
Available since
February 2016
Item number
359303
Sales Unit
1 piece(s)
Simultaneous channels
18
Mic-In
16
Mono Line-in
16
Stereo-In
4
Hi-Z Input
4
Phantom Power
48V
Master Out
XLR
Aux Ways
3
max. Pre Aux Channels
2
PC Interface
USB-B
Interface Input
0
Interface Output
2
Multitrack-Recording
No
USB/SD Direct Recording
No
Rec Out (Analog)
No
Low Cut
Yes
Inserts
No
Direct Out
No
Parametric EQ
Yes
Compressor
No
Panorama
Yes
PFL
Yes
FX Processor
1
USB Playback
No
Bluetooth Playback
No
Lamp connection
No
Footswitch
Switch
Matrixmixer
No
Bag
420182
Zones
0
19" Rackmount
No
Width
660 mm
Depth
490 mm
Height
109 mm
altezza
109 mm
Weight
11,1 kg
Parallel usable Channels
18
Mic Ins
16
Mono Line Ins
16
Stereo Ins
4
Number of Pre Aux max.
2
USB/SD Direkt Record
No
Parameteric
1
Effect Processor
1
USB Play
No
Bluetooth Play
No
Lamp Connector
No
Foot Switch
Switch
Rackmount
No
110V Power Supply
Yes
