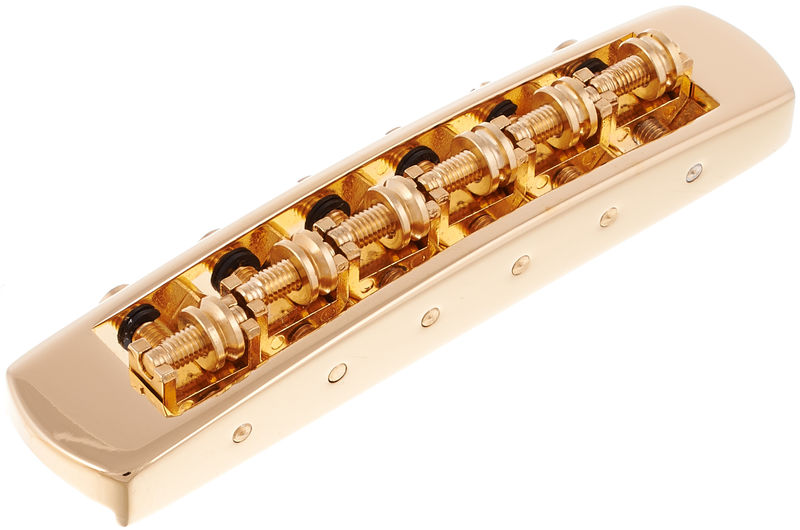

Schaller STM TOM-Style Bridge G

Bridge for Electric Guitar

The design of this bridge allows a three-dimensional adjustment. It is not only adjustable in terms of height and intonation, but also the individual string spacing.

  • Suitable for bolt spacings from 74.0 to 74.5 mm
  • Low-friction roller saddles for excellent tuning stability - ideal for tremolo guitars
  • Wide, shallow roller notches for low strings and deep U-shaped notches for high strings
  • Non-reverse - Intonation screws point to the pickup
  • Brass saddles
  • Single string spacing: 9.7 - 11.5 mm
  • Total string spacing: 48.5 - 57.5 mm
  • Dimensions: (L x W x H) 83.8 x 18.1 x 12.5
  • Total borehole spacing: 74 - 74.5 mm
  • Weight: 58 g
  • Schaller article no.: 12080500
  • Finish: Gold-plated
  • Includes 2 impact sleeves M7 and 2 height adjustment screws M5 (metric)
  • Made in Germany

Further Information

Colour Gold
Design Tune-O-Matic
Single Rider Yes
String Holder No
82 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.8 /5
  • quality
Total
quality
AMAZING QUALITY!!!
phackwer, 18.07.2019
I bought a second hand used Chibson (Chinese Gibson Copy) that had one problem: bridge were centered to what has been painted instead of the guitar dimensions. This made the bridge to be 1.5-2mm to the wrong direction. Since I was installing a tremolo to fix the string holder, the bridge was the second step to be adjusted. I found this product, amazing, I could just adjust the distance of the strings and also place then in the right position without damaging it when using the tremolo!!! So many features!!! And, I had a small problem (I've misplaced the strings over the tremolo, dumb me, first tremolo I ever had on a Les Paul). I've email Schaller company and got a reply... FROM DR LARS BUNNING! Managing Director / Owner of the brand. How many times have you had an email replied like that?!


Amazing support, amazing product, saved a guitar a lot of people would not think worth of saving (I know, a copy, but, really, the guitar sounds amazing, neck is smooth, all is good, and saved by this bridge that someone FINALLY put the definitive final regulation a guitar was missing - you can adjust string's distance to your hand now! No matter what Les Paul you haver...
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
A word of caution
Anthony3472, 02.03.2015
This is a beautiful bridge. The quality is excellent and it offers great adjustments.
Schaller make excellent products.
I bought it as a replacement for my 1970's Aria TA60.
I haven't used though. It is my stupidity but although I measured my guitar very carefully this won't fit my guitar as a direct replacement. The mounting bolts supplied with this are a very different size to the ones on the guitar and this is the point.
The photos on the website don't show the underneath of the bridge. If they did I would have seen that it is very different to my guitar's existing one. The diagram photo does give very good measurements so I blame myself entirely for this.

My only reason for sending this review is to send a note of caution to would be buyers that you may find yourself having to make pretty big adjustments to the body of your guitar in order to make this fit. I'm not confident enough to do this myself so this bridge remains unused. I hope this helps.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
High quality replacement for my Epiphone Rivera P93
Mafra, 29.02.2020
Used to replace the original bridge of my Epiphone Rivera P93 (great guitar, not so great hardware). Much better the original in terms of quality, finishing and general engineering. Though a little different tone of gold when compared to the Bigsby, I'm very happy with the replacement until now.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
excellent bridge
Richard148, 01.04.2015
I have bought two of these now, and found them to be excellent in quality and function. One was for an Epiphone Les Paul, and the small threaded inserts fitted straight inside the bridge post inserts in the Epi Les Paul. Easy to fit and the roller saddles make string positioning and spacing perfect. Intonation was easy and almost dead right as fitted.
The second went on a Gibson Supreme Les Paul. The string positioning on the standard bridge left the 1st string further in on the fretboard than the 6th string and it didn't run over the poles on the pickup. (bridge post inserts slightly out of position in the body). The threaded Schaller bridge posts screwed straight into the Gibson body inserts so was fitted easily in minutes, and the adjustable roller saddles allowed me to set the perfect string position and spacing. Brilliant. And again the intonation was almost spot on as fitted and easy to adjust.
If your Tune-O-Matic rattles it will sort that out too.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
£68
Including VAT; Excluding £8 shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
