Roland System-500 540

Module in Eurorack format

  • Dual Envelope Generator & LFO (Low Frequency Oscillator) is a multifunctional modulation source
  • Two independent ADSR envelope sections (Attack, Decay, Sustain, Release) can generate different voltages to control other synthesizer modules in Eurorack format (e.g. oscillators, filters and VCAs)
  • Each section can be triggered in different ways: via an external source, internally, manually via the connections for each of the envelopes or via an inverted output signal
  • In addition, the 540 module has a voltage controlled LFO with 5 waveforms
  • Both the frequency and the application delay of the LFO start point can be set via the control dials
  • The delay and reset can be triggered either from Envelope 1 or Envelope 2
  • Power consumption: 85 mA (+12 V), 50 mA (-12 V)
  • Dimensions (W x D x H): 81 x 58 x 129 mm
  • Euro bag width: 16 HP
  • Incl. 4 screws for installation and Eurorack bus power cable

Further Information

Width 16 TE / HP
2 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • quality
Total
handling
features
quality
The Truie Envelope!
antvel, 09.02.2021
I use this in everydayin my modular built quality is Superb!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
quality
Dual Envelope & LFO
Son of MooG, 08.01.2021
Das Modul 540 bietet zwei identische ADSR-Hüllkurven und einen LFO, dessen Tempo auch durch einen CV-Input geregelt werden kann. Zudem verfügt er über ein regelbares Delay, das z.B. ein Einschwing-Vibrato ermöglicht. Für jede der 5 Wellenformen gibt es einen separaten Ausgang.
Die Hüllkurven lassen sich getrennt ansprechen und können zwischen Attack und Decay geloopt werden. Es gibt je zwei normale und einen invertierten Ausgang; die Gate-Inputs lassen sich auch wahlweise dem LFO zuordnen.
Die Fader-Wege sind zwar recht kurz, dennoch lassen sich die Zeiten präzise einstellen. Die beiden Potis des LFOs bieten einen angenehmen Dreh-Widerstand und machen einen robusten Eindruck. Dieser Eindruck setzt sich auf die Verarbeitung des Moduls fort; hier sollte so schnell nichts kaputt gehen...
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Show variations of this product
Roland System-500 540
(2)
Roland System-500 540

Module in Eurorack format Dual Envelope Generator & LFO (Low Frequency Oscillator) is a multifunctional modulation source, Two independent ADSR envelope sections (Attack, Decay, Sustain, Release)...

Roland System-500 555
Roland System-500 555

Eurorack Module Analogue CV and audio processor, 2 Portamento stages (slew limiter), Flexible sample & hold stage with internal clock, Outputs for white and pink noise, Ring modulator, LFO with 5...

Roland System-500 572
(1)
Roland System-500 572

Module in Eurorack format Phase shifter + delay + LFO, Time-dependent multi-effect module, Has a 5-stage phase shifter, an analog audio delay, a voltage-controlled gate delay and an LFO, The Phase...

£344
Free shipping incl. VAT
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Your Contacts
Phone: +49-9546-9223-30
FAX: +49-9546-922328
video
Roland System-500 540 2ENV-LFO
1:39
Thomann TV
Roland System-500 540 2ENV-LFO

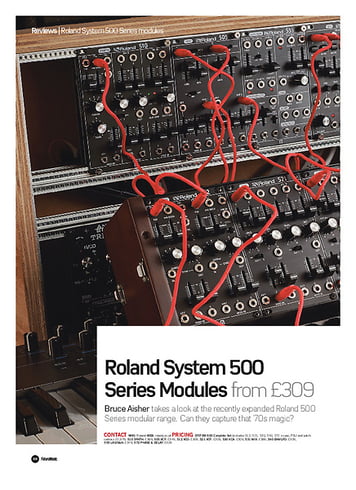

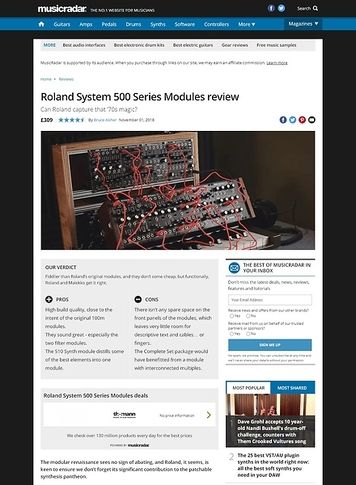

test results:
