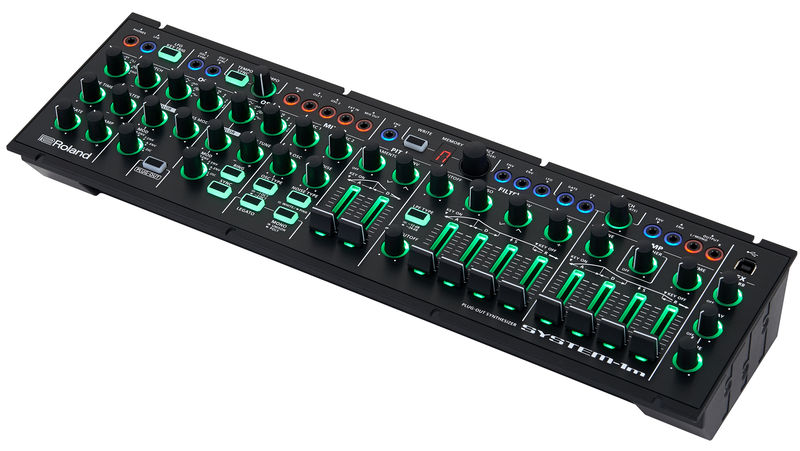

Roland System-1m

Semi-Modular Synthesizer Incl. PLUG-OUT Function

  • 19 Colour codes for CV/gate and audio connectors
  • With LED lighting
  • Compatible with desktop designs - compatible with 84 HP Eurorack and 19" rack
  • Power by AC adapter or Eurorack power bus
  • 64 Sets: 8 banks x 8 patches
  • Versatile oscillators with 6 waveforms
  • Crossmod
  • Ring Mod
  • Sync and colour control
  • Control of all parameters using high-resolution rotary knobs and sliders with LED indicators
  • Audio input
  • Filter, amp and FX sections for external audio signal
  • -12 dB and -24 dB filter types with independent high-pass filters
  • Built-in effects (tone, crusher, reverb, delay)
  • Tempo sync for LFO and delay effects
  • 24-bit / 96kHz audio and MIDI interface
  • AIRA Link interface for easy connection to MX-1 Mix Performer
  • Dimensions (L x W x H): 427 x 129 x 70 mm
  • Weight: 1.25 kg
  • Incl. AC adapter, PLUG-OUT information card, rack adapters, Eurorack installation screws, Eurorack power cable, patch cable with braided fabric coating (Set of three cables)

Connections:

  • Phones plug: Stereo mini-jack
  • Output (L / MONO, R) plug: jack (back)
  • Output (L / MONO, R) plug: mini-jack (front)
  • LFO Out
  • OSC 1 SYNC Out
  • OSC 2 SYNC In
  • Ring In
  • OSC 1 Out
  • OSC 2 Out
  • Ext In
  • Mix Out
  • Pitch ENV In
  • Filter ENV In
  • Filter ENV Out
  • Filter LFO In
  • Gate In
  • CV In
  • Amp ENV In
  • Amp ENV Out plug: mini jack
  • MIDI (In, Out) connection (back and bottom)
  • USB connection: USB type B (Audio / MIDI)
  • DC IN jack
No JavaScript? No Audio Samples! :-(

Audio Examples


0:00
  • Sequence 1
  • Sequence 2
  • Sequence 3
  • Sequence 4

Further Information

Design 19"
Polyphony 4
Sound Generation Modeling
MIDI interface 1x In, 1x Out
Storage Medium Internal
USB-port Yes
Effects Yes
Arpeggiator No
Number of Analog Outputs 2
Digital Output No
Display No
21 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.5 /5
  • handling
  • features
  • sound
  • quality
Total
handling
features
sound
quality
Plug-out support
Captain Pungent, 27.05.2019
I bought this specifically for the plug-out functionality. It can only load ONE plug-out synth at a time, and it only works with SH-101, SH-2 and PROMARS. Unfortunately that information is not available anywhere, so I thought to share with you here.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
sound
quality
Thank You!
11.01.2017
Greetings! Just purchase the Roland system 1m a Semi Modular Synth and have to say that that is very funny to to play!
I'm starting to create some experimental Psy-Trance music and the system 1m help me a lot creating cosmic ambients, build ups and drops from the LFO.
I just found some troubles in the LFO Rate which are no separate from bars, but at the same time is good to create more natural movement!
I like a lot the sound of the wave tables it sound very interesting!
Thanks a lot to help me in my mission on Earth!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
