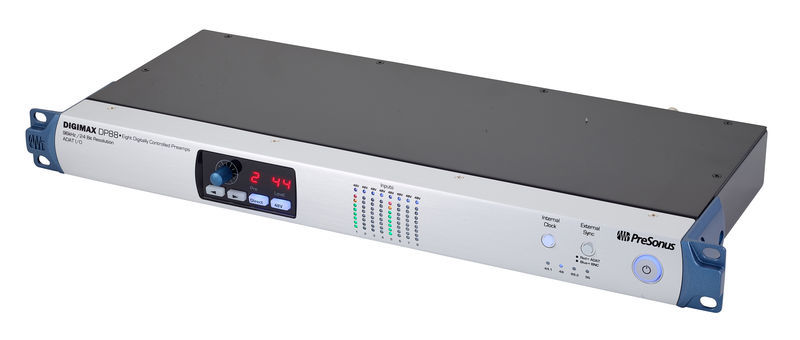

Presonus DigiMax DP88

Remote 8-channel pre-amp with A / D / A converters and ADAT I / O

  • Ideal extension for PreSonus Studio 192 and Studio 192 Mobile
  • MIDI I / O for remote control of level and phantom power as well as line input selection directly from popular DAWs (requires MIDI interface on the respective computer)
  • In connection with Studio 192 or Studio 192 Mobile completely from the computer remotely controllable and programmable by means of "UC Surface" software / App or directly from PreSonus Studio One 3
  • 8 balanced microphone inputs (XLR & DB25-F)
  • Impedance: 1.6 kOhm
  • 8 balanced line inputs (DB25-F)
  • Impedance: 10 kOhm
  • 8 XMAX Class A Microphone Preamplifiers
  • THD + N: <0.005%
  • Burr-Brown digital converter with 118 dB dynamics and up to 96 kHz sampling rate
  • 8 analog direct outputs (balanced, DB25-F)
  • 8 analog DA outputs (balanced, DB25-F)
  • ADAT dual SMUX input (8-channel, 96 kHz, 2x optical)
  • ADAT dual SMUX output (8-channel, 96 kHz, 2x optical)
  • Wordclock I / O (BNC)
  • 2 cursor buttons for channel selection
  • Encoder for setting the preamplification (gain)
  • 48 V push button - phantom power can be controlled per channel
  • "Direct" button places a line input directly on the relevant AD converter (can be selected separately per channel)
  • Output indication (8-segment) plus 48V LED per analogue input
  • "External Sync" button for selecting an external clock source (red = ADAT, blue = BNC)
  • "Internal Clock" button to select the sampling rate (44.1 / 48 / 88.2 / 96 kHz)
  • Power supply: external power supply (12V DC)
  • Metal housing
  • Dimensions: 19 "/ 1 HE
  • Incl. MIDI cable whip from D-Sub-Mini to 2x 5-pin DIN (MIDI In, MIDI Out)

Further Information

Amount Of Channels 8
AD Conversion Yes
DA Conversion Yes
Max. Resolution 24 bit
Max. sampling rate 192 kHz
S/PDIF Connecor No
AES/EBU Connector No
ADAT Yes
Word clock Yes
Number of analog inputs 8
Number of Analog Outputs 8
Headphone connection No

This product is currently sold out

These are other customers' choices:

Behringer ADA8200 Ultragain
33% bought Behringer ADA8200 Ultragain €159
Audient ASP800
10% bought Audient ASP800 €695
Focusrite Scarlett OctoPre
9% bought Focusrite Scarlett OctoPre €419
TritonAudio FetHead
7% bought TritonAudio FetHead €66
Our most popular Preamps
3 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.7 / 5.0
  • handling
  • features
  • sound
  • quality
2 written ratings
Total
handling
features
quality
sound
Alabay, 14.03.2018
I've bought DP88 to expand my home studio with Apollo 8 silver. It is a really good combination. Now I can record drums and more outputs make my monitoring very flexible. The quality of preamps are excellent and ad/da converters are amazing.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
quality
sound
Good mic with 8 A / Ds & independent D / A's!
meisterTon, 25.11.2017
Application:
intended as an extension for digital systems (DAW or desk) and therefore equipped with completely independent 8 D / A (many preamps use the same analog outs for mic or OR DA conversion!). That was also the reason for me to test the DP88, It is also remotely controllable via MIDI and can thus be placed directly at the source, as usual in many studios or in live recording.

Service:
About a display, 4 buttons and an endless knob can be through the preamps and regulate the Gain & P48, About 2 more buttons samplerate and sync mode is switched, there are 1 ledmeter and 1 P48 led per channel. As far as everything is clear and simple.
drawback:
The endless controller is, quasi as a 'single' control element quite small & 'cheap' running, and also still 'toxic', you have to touch very carefully to crank up individual dB steps, very annoying eg when corrections while tracking ...! A big button, possibly with grid, would be much better!

sound:
At first I doubted, to get a 'top' sound at a rather 'cheap' price ... then compared both the converters and the preamps against my previous favorites (SSL ADAs & Siemens V276 vintage pre) with a drum recording , After a few initial problems with the exact level adjustment (... louder, as you know, always sounds "better"!), I could not tell the difference between the different signal paths. This finally convinced me of the very good sound of preamp & ADAs, but the full score!

Domestic equipments:
The external 12V power supply is now better than a badly installed with appropriate hum interference ... sub-D input u. Exits = little space for many possibilities.
Would I still want a low-cut and va phase reverse, and there is no pad. But enough gain (60dB) and a separate line input in case of emergency.
But not a broken leg when feeding into a desk or DAW ...
drawback:
Unfortunately, when selecting the Direct (line-in directly on A / D) of the micpre capped (... differently than shown in the block diagram!) And is 'lost', instead, you have a duplicate of the line signal at the output (?? ), so there is no insert between preamp u. AD or their independent use no longer possible, although all Ein u. Outputs would be available! That should fix the developers still ... then it would be even more flexible and really top in this class!

Conclusion:
who wants a good sound, and with a few drawbacks in equipment / processing / service live & can save the wallet, which will enjoy it.
