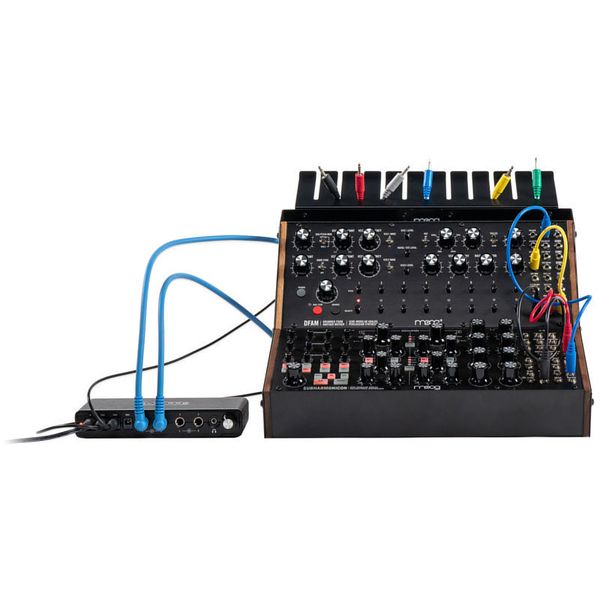

Synthesizer Set
- Consisting of Moog DFAM and Moog Subharmonicon
- Complete set of 2 semi-modular analogue synthesizers plus accessories and teaching aids to explore the world of analogue synthesis
- Complete dimensions (W x H x D): 33 x 20 x 33 cm
- Weight: 4.3 kg
DFAM features:
- Two oscillators with square, triangle waveforms and white noise generator
- Switchable low pass & high pass 4-pole transistor ladder filter (20 - 20000 Hz)
- Analogue 8-step sequencer
- 24 patchbay with 3.5 mm mini jack
- Line/headphone output: 6.3 mm jack

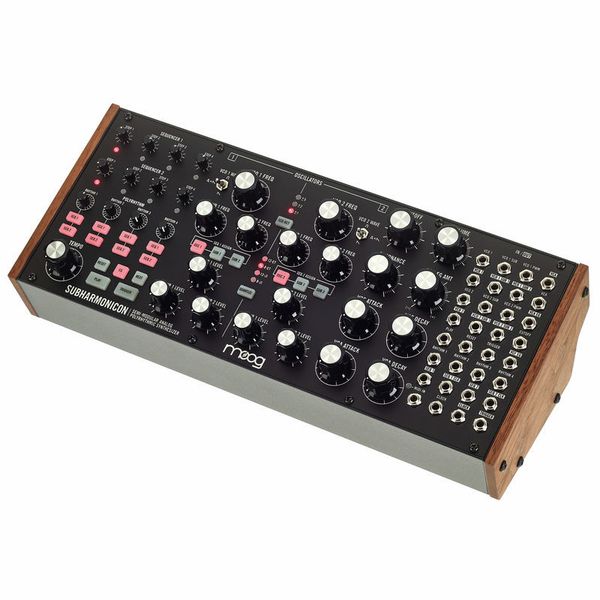

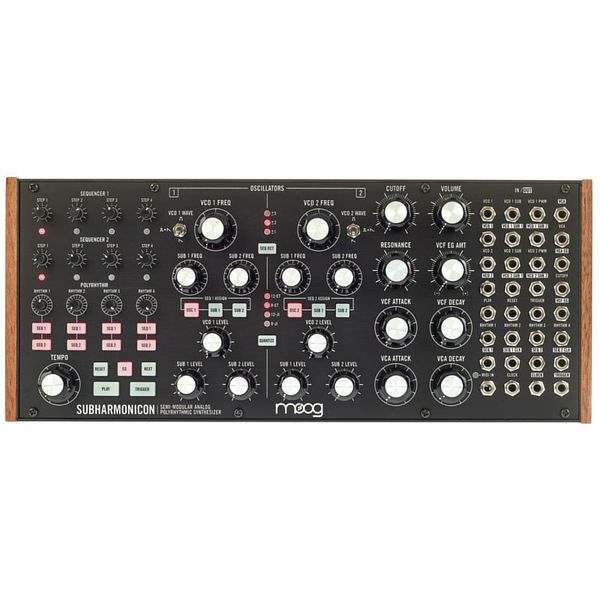

Subharmonicon features:
- Two analogue oscillators with two tunable subharmonic oscillators each
- Resonant Moog ladder filter (low-pass, -24dB/oct.)
- VCA and VCF envelope, each with adjustable attack & decay time
- Two analogue 4-step sequencers with selectable quantisation
- 4 rhythm generators for creating polyrhythmic patterns
- Internal tempo adjustable from 20-3000 BPM
- Patchbay with 17 inputs and 15 outputs (3.5 mm)
- Line/headphone output: 6.3 mm jack
Scope of delivery:
- 1x analogue 4-channel summing mixer with built-in 3-way power distribution incl. 3x power distribution cables.
- 1x 2-tier rack kit
- 1x patch cable organiser
- 1x set of Moog patch cables
- 2x 6.3 mm jack cables
- 1x screwdriver
- 1x Patch textbook and exploratory games
Available since
May 2021
Item number
516077
Sales Unit
1 piece(s)
Design
Desktop
Polyphony
1
Sound Generation
Analogue
MIDI interface
No
Storage Medium
None
USB-port
No
Effects
No
Arpeggiator
No
Number of Analog Outputs
1
Digital Output
No
Display
No
Width
60 TE / HP
Optional Expansions
None
Special Features
Eurorack compatible
