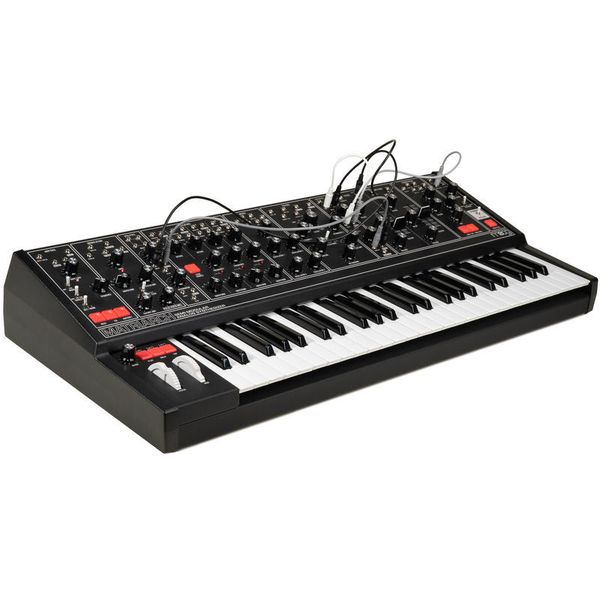

Start 360°
Semi-Modular Synthesizer
- 4-Note paraphone
- With patch option
- Analog sound generation
- 256 Step sequencer
- Arpeggiator
- Stereo ladder filter and stereo analog delay
- Based on the circuits of the Moog modular synthesizers
- 4 Analog oscillators with selectable waveforms
- Mixer with 6 inputs
- 2 Four-stage ADSR
- 3 Bipolar voltage-controlled attenuators with ring modulator function
- 2 Discrete analog VCAs (stereo routed)
- 49 Key keyboard with aftertouch (via MIDI, KBD VEL OUT and KB AT OUT connections)
- Pitch and modulation wheels
- 90 Patch points 3.5 mm on the front and back
- Weight: 10.89 kg
- Dimensions (WxHxD): 812.8 x 139.7 x 361.9 mm
- Colour: Black
- Includes patch cable and external 12V power supply
- Suitable cases: Art. 489955 and art. 479619 (both not included)
- Suitable bag: Art. 489808 (not included)
Connections:
- 2 x Line output 6.3 mm jack
- Stereo headphone output 6.3 mm jack
- 2 x Output 3.5 mm mini jack
- 2 x Delay output
- Sync and CV input 3.5 mm mini jack
- Arpeggiator / sequencer clock input / on-off input / reset and clock
- Output 3.5 mm mini jack
- Instrument input 6.3 mm jack
- MIDI In / Out / Thru
- Expression pedal to CV
- Sustain pedal input
available since
September 2020
Item number
498588
sales unit
1 piece(s)
Number Of Keys
49
Touch-Sensitive
Yes
Aftertouch
Yes
Split Zones
No
Modulation Wheel
Yes
Number of simultaneous Voices
4
Sound Engine
Analogue
MIDI interface
1x In, 1x Out, 1x Thru
Storage Medium
None
USB-port
Yes
Effects
Delay
Arpeggiator
Yes
Number of Analog Outputs
2
Digital Output
No
Display
No
Pedal Connections
1x Pedal, 1x Sustain
Dimensions
813 x 140 x 362 mm
Weight
10,9 kg
