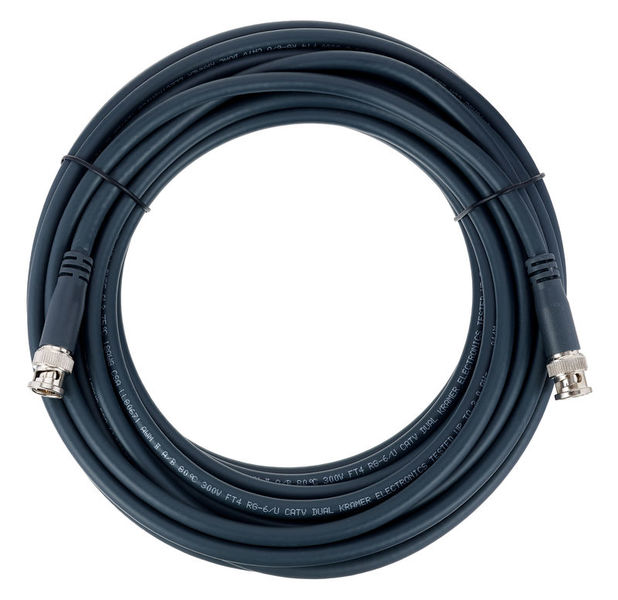

Kramer C-BM/BM-35 Cable 10.7m

3G HD-SDI BNC Coaxial Cable

  • Length: 10.70 m
  • Made from a high-performance RG-6 coaxial cable with 75 Ohm BNC plugs at both ends
  • Inner conductor: 18 AWG solid copper wire
  • Dielectric: Foam skin
  • Shielding: (A) 61% aluminium wire braid 34 AWG, (B) double foil / Mylar with 25% overlap
  • Outer sheath: PVC
  • Colour: Dark grey
  • Inner conductor diameter: 1.0 mm
  • Diameter of dielectric: 4.6 mm
  • Outer diameter: 7.0 mm
  • Impedance: 75 Ohm
  • Ohmic resistance: 21.8 Ohms / km
  • Capacitance: 53.1 pF / m
  • Tested up to 3G

Further Information

Application Video
Input connector BNC male
Output connector BNC male
