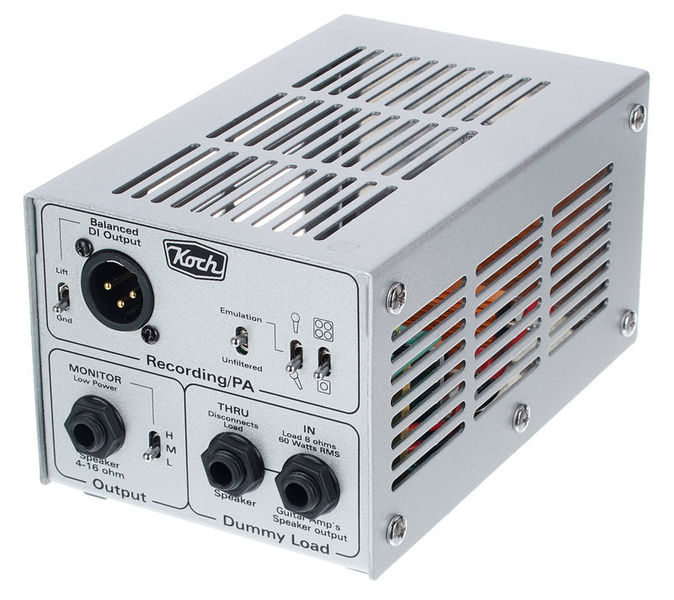

Koch Amps Dummybox Studio/PA

DI Box

  • Dummy Load: 60 W
  • Output volume without losses
  • Monitor output with 3 choosable levels: 5%, 3% and 1%
  • XLR output (600 Ohm)
  • Ground lift switch
  • Switch for filtered and unfiltered output signal
  • Voicing switch for loudspeaker type: 1x 12 or 4x 12
  • Voicing switch for mic position: axis or off axis
  • Dimensions (HxWxD): 18 x 11x 13 cm
  • Weight: 0.5 kg

Further Information

Multi-Channel Unit No
Channels 1
Active / Passive Active
19" No
Pad switchable No
Gnd/Lift switchable Yes
Powered by battery No
Speaker Simulation No
22 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.5 /5
  • features
  • sound
  • quality
Total
features
sound
quality
The best alternative instead of micing amp
LaszloM, 26.11.2013
I was sceptic before I ordered this unit. Guitar amp micing is always a struggle if you don't have studio environment and good isolation. Shouting neighbours, or almost silent amp which doen't deliver the sound...struggle, struggle. Fortunately we are in a world where the combination of analog and digital world can deliver the required results without huge investments.

This box has the basic features: you have to plug in the cable coming from the cabinet output of your amp (8 ohms), you can connect your cabinet via the thru port. It has an option to use the amp at lower volume ( a kind of silencer). It has cab sim option, which is not better but not worse than any other analog cab sims. The main usage by me is to get line level signal (through a mic preamp) into DAW to be able to use cabinet IRs. For this purpose this small passive unit is simply fantastic!! I am able to capture the full amp characteristics (preamp + power amp), and with the proper IR it IS simply the alternative vs miking the amp. And you don't need to buy several mics, preamps, and treat your room. Excellent.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
features
sound
quality
it could be better
fl gp, 26.02.2018
I was expecting a little more from it. It does everything it promises, but sound it is not the same of the amp....
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
features
sound
quality
Excellent
09.06.2016
If you need to record your tube amp directly, without having to use a mike and disturb your neighbours, this box will give you a choice of 2 different emulated cabinets and 2 mike positions. It sounds GREAT, and is very EASY to use. What's not to like?
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
it Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
features
sound
quality
Dummy box e DI
14.01.2016
Fantastica!!! Questa scatolina è un'ottima dummy load e un'eccellente D.I. per poter registrare in casa senza disturbare il vicinato e mantenere intatto il suono delle valvole, o del proprio ampli preferito.
Come Dummy funziona egregiamente, praticamente potete collegare a questa la vostra testata o combo, facendo attenzione a non superare le 60 W di carico massimo che riesce a sopportare, e da questa andare a una cassa e avere il volume attenuato.
C'è uno switch a tre posizione che permette di ottenere tre livelli di volume di uscita.
La funzione D.I. è invece molto interessante per poter registrare, in tal caso è possibile scegliere tra l'opzione di emulazione o no. Per l'emulazione sono disponibili due ulteriori switch, uno dedicato a una simulazione di microfono inclinato o dritto, l'altro su un'emulazione di cassa 1x12 o 4x12.
Ottimo prodotto, il segnale resta limpido, senza fruscii o ronzii e anche i vicini sono più contenti
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
£186
Free shipping incl. VAT
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
