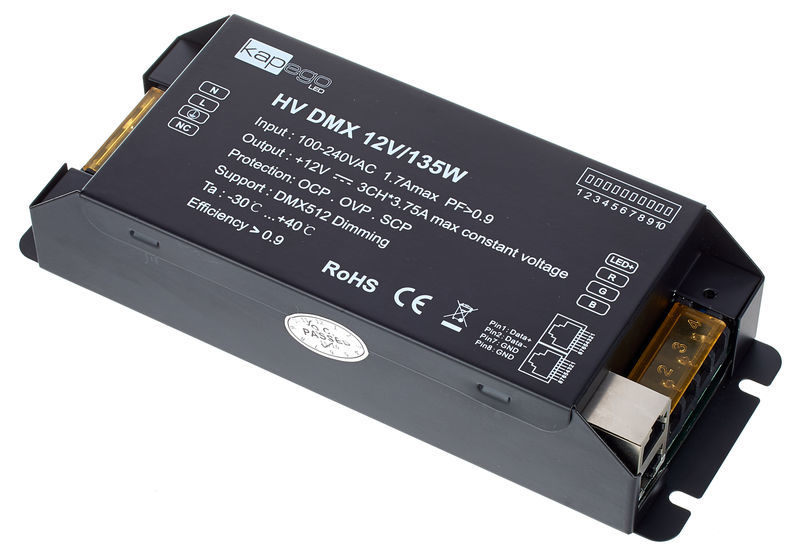

KapegoLED Power Supply HV DMX 12V/135W

Constant Voltage 12 V Power Supply

  • With integrated DMX controller
  • For RGB LED stripes
  • Combines two devices in one and is therefore highly space-efficient
  • Power: 135 W
  • Output voltage: 12 V DC
  • Input voltage: 100-240 V AC / 50-60 Hz
  • Power factor PF: 0.9
  • Protection: IP20
  • Housing: Metal
  • Dimensions (L x W x H): 196 x 75 x 40 mm
  • Weight: 660 g
  • Colour: Black
  • 2.0 m CAT5 cable included
  • Suitable DMX adapter cable: Article number 324327 and number 324326 (both not included)

Note: The installation must be carried out by qualified personnel.

Further Information

Construction Type Power Supply & Controller
Colour mixing RGB
4 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.3 /5
  • quality
Total
quality
something strange with the upper dmx adresses
EgoV, 20.05.2018
I used these to light up some LED strips at a theater show. And we chose this model because it had a build in power supply (some others needed a 230v to 12v external power supply). The only thing that was a not a problem but might be an improvement is that it uses RJ45 instead of XLR's for dmx data.

At first test it worked like you would expect from the description. But when we plugged it in at the show and we needed to put it on another dmx adres than 1 we found out that not all the dip switches worked like we expected which made it hard to configure the dmx adres. I certainly need to look into it more...
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Power Supply
Adromnic, 21.09.2020
Had to light up a set for TV and these power supplies apart from saving me space did a great job. Having a DMX decoder including the power supply is amazing and apart from space they saved me time to install.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Show variations of this product
KapegoLED Power Supply HV DMX 12V/135W
(4)
KapegoLED Power Supply HV DMX 12V/135W

Constant Voltage 12 V Power Supply With integrated DMX controller, For RGB LED stripes, Combines two devices in one and is therefore highly space-efficient, Power: 135 W, Output voltage: 12 V DC,...

  • Secondary Voltage: 12 V
  • Output current in mA: 11250 mA
  • Construction Type: Power Supply & Controller
  • AC/DC: DC
  • Colour mixing: RGB
KapegoLED Power Supply HV DMX 24V/135W
(2)
KapegoLED Power Supply HV DMX 24V/135W

Constant Voltage 24 V Power Supply With integrated DMX controller, For RGB LED Stripes, Combines two devices in one and is therefore very space-saving, Power: 135 W, Output voltage: 24 V DC, Input...

  • Secondary Voltage: 24 V
  • Output current in mA: 5600 mA
  • Construction Type: Power Supply & Controller
  • Colour mixing: RGB
  • AC/DC: DC
