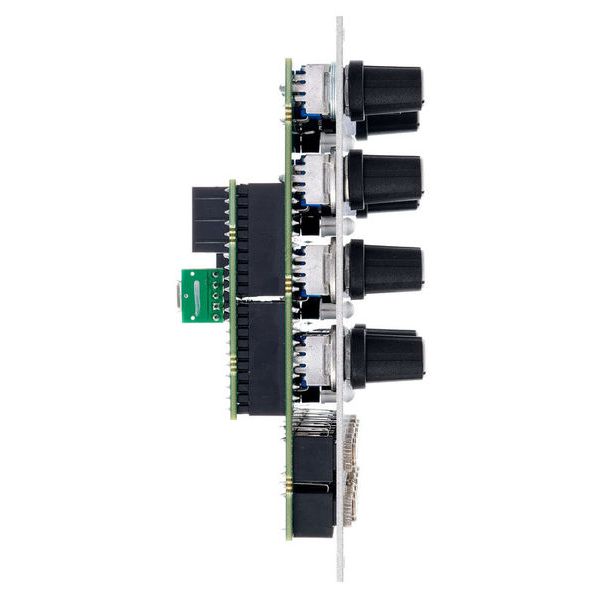

Intellijel Designs Quadrax

Intellijel Quadrax; Eurorack module; quad function and envelope generator; 5 different modes per channel: AD (Attack / Decay), AHR (Attack / Hold / Decay), Cycle, Pulse Burst and morphing LFO; 4 CV inputs which can be assigned to Rise and Fall control of each channel; chaining of multiple channels possible to create complex envelope shapes; adjustable response curve per channel (logarithmic to linear to exponential); Trigger input and signal output per channel; expandable via Intellijel Qx module (item 477994); power consumption: 106mA (+12V) / 9mA (-12V); width: 14 HP; depth: 38mm

Further Information

Width 14 TE / HP

This product is currently sold out

These are other customers' choices:

Make Noise MATHS
24% bought Make Noise MATHS £275
Mutable Instruments Stages
12% bought Mutable Instruments Stages £252
Behringer 140 Dual Envelope/LFO
11% bought Behringer 140 Dual Envelope/LFO £89
XAOC Devices Zadar
11% bought XAOC Devices Zadar £259
Our most popular Envelope Modules
14 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • sound
  • quality
Total
handling
features
sound
quality
Envelopes and complex functions
raindeer, 19.02.2021
The different coloured lights and CV assignment options take a bit of getting used to. But basically this can be either
1. just a simple and easy to use quad AD\AR Envelope and LFO or
2. an amazingly deep source of complex functions and modulation

If you only need #1 then its extremely playable but for #2 there are definitely non-intuitive button combinations and alternate modes to remember to get the full Quadrax value. That is the price of having all this in 14hp.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
sound
quality
sammien, 06.10.2020
Very efficient, high build quality
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality
Verbesserte Version des beliebten 4-fach Funktionsgenerators
Tos , 10.01.2020
War der Vorgänger Quadra schon ein Modul, dass in keinem Eurorack System fehlen durfte, bietet der Quadrax nun – bei nur 2 hp mehr Platzbedarf – erheblich mehr Funktionalität: Insbesondere können Kanäle nun wahlweise auch als Burst Generator arbeiten, intern (ohne einen auch schon früher erhältlichen Expander) für komplexere Hüllkurven verkettet werden, und es können bis zu 4 Parameter spannungsgesteuert werden. War die Kurvenform im Vorgänger nur schaltbar zwischen linear und logarithmisch, ist sie hier stufenlos regelbar – und zwar auch in den exponentiellen Bereich. Bursts können nicht nur in Anzahl und Form eingestellt, sondern auch mit ab- oder anschwellender Amplitude erzeugt werden.
Der größere Funktionsumfang bedingt zwar etwas mehr Einarbeitung – so erfordert die Kompaktheit beispielsweise verschiedenfarbig leuchtende Taster, aber für Menschen ohne Farbwahrnehmungsprobleme ist das Modul durchaus beherrschbar. Die Konfiguration bleibt nach einem Powercycle erhalten.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality
Très bonne source de modulation
Gangrn, 26.09.2020
C'est mon générateur d'envelope principale (ou devant le Maths)

Son gros point fort pour moi et de pouvoir modifier la courbe de l'envelope sans changer sa durée. On peut obtenir des modulations très complexes et intéressantes grace à la cross modulation et les entrès CV
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
