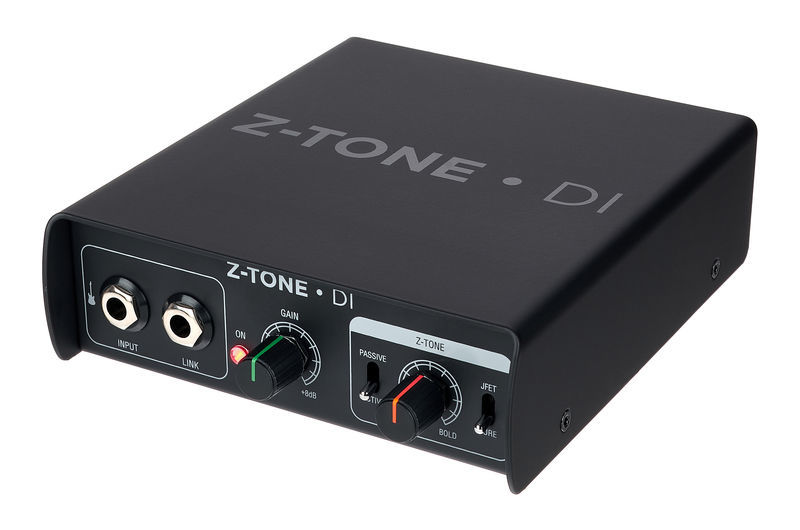

IK Multimedia Z-Tone DI

Active guitar DI and split box

  • Specially designed for guitarists
  • Switching for active and passive pickups
  • PURE channel for clear sound
  • JFET circuit for subtle harmonic additions
  • Z-tone control with variable impedance enables a wide tonal range
  • 20 dB pad to expand the range of applications
  • Ground lift switch
  • Input: 6.35 mm jack unbalanced
  • Link output: 1/4" jack unbalanced
  • Output: 6.35 mm jack unbalanced, XLR balanced
  • Power supply: 9V battery
  • 48 V phantom power via XLR connection (6.5 mA)
  • Dimensions: 158 x 137 x 45 mm
  • Weight: 950 g
  • Incldues extensive software package AmpliTube 4 and AmpliTube 5 SE as download from the manufacturer / app store

Further Information

Multi-Channel Unit No
Channels 1
Active / Passive Active
19" No
Pad switchable Yes
Gnd/Lift switchable Yes
Powered by battery Yes
Speaker Simulation No

These are other customers' choices:

Customers who looked at this item have bought these:

IK Multimedia Z-Tone DI
50% bought this exact product
IK Multimedia Z-Tone DI
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
£104 Add to Basket
IK Multimedia Z-Tone Buffer Boost
9% bought IK Multimedia Z-Tone Buffer Boost £116
5% bought Palmer DACCAPO £55
DSM & Humboldt Simplifier Amp/Cab Simulator
4% bought DSM & Humboldt Simplifier Amp/Cab Simulator £279
Palmer PAN 01
3% bought Palmer PAN 01 £36
Our most popular DI Boxes
3 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • features
  • sound
  • quality
Great DI for recording all kinds of stuff, highly recommended!
Alice G, 13.05.2021
Okay, so a guitarist friend recommended me to get some of these DI boxes for the cleanest possible recording of hardware synth modules.
I've been struggling with noise, feedback, crosstalk from my midi modules for a couple years now and honestly, these DI boxes seem to be my ticket for the cleanest possible recordings to start with.

It's great for the cleanest audio signal transmission from just about anything that's got jack outputs, from analogue synths to electric lead and bass guitars, with even a ground lift switch specifically for devices that suffer from ground loop interference.
If using the ground lift switch causes a buzz, then for your specific audio source you don't need to use it and it's best left off.
There's also a -20dB attenuation switch at the back for audio sources that are enormously loud to begin with.

The gain knob's pretty self-explanatory, it goes from -8dB to +8dB and snaps in place when set to the middle.
You can flip the Passive/Active switch to best reflect your ideal settings for your particular guitar pickups.

There's a few sound-shaping options like the Z-Tone knob and the JFET transistor switch.

The Z-Tone knob goes from left to right, with the middle setting being neutral.
Going all the way left to "sharp" emphasises the higher frequencies from your instrument a bit and helps maintain a crisp tone to them, while going all the way to the right to "bold" boosts the mids and bass a bit, seeming to fatten up the sound there.
When recording rhythm guitar tracks you can play around with these settings for each individual track to further diversify the tone of your sound right from the source.

Finally the JFET/Pure switch basically allows you to activate the JFET transistor circuit, which has a slight addition of midrange "warmness", whilst the Pure circuit preserves the original audio signal just the way it is without any additional colouration.

This last aspect is something that many other DI boxes, even the best, from other companies have been criticised for: the users rarely if ever had any control over how the sound they input was coloured, which is a welcome change here with IK Multimedia's box.

The front inputs are pretty basic: you insert a typical 1/4" audio jack into the left one as a mono source, and on the right there's the "Link" input which allows you to mix it with another sound.

The back outputs are also pretty simple, but distinctive:
The balanced output is an XLR microphone output, which can work out pretty well with most USB audio interfaces that support them.
The XLR microphone input on such audio interfaces also acts as a power supply when 48V phantom power is engaged.

But on the other hand there's also a 1/4" jack output that works well with the typical guitar amplifier, in case you're outputting your guitar signal to one.
The catch with the latter approach is you'll need to use a 9 Volt battery, for which there's also a slot on the back that you can safely insert it in.

Now that that's out of the way, I can safely say that the build quality for these boxes is pretty great.
They're built like a tank and can take some abuse (which I wouldn't advise giving them, but hey).

If there's any slight cons I can give this box it's that the Z-Tone knob doesn't have the same snap in the middle part that the gain knob has, but whether that's a problem for you depends mostly on personal taste.

The free Amplitube 5 SE voucher you get with this is a nice bonus and a great opportunity to start testing guitar tones with, but I suppose people with the kind of cash for these kinds of boxes already have much better hardware and/or software in stock.

Great hardware, warmly recommended and I wish I'd thought of getting it much sooner.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
nl Original review (Show translation)
Unfortunately there was an error. Please try again later.
Veelzijdige Gitaar DI
GuitarBart, 22.12.2020
Ik was opzoek naar een DI box voornamelijk om later elektrische gitaar weer te kunnen reampen. Na het checken van een aantal features kwam ik de nieuwe Z-Tone DI tegen. Omdat deze specifiek is gericht op gitaristen heb ik de IK optie gekozen.

Het is een veelzijdige DI met sterke metalen behuizing. Voor de voeding gebruik ik de phantom power, maar een batterij is ook mogelijk. Met de Z-Tone optie kun je schakelen tussen passieve en actieve pickups, maar je kan ook het karakter van je pickups iets aanpassen (ideaal voor VST amp sims) van sharp naar bold. Er zit ook een JFET swtich op om de DI maar "gekleurd" en analoog te laten klinken.

Vergeleken met het inpluggen van de gitaar direct in de interface maakt het vooral een groot verschil met amp simulators. Deze klinken natuurlijker en door de Sharp/Bold functie kan ik afhankelijk van de gitaar de pickup sound aanpassen.

Ik heb het nog niet getest, maar er zijn video's online waarbij mensen deze ook gebruiken om te reampen (balanced in vanaf de interface naar de DI en dan de output van de DI naar de input van de versterker). Hierdoor is een extra losse reamp box ook niet meer nodig.

+ Veel functies, van neutrale DI naar veelzijdige instelling
+ stevige behuizing
+ bij registratie IK's Amplitube software gratis (4 en 5SE)
+ scherp geprijsd vergeleken soortgelijke DI's

- nog geen minpunten kunnen ontdekken, aanrader
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Vielseitig, guter Sound und top solide
GertR, 28.12.2020
Ich habe die IK Multimedia Z-Tone DI Box vor Allem wegen der vielfältigen Einstellmöglichkeiten gekauft. Stromversorgung durch Batterie oder Phantomspeisung., z.B.
Wer die Klangunterschiede bei Instrumenten kennt, die durch die verwendeten, unterschiedlichen Kabel entstehen können, wird sich vorstellen können, daß ich ähnliche Unterschiede hier an dieser DI Box durch die Drehung eines Reglers durchführen kann, der die Eingangsimpedanz verändert. Der Sound ändert sich dadurch von durchsichtig und schlank in Richtung warmer, voller Sound mit etwas weniger Höhenanteil.
Da ich die Z-Tone DI Box für ein OUD mit Piezotonabnehmer verwende, ist das sehr hilfreich, da ich damit bereits ohne Mischpult eine Klangbeeinflußung vornehmen kann.
Obendrein noch die Möglichkeit der Umschaltung zwischen PURE und JFET, die zwischen dem "puren" Sound und einem "warmen", leicht nach Röhre klingendem Sound umschaltet.
Vielseitig mit gutem Klang also das Ganze und obendrein extrem solide gebaut.
Der Preis von nur 115,-€ ist sowieso der
Der einzige Minuspunkt, den ich vergeben würde, ist der Tatsache geschuldet, daß die Potis auf der Frontseite recht weit herausschauen und zum Transport entsprechende Vorsicht bzw. eine gute Verpackung von Nöten ist - und besonders klein ist es auch nicht (na, irgendwo müssen die ganzen Schalter und Potis ja auch hin).
Ansonsten bin ich sehr zufrieden mit dem Teil...
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Including VAT; Excluding £8 shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Your Contacts
Phone: +49-9546-9223-35
FAX: +49-9546-9223-24
Phone: +49-9546-9223-30
FAX: +49-9546-922328
Phone: +49-9546-9223-20
FAX: +49-9546-9223-24

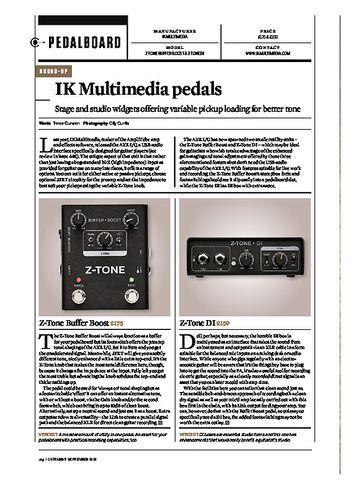

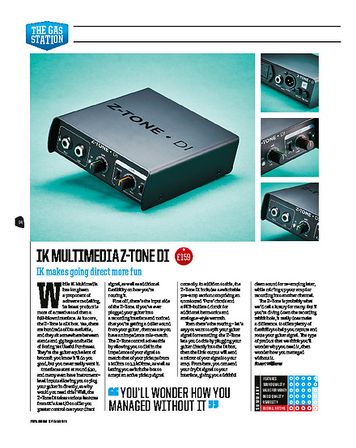

Test Report
