ETC S4WRD Retrofit Kit

LED Retrofit Kit

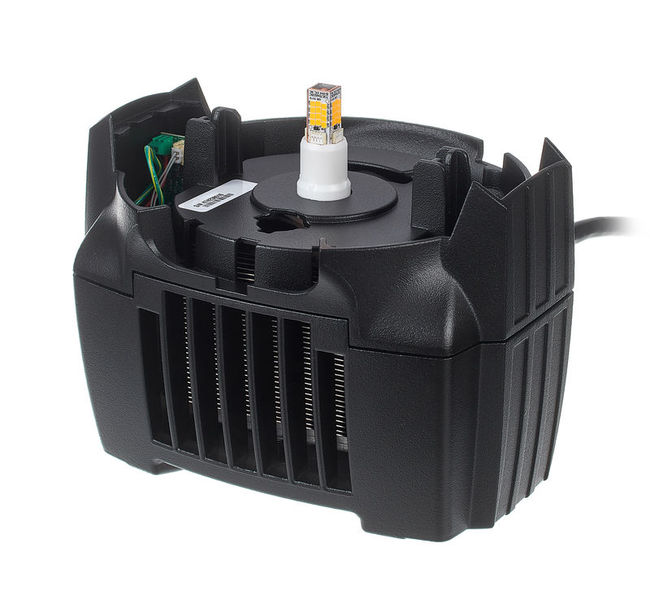

ETC Source 4WRD LED (Watt Reduction Device) is a replacement for a standard source four burner assembly, which converts the HPL light source into a white light LED. The quick and easy conversion is nondestructive and takes less than a minute (in most cases it can even be done without changing the focus of the device). Source 4WRD LED can be dimmed theatrically via DMX, and is also line-dimmable with a conventional LED curve. Designed to convert any Source Four to LED (not for Source Four PAR / Nel Fresnel or JR). The output power is just as bright or brighter than that of a 575 W HPL lamp with a longer service life, lower energy costs, less heat emission and no lamp replacement.

• Robust construction made of die-cast aluminium
• Seven-segment display for easy DMX setup
• Two-button user interface
• Includes detached 1 m cable (without plug)

Technical specifications:

• LED type: 4 x Cree LEDs
• Colour temperature: 3200 K
• Max. Luminous flux: 9909 lm
• Colour rendering index: 80
• Beam angle: Dependent on the lens tube used (available separately)
• Power supply: 209 - 252 V 50 Hz
• Power consumption: 175 W
• Number of DMX channels: 1
• DMX connector: DMX input and output via RJ45 connection
• Quiet fan cooling (28 dBa @ 1 m)
• Protection: IP20, for indoor use only
• Dimensions (H x W x D): 142 x 178 x 160 mm
• Weight: 1.69 kg

Important: The LED lamp is fragile and must not be touched!
