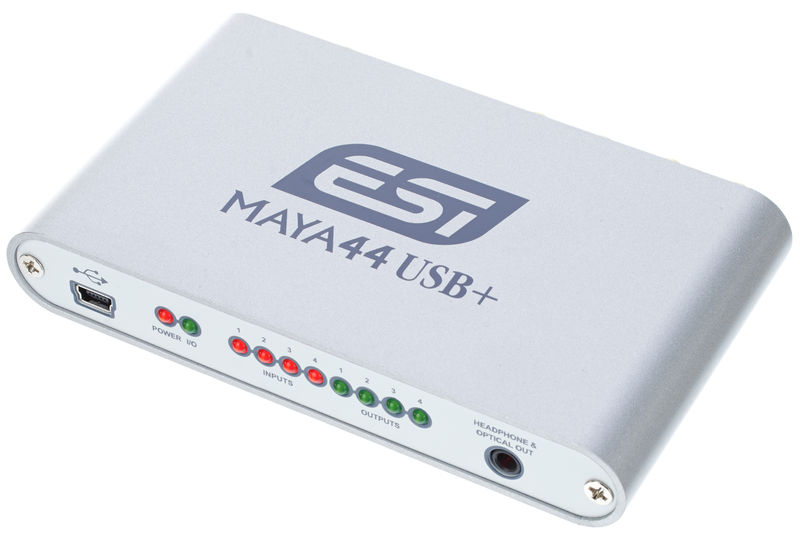

ESI Maya 44 USB+

145

USB Audio Interface

  • With up to 48 kHz sample rate
  • 4 inputs and 4 outputs with cinch connections
  • 18-bit A / D converter
  • 20-bit D / A converter
  • -10 dBV input and output level (unbalanced)
  • Optical S / PDIF digital output with mini plug connection
  • Headphone output with 3.5 mm jack socket
  • With integrated 60 mW amplifier
  • ASIO 2.0 / CoreAudio support / MME and WDM support (4 input / 4 output channels)
  • Standard USB connection to PC or Mac
  • Compatible with Windows and Mac OS
  • Compact and lightweight aluminum housing
  • Dimensions: 120 x 70 x 20 mm
Recording / Playback Channels 4x4
Number of Mic Inputs 0
Number of Line Inputs 4
Number of Instrument Inputs 0
Number of Line Outs 4
Headphone Outs 1
Phantom power No
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface No
Word Clock No
Max. sample rate (kHz) 48 kHz
Max. resolution in bit 16 bit
USB Bus-Powered Yes
Incl. power supply No
USB Version 1.1
Width in mm 120 mm
Depth in mm 70 mm
Height in mm 20 mm
available since March 2007
Item number 111455
Included in delivery USB cable
£88
Including VAT; Excluding £8 shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
1
188 Sales Rank
R
Cheap but noisy
Regebro 13.08.2017
I have an old Delta 101LT internal sound card which has quite a lot of noise from the computer. I was hoping to get a more silent sound card by using a USB one, that sits away from all the internal RF of the computer.

But it turns out this is in fact much more noisy than the Delta 1010LT. I didn't measure it exactly, but the noise level was at least the double, ie 6db more. The internal sound card has "scratches and pops" clearly coming from the computer, while the Maya 44 USB+ has a white/pink noise hiss, so the hiss clearly comes from the analog circuitry in the USB box.

Also the installation of the control panel didn't work for me, but you can use it anyway, just not change things as latency, etc. Had it been less noisy I would have spent more time trying to fix that.

Positives: Cheap, build quality seems fine, it feels solid, ESB's website is good and has manuals and drivers.

This can work for applications where the noise isn't a big problem, such as transferring demos from old 4-track cassette recorders etc, or live recordings, but I wouldn't recommend it for a home studio.
quality
features
handling
sound
1
0
Report

Report

CK
ESI Maya 44 USB+ - Review - Karasu C.
Ceyhun K. 20.05.2014
Very easy to use and is instantly detected by your computer. I tried it on 3 different computers and it directly instaled it without driver CD. Very usefull for DJ'ing with softwares like NI Traktor. It is very compact and fits in every pocket of your bag.
quality
features
handling
sound
2
0
Report

Report

w
Minimal
wrngfrnk 15.01.2019
Does nothing more and nothing less than what it's supposed to.

_THE_ interface for xwax-based timecode setups. Worked flawlessly with Linux Mint and Mixxx, just plug and play.

No complaints about the sound quality.
Superb build quality, extremely portable. Just great, really, especially considering the price.
quality
features
handling
sound
0
0
Report

Report

J
Nice unit Plug & Play
Johnf52 15.08.2020
Good quality plug & play unit. No issues. Might be nice if it had jack outs for Pro use.
