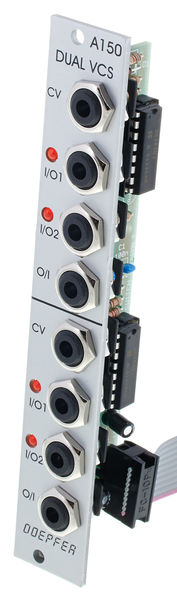

Doepfer A-150

Dual VCS Module

  • Two voltage-controlled switches
  • Voltages of -8V to + 8V can be processed
  • Two LEDs
  • Euro rack format
  • Power requirements: +30 mA (+12V) / -10 mA (-12V)
  • Width: 4 HP / 20.0 mm
  • Depth: 30 mm (measured from the rear of the front panel)

Further Information

Width 4 TE / HP
15 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.8 /5
  • handling
  • features
  • quality
Total
A simple and affordable module with countless uses
Zoë, 07.03.2014
This small, unassuming module is useful for all sorts of things. The trick is to think as laterally as possible, which is always good advice when using a modular synthesiser.

When feeding it a slow gate, such as the accent from a TB-303 style step sequencer, you can make certain notes have quirky features. For example, most notes can go through a filter's low-pass mode, while accented ones go through its high-pass mode. Or most notes can be square waves while the accented ones are sawtooth waves.

But the distinction between a control voltage and an audio signal is arbitrary. Audible, even tuned square waves can be thought of as very fast gates. So using an oscillator's square wave output, you can alternate between waveforms and filter types and anything else you can imagine so fast that you can play a melody on the alternation itself, making bizarre new waveforms in the process.

Indeed, using nothing more than an A-110 and an A-150, you can create waveforms that are, say, sawtooth for the first part of the cycle and triangle for the second part, with the pulsewidth dictating when the switch occurs. That's pretty West Coast for such an ostensibly East Coast synthesiser.

I'd recommend this module to anyone who likes thinking laterally, as it can add new dimensions to even the simplest of other modules.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
quality
Good low cost cv switch for eurorack
J Synth, 04.12.2019
It is useful for switching between cv signals in a eurorack system, with a surprising amount of uses. A small module, but benefical noetheless.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
quality
doepfer dual switches
shby, 24.07.2019
Nickel pour du contrôle de CV.
Pour de l'audio, ça marche mais pas de buffer donc quelques glitches ou clicks lors du changement de circuit.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
se Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
Simple to use Switch
vurt, 18.11.2017
This a great no-nonsense and simple to use dual Switch. I use it to switch between waveforms on a VCO or to switch stereo samples on a Disting (e.g two different drum sounds in each channel, CV into the Switch varies between the two samples).
I'd not use A-150 as the only Switch since it's functionality is a bit limited especially in comparison to something like A-152 (which is a lot larger).

Overall you can't go wrong with this module and it's simple to find uses for it in most patches.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
