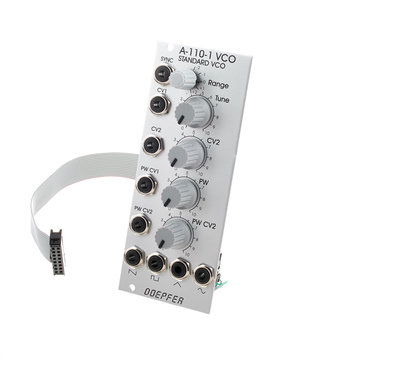

Doepfer A-110-1

Standard VCO for Modular System A-100Module A-110-1 (VCO) is a voltage controlled oscillator. The A-110-1 produces frequencies in a range of about 8 octaves, of which four waveforms are available simultaneously: pulse, sawtooth, triangle and sine wave.

The frequency of the VCO is determined by the position of the range switch and tune controller and the control voltages at the CV inputs. Thus, the VCO provides the possibility of frequency modulation. You can set the footage (octave of the fundamental) with the selector switch. The Tune control is used to fine tune the VCO frequency.

In the pulse wave the pulse width can be adjusted manually or by voltage control or modulated (PWM).

  • Width: 10 HP/ 50.5 mm
  • Depth: 55 mm (measured from the rear of the front panel)
  • Power requirements: +90 mA (+12V)/ -20 mA (-12V)
No JavaScript? No Audio Samples! :-(

Sound samples


0:00
  • FM
  • PW
  • PW - Mod
  • PW - Mod - LFO
  • Saw
  • Sine
  • Tri

These are other customers' choices:

Customers who looked at this item have bought these:

Doepfer A-110-1
32% bought this exact product
Doepfer A-110-1
Available shortly (2-5 days)
Available shortly (2-5 days)

This item has been ordered with our suppliers and should be in our warehouse in the next few days.

Standard Delivery Times
€139 Add to Cart
Doepfer A-110-2
18% bought Doepfer A-110-2 €119
Mutable Instruments Plaits
10% bought Mutable Instruments Plaits €222
Studio Electronics Quadnic
9% bought Studio Electronics Quadnic €289
Erica Synths Pico VCO
7% bought Erica Synths Pico VCO €115
Our most popular Oscillator Modules
62 customer ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.6 / 5.0
  • handling
  • features
  • quality
24 written ratings Read all reviews
Total

Doepfer A-110 Standard VCO

Blair, 03.11.2013
When I first became interested in modular synthesis I bought one of these, and liked it so much I bought another! The A-110 is probably the cheapest vco available, but delivers a decent audio performance, and offers a wide sound palette. It is saw-wave based, and offers another three wave shapes: sine , pulse and triangle. CV baed modulation of frequency and pulse width is available. According to the manual, the sine and triangle waveforms are not true, but derived from the saw wave. In practice all the waveforms sounded good to me. A pair of A-110's track very well together, and deliver good hard sync and FM results.

Other things I liked about the A-110:
* it was well calibrated on delivery and it achieves stable tuning within 5 minutes.
* At 10HP it is perhaps wider than it needs to be, but the control knobs are easy to use.

Room for improvement:
* The fine tuning range is not enough to tune one A-110 a musical interval above another vco, for instance a 4th or a 5th. I understand that there is a modification that can be made to the circuit board, but I feel the module should come set up this way.
* The A-110 cycles down to 15hz, which is not quite low enough to act as an LFO.

However, for the price this VCO is an absolute bargain. I bought the A-110 as a 'starter' vco, thinking I would sell or trade it when I could afford a more expensive vco. Instead I kept it, and bought another.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total

The old one's are the best

Wayne M., 01.09.2013
The A-110 is still the staple VCO of many modular synths. A tried and tested design that never ceases to impress. Ideal for first timers too!
