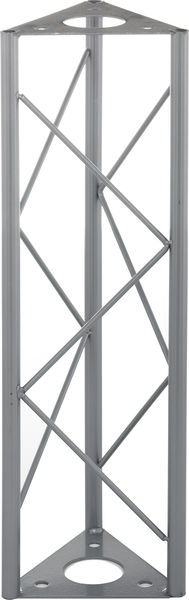

Decotruss 3 Point Truss Silver 47cm

Deco Truss

Through a variety of trusses and corners you can create fantastic structures. Decotruss is suitable to create individual design elements, such as shopfitting and trade show booths. Decotruss constructions can be used as design elements and for low weight installations.

  • Length: 47 cm
  • Colour: Silver (aluminium)
  • The decorative trussing
  • Easy installation
  • The Decotruss elements can be screwed together with the connecting plates using three M8 screws
  • Please note the applicable trussing construction guidelines
  • Max. distributed section load: 35 kg
  • Longitudinal tubes: 15 x 1 mm
  • Crossbars: 5 mm
  • Dimensions: 470 x 150 x 130 mm
  • Optional connector kit / set of screws: Article Nr. 509495

Further Information

Feature Straight
Lenght or diameter 47 cm
Tailings 2
Colour Silver
System Decotruss
5 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4 /5
  • quality
Total
quality
Detours short section review
UK Beachboys, 16.05.2015
Thomann asked me to rate this product as I have quite a few lengths of this range of trussing.

I've no idea why the manufacturer produces two different short lengths - 45 and 47cm, but don't do a 50cm length - but for my purposes, this is ideal.

There are a couple of important points to note - the cross bracing extends to almost the end plates to keep the angles correct - which does mean that getting a spanner in is slightly more tricky, and if you are using M10 wing nuts, as I sometimes do, getting them to rotate means they need to be touching the end plate - you cannot put a bolt through and spin them down, the bracing gets in the way.

This range is NOT aluminium. This isn't that clear in the text, but the truss is steel, coated with decent amounts of paint. Some of the welds are a little rough, and in a couple of mine, the actual gap is quite wide, with the weld used as a filler. Keeping in mind the fact that this truss is carefully described as decorative, there are no issues with strength. Being steel, all the lengths, including the 2m length are extremely stiff and do not flex. The weak link, that makes them unsuitable for supporting heavy loads, is the coupling system. The 3 chords are welded to triangular steel; end plates, with a large centre hole, and 3 holes for M10 bolts. If you join two lengths of truss and apply force, these end plates will flex, and if you push this, they bend. I am using them vertically, attached to 600mm2 base plates and supporting light weight LED fixtures. There is not issue with rigidity on the 47cm, 1m and 1.5m lengths. The 2m length fixed vertically does flex the bottom plate very slightly. The shorter sections show no issues at all with a load of 9Kg. Thomann and the manufacturer make it very clear that this truss is not designed to support loads, but my calculations show that my usage is within the capabilities of the truss design, as the manufacturer makes a number of additional components to support more interesting truss shapes. I am happy using the truss vertically, and using 2m top horizontal spans supported by 4 legs produces a strong structure with the ability to support (as mentioned in the manufacturers details) lightweight lighting - using purpose made G clamps to fit the tube. These short sections can easily add useful height to these structures, or as in my most common usage, a nice way to get an LED fixture off the ground.

The actual colour should really be described as grey, not silver, as it's a certainly not the silver aluminium type colour, but is slightly darker. I will certainly buy more of this product.

The manual give no loading figures whatsoever, but looking at the weights of the corners, bends and other coupling pieces, it is easy to see the truss is strong enough to support such a load.

I normally use it with 8 pieces mounted vertically on base plates, with an LED uplighter at the bottom of each one, and a moving head on the top.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Pas mal
Cyril421, 05.10.2012
Que dire d'un bout de métal. Les soudures sont propres mais bien légères. C'est bien peint. C'est pas toujours perpendiculaire. Ca soutient mon poids en statique c'est à dire quand je me pend dessus pour tester. Je n'ai pas fait d'essai dynamique (en faisant le singe). Ca suffit largement pour pendre des projos tant qu'ils restent à hauteur de 2m50. Ce n'est clairement pas du matériel professionnel. Il ne faut pas s'en servir en hauteur dans une grande salle car c'est trop léger et cela ne correspond pas aux normes de sécurité.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Decotruss und mehr zum fairen Preis
David858, 23.12.2009
Nutze die Decotruss als Abhörmonitorständer für meine JBL Control 1 Pro. Die Verarbeitung ist klasse und auch die Stabilität ist sehr gut. Bin sehr zufrieden und kann sie nur weiter empfehlen! 5 Sterne :-)
