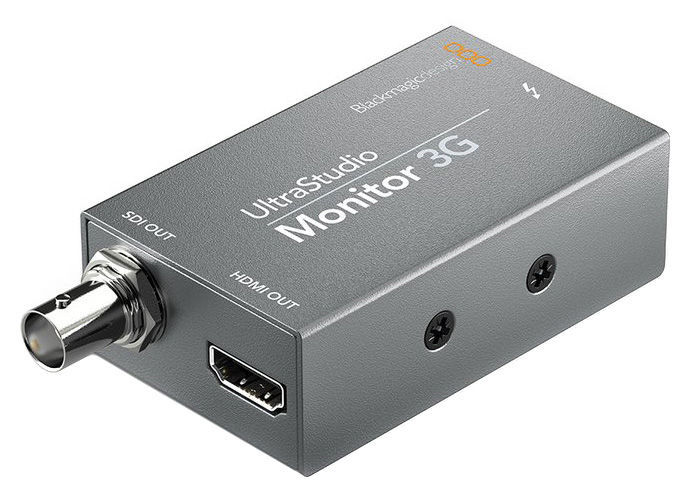

Blackmagic Design UltraStudio Monitor 3G

Video Output Device

  • For 3G SDI and HDMI playback via Thunderbolt 3-equipped laptops or desktop computers
  • Supports professional SDI and HDMI monitoring in 10-bit broadcast quality of material from common editing software such as DaVinci Resolve, Final Cut Pro X, Media Composer and Adobe Premiere Pro CC, as well as top-end broadcast graphics and titling systems
  • SDI video outputs: 1x SDI rates 270 Mbit, 1.5G, 3G
  • SDI audio outputs 16x channels embedded in SD/HD
  • HDMI video outputs: 1x
  • HDMI audio outputs: 8x channels embedded in SD/HD
  • Computer interface: Thunderbolt 3 (Mac OS, Windows and Linux)
  • Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, uncompressed 8 bit 4: 2:2, uncompressed 10 bit 4:2:2, uncompressed 10 bit 4:4:4
  • Included software: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic drivers for Mac OS and Windows Media Express, Blackmagic Desktop Video Utility and Blackmagic drivers for Linux
  • Supported software applications: DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC, Adobe Character Animator CC, Avid Media Composer, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Livestream Studio, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika
  • SDI - SD video standards: - 525i/59.94 NTSC, 625i/50 PAL
  • SDI - HD video standards: 20p/50; 720p/59.94; 720p/60 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60; 1080PsF/23.98; 1080PsF/24; 1080PsF/25; 1080PsF/29.97; 1080PsF/30 1080i/50; 1080i/59.94; 1080i/60SDI - 2K video standards: 2Kp/23.98 DCI; 2Kp/24 DCI; 2Kp/25 DCI; 2Kp/29.97 DCI; 2Kp/30 DCI; 2Kp/50 DCI; 2Kp/59.94 DCI; 2Kp/60 DCI 2KPsF/23.98 DCI; 2KPsF/24 DCI; 2KPsF/25 DCI; 2KPsF/29.97 DCI; 2KPsF30 DCI
  • SDI compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108-1
  • Metadata support via SDI RP 188/SMPTE 12M-2 and Closed Captioning
  • SDI audio sampling rate: Standard television sampling rate of 48 kHz and 24 bits
  • SDI video sampling frequency: 4:2:2, 4:4:4
  • SDI colour accuracy: 8-, 10- and 12-bit RGB 4:4:4 up to 1080p/30 and 8- and 10-bit YUV 4:2:2 in all standards
  • SDI colour spaces: Rec. 601, Rec. 709, Rec. 2020
  • HDR support via SDI: HDR metadata packing, HLG and PQ transfer features
  • Multi-rate support SDI video connection is switchable between SD and HD
  • HDMI - SD video standards: 525i/59.94 NTSC, 625i/50 PAL
  • HDMI - HD video standards: 720p/50; 720p/59.94; 720p/60 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60 1080i/50; 1080i/59.94; 1080i/60
  • HDMI audio sampling rate: Standard TV sampling rate of 48 kHz and 24 bit
  • HDMI video sampling frequency: 4:2:2 and 4:4:4
  • HDMI colour accuracy: 10- and 12-bit RGB 4:4:4 up to 1080p/30 and 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards
  • HDMI configuration: HDMI 2.0a supports Deep Colour and HDR
  • Automatically configures itself with the connected display
  • HDMI colour space: Rec. 601, Rec. 709, Rec. 2020
  • HDR support via HDMI: HDR metadata packing, HLG and PQ transfer features
  • Multirate support: SDI video connection is switchable between SD and HD
  • Hardware frame buffers: V210 (10-bit YUV), 2VUY (8-bit YUV), ARGB, BGRA (8-bit RGB), R210 (10-bit RGB), R12B, R12L (12-bit RGB)
  • Dimensions: 92 x 45 x 25 mm
  • Weight: 160 g

Note: Requires a computer equipped with Thunderbolt 3 USB-C port.

These are other customers' choices:

Customers who looked at this item have bought these:

Blackmagic Design UltraStudio Monitor 3G
58% bought this exact product
Blackmagic Design UltraStudio Monitor 3G
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
£95 Add to Basket
Blackmagic Design UltraStudio Recorder 3G
28% bought Blackmagic Design UltraStudio Recorder 3G £95
Blackmagic Design DeckLink Duo 2
3% bought Blackmagic Design DeckLink Duo 2 £385
Blackmagic Design DeckLink Mini Monitor 4K
3% bought Blackmagic Design DeckLink Mini Monitor 4K £155
Blackmagic Design Decklink 8K Pro
2% bought Blackmagic Design Decklink 8K Pro £499
Our most popular IO-Hardware
9 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.6 /5
  • picture/sound
  • quality
Total
picture/sound
quality
Good New version
AlvaroGallego, 14.07.2021
Works really well if you have thunderbolt 3 and need to display 1080p HDMI maximum, if you are working with SDI you can send up to 2K to your monitor
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
picture/sound
quality
Does the job
Angelos Michalopoulos, 25.03.2021
I wish they add a loopback port. Beware: It does not support TB hubs at the moment.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
picture/sound
quality
Fait le job sortie video sur ecran externe
Nicolas M. 596, 11.10.2020
Utilisé sur macbookpro 16" en thunderbolt 3. Il permet de voir la video éditée sur premiere, final cut et resolve sur un ecran externe hdmi et hd sdi mais aussi sur les deux en meme temps. pour l'installation il faut installer deux fois de suite, dans votre logiciel choisir alors la sortie bm ultrastudio 3g. Que du full hd pas de 4k ou plus. Le prix est vraiment sympa et la qualité au rendez vous. Bien sur la livraison est la plus rapide et par le serieux ups. Merci thomann
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
picture/sound
quality
Klasse Monitoring Lösung für das kleine Geld
BESEN, 08.11.2020
Plug and Play. Externer Monitor angeschlossen über TB3. Desktop Video installiert. Keine Probleme. Sehr empfehlenswert wenn einer günstige Lösung sein soll. Allerdings leider kein 4K, daher Output Monitoring in Resolve auf 1080p stellen.
