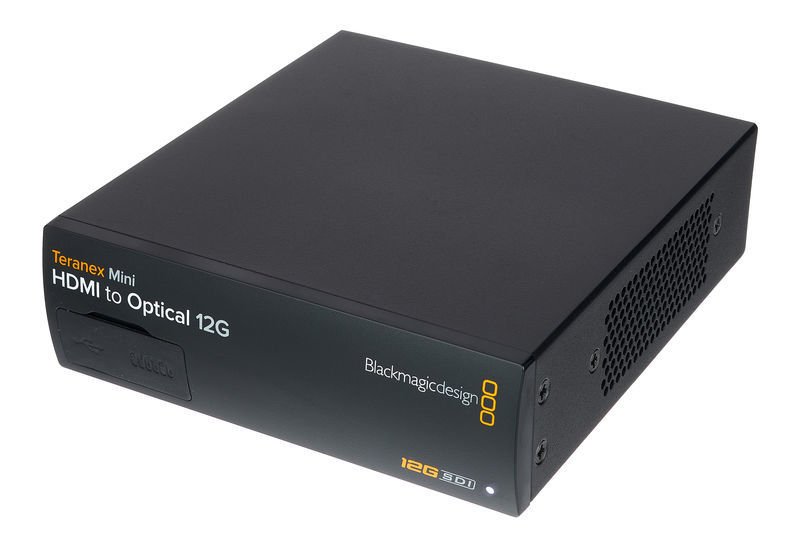

Blackmagic Design Teranex Mini HDMI-Optical 12G

Converter from HDMI to 12G Fibre and 12G-SDI

  • Works with all video formats including SD, HD, 6G and 12G-SDI
  • With up-converter for converting HD to Ultra HD
  • Embeds balanced analogue or AES/EBU, time code signals and SDI
  • Ideal for converting signals from HDMI consumer cameras to SDI or for providing computers with HDMI connections with extra SDI outputs
  • Ethernet interface for remote administration and control
  • Optional Smart Panel (article no. 485905) enables expansion to include LCD image control and key control
  • Support for embedded audio: 16 Channels
  • Multi-rate support: Automatically switch between SD/HD/2K and 4K
  • Dimensions (W x H x D): 140 x 44 x 170 mm
  • Weight: 580 g

Connectors:

  • SDI video inputs: Optional 3G/6G/12G fibre-optic SFP input
  • SDI video output: 1 x 12G-SDI
  • HDMI video input: 1 HDMI 2.0 Type A connector with support for 2160p/60
  • Fibre-optic connection (optional): Optional 3G/6G/12G fibre-optic SFP output
  • Fibre-optic video outputs: Automatically adjusts SD, HD, and 12G-SDI HDMI video input
  • Analogue audio inputs: 2 Channels of balanced analogue audio via XLR connectors
  • Right XLR socket configurable for time code input
  • Digital audio inputs: 4 Channels of professional balanced 110O digital audio via XLR connectors
  • Right XLR socket configurable for time code input

Note: IEC power cord and fibre-optic SFP modules not included. SMPTE-compatible SFP modules available for 3G-SDI (article no. 494761), 6G-SDI (article no. 494763) or 12G-SDI (article no. 494764)

Note: It is not possible to record copy-protected HDMI sources via the HDMI input.

Note: IEC power cord not included.

available since July 2020
Item number 499414
sales unit 1 piece(s)
Input HDMI
Output SDI / Optical Fiber
