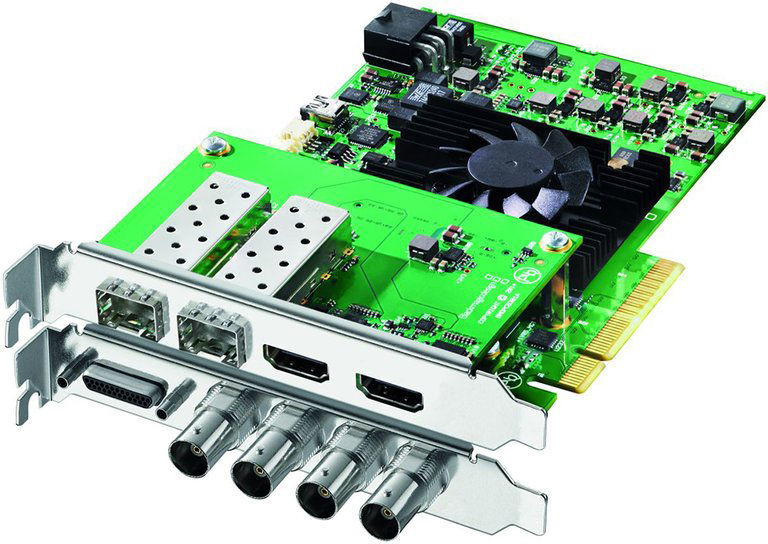

Blackmagic Design DeckLink 4K Extreme 12G

PCI Express capture card for cinema-quality digital content

  • With 12G-SDI inputs and outputs for full-frame DCI 4K
  • Multi-rate dual link 12G-SDI connections that work with SD, HD, Ultra HD and Ultra HD 60p, as well as full-frame DCI 4K at 4069 x 2160 resolution with frame rates up to 25p
  • Record in 10-bit YUV or full-colour bandwidth with 12-bit RGB
  • AES/EBU audio conversion and up/down/cross conversion, plus full-bandwidth stereoscopic 3D output with 4:4:4 RGB
  • Supported codecs: see user manual
  • Compatible operating systems: Mac Mojave 10.14 / Mac Catalina 10.15 or higher / Windows 8.1 and 10, both 64 bit / Linux
  • Included software: DaVinci Resolve, Blackmagic Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic drivers for Mac OS and Windows.
  • Supported software applications: DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC, Avid Media Composer, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke and many more.
  • Video standards: see operating instructions
  • Supported SDI metadata: RP 188/SMPTE 12M-2 and Closed Captioning
  • Audio sampling rate: standard television sampling rate of 48 kHz and 24-bit
  • SDI video sampling frequency: 4:2:2, 4:4:4
  • SDI colour accuracy: 8-, 10-, 12-bit RGB 4:4:4 in all modes up to UHD 30p and 8- and 10-bit YUV 4:2:2 in all modes
  • Colour spaces: Rec.601, Rec.709, Rec.2020
  • HDR support: HDR metadata packing
  • HLG and PQ transfer features (HDMI supports static HDR metadata only)
  • HDMI video sampling frequency: 4:4:4, 4:2:2 and 4:2:0
  • HDMI colour accuracy: 8, 10 and 12 bit (Deep Colour)
  • HDMI configuration: HDMI 2.0b supports Deep Colour and HDR (automatically configures with the connected display)
  • Multi-rate support: HDMI and SDI video connections are switchable between SD/HD/2K and 4K / analogue video connections for component are switchable between SD and HD: Power consumption: 30 W
  • Weight: 300 g
  • Included in delivery: DeckLink 4K Extreme 12G, HDMI mezzanine card, cable whip for analogue and RS-422 control and external power cable

Connections:

  • SDI video inputs: 2 connectors for 12 Gbps SD/HD/2K/4K (supports single/dual link 4:2:2/4:4:4 - switchable between 2D and 3D).
  • SDI video outputs: 2 connectors for 12 Gbit/s SD/HD/2K/4K (supports single/dual link 4:2:2/4:4:4 - switchable between 2D and 3D)
  • Analogue video inputs: 1 YUV component video via 3 BNC connectors (switchable to S- or FBAS video - supported in HD and SD)
  • Analogue video outputs: 1 YUV component video via 3 BNC connectors (switchable to S- and FBAS video - supported in HD and SD)
  • Analogue audio inputs: 2 channels balanced analogue audio via XLR
  • Analogue audio outputs: 2 channels balanced analogue audio via XLR
  • Fibre optic inputs/outputs (optional): 2 connections for 12 Gbit/s fibre optics
  • AES/EBU audio inputs: 2 channels of unbalanced audio with sample rate converter
  • AES/EBU audio outputs: 2 channels unbalanced audio
  • SDI audio inputs: 16 channels embedded in SD/HD/2K/4K
  • SDI audio outputs: 16 channels embedded in SD/HD/2K/4K
  • HDMI video inputs: HDMI Type A connector supports 2160p/60
  • HDMI video outputs
  • HDMI Type A connector supports 2160p/60
  • HDMI audio inputs
  • 8 Channels embedded in SD/HD/4K
  • HDMI audio outputs
  • 8 Channels embedded in SD/HD/4K
  • Sync input
  • Sony-compatible RS422 deck control port for tri-sync or black burst; unit control
  • Serial TxRx ports (direction reversible via software control)
  • Computer interface: PCI Express with 8 lanes Generation 2, compatible with 8- and 16-lane PCI Express slots on HDMI or SDI mezzanine cards

Note: recording of copyrighted HDMI sources is not possible via the HDMI input. Always check copyright before recording or distributing content.
