Behringer 994 Multiples

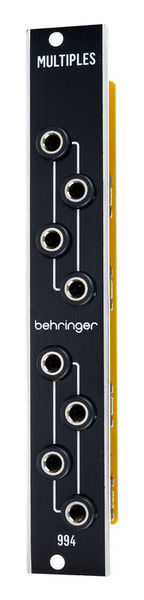

Behringer 994 Multiples; Eurorack module; passive multiple; dual 1-to-3 multiple; width: 4 HP; depth: 23 mm

Further Information

Width 4 TE / HP

These are other customers' choices:

Customers who looked at this item have bought these:

Behringer 994 Multiples
37% bought this exact product
Behringer 994 Multiples
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
£33 Add to Basket
Behringer 173 Quad Gate/Multiples
19% bought Behringer 173 Quad Gate/Multiples £66
Doepfer A-180-2 Multiples
9% bought Doepfer A-180-2 Multiples £30
Doepfer A-180-2 Vintage Edition
9% bought Doepfer A-180-2 Vintage Edition £34
Doepfer A-180-3 Dual Buffered Multiple
9% bought Doepfer A-180-3 Dual Buffered Multiple £42
Our most popular Multiple, Divider Modules
3 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • quality
Total
handling
features
quality
Skinny 994 Multiples Panel has v-trigger to s-trigger Potential
Alvino, 25.07.2020
There are currently Behringer System 55 modules (attenuator panel and mixer) which have “multiples” and one or two in the Behringer System 100 line. However this little module was very useful for a pair of v-trigger to s-trigger convertors... with triple s-trigger outputs.

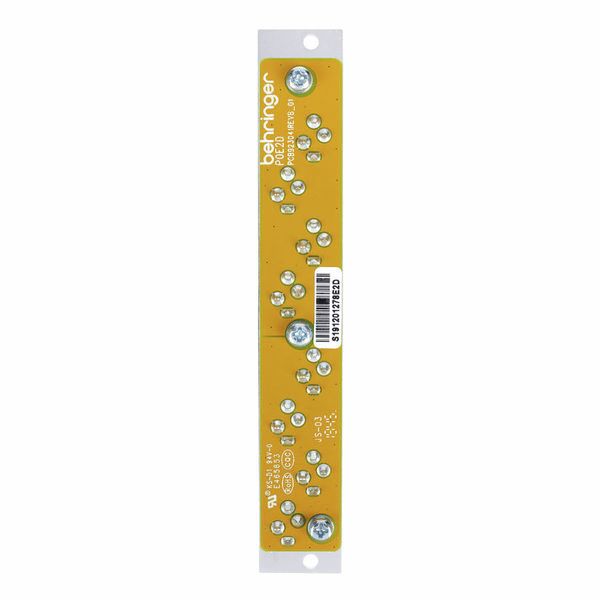

I’m not usually into voiding warrantees but made an exception here. I turned my 994 Into a v-trigger to triple s-trigger convertor needed for up to three 911 envelope generators. You can make this mod on one or both multiples as needed. Essentially you use the same v to s trigger circuit commonly available in any google search, although I did ignore the BJT version circuit in favor of an nFET solution (2N7000) rather than the BJT. I did this because an nFET pulls tighter to ground. One single trace cut on the 994 is required and then the rest of the mod solders to the back. Gate goes to v-trigger input through a 100-ohm resistor. Source goes directly to ground. Drain goes to triple s-trigger output... To make the s-trigger more reliable I installed a 1k pullup on the s-trigger outputs and got 12V from the eurorack bus; yes the pullup on the outputs was required in my case...or I get random triggering. This whole mod using a 994 takes a fraction of the space of a 961, but is a single purpose.

The BJT v to s trigger circuit you see online only works some of the time. It requires the strong 1k pullup described here. If you examine the s trigger input on Moog’s 911 schematic, the reason becomes apparent. Behringer copied the 911 in many details.

Great product and easy to work with. Well build and great price.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
quality
Macht was es verspricht
808Man, 29.05.2021
Gibt nicht viel zu sagen, außer dass es funktioniert und der Preis super ist.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
quality
Einfach und effektiv
RotaGilla, 09.12.2020
Hier gibt es nicht viel zu kommentieren. Macht, was es soll, ist gut verarbeitet und bei dem Preis ein no-brainer...
Und Multiples kann man nie genug haben, oder?
Danke an das Thomann-Team,
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
