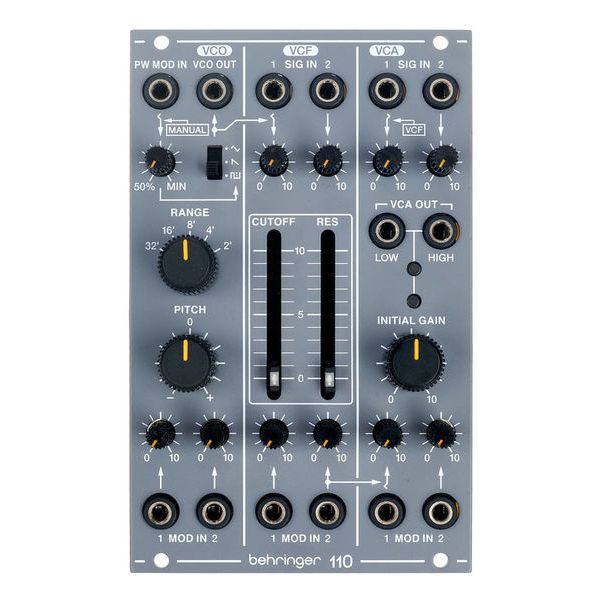

Behringer 110 VCO/VCF/VCA

31

Eurorack Module

  • Analog synthesizer voice
  • VCO with triangle, sawtooth and pulse waveforms
  • Adjustable pulse width with CV input, octave selector and fine tune control
  • 2 CV inputs with attenuator
  • Low pass filter with resonance
  • 2 signal inputs and 2 CV inputs with attenuator
  • VCA with 2 signal inputs and 2 CV inputs with attenuator, initial gain control and low/high signal outputs
  • Current consumption: 80 mA (+12 V) / 50 mA (-12 V)
  • Width: 16 TE
  • Depth: 46 mm
available since January 2021
Item number 506083
sales unit 1 piece(s)
£95
Including VAT; Excluding £10 shipping
In stock
In stock

This item is in stock and can be dispatched immediately.

Standard Delivery Times
1
J
Possibly the best value for money module ever
Johan73 18.12.2021
This is really a complete analog synth voice, minus only an envelope generator (if you should need one, which I generally don't as I am mostly using breath CV for controlling VCA and VCF). Its very wallet friendly price makes it a no-brainer to buy. I have bought lots of these now and I have had no problems at all. They all keep scale tuning and sound great. The high+low level outputs makes it possible to run it directly to the line level input of an amplifier or mixer which is nice.
handling
features
sound
quality
0
0
Report

Report

J
Great sounding, if shoddily set up, mini voice
JonBB 27.11.2022
I bought this to complement my Tonestar2600 in a mini-rack, adding a 2nd oscillator and filter.
The delivery from Thomann was speedy and problem free.
However, upon plugging in the module it soon became clear that scaling in the module was way off (i.e, playing 2 notes an octave apart not producing a clean octave).
The calibration trimmers are located behind the front panel and little documentation was available from Behringer on the issue.
Eventually I found a forum post explaining the procedure, removed the front and calibrated the module.
Now works like a charm and is indeed a very useful addition to the Tonestar.
handling
features
sound
quality
0
0
Report

Report

WF
All in one synth
Wow Factor 11.10.2021
It's a very good beginner all in one module but it could use an envelope generator
handling
features
sound
quality
0
0
Report

Report

C
Great cheap starter module
Cain77 30.01.2021
Osc, filter & vca in one module for this price is hard to fault. Paired with the 140, you basically have a SH101/202 style voice.
handling
features
sound
quality
1
0
Report

Report
