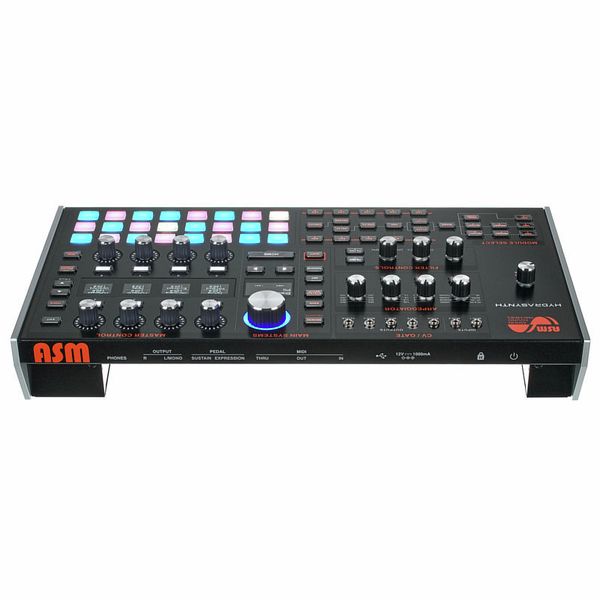

Digital Wave-Morphing Synthesizer
- 24 Touch- and velocity-sensitive pads
- 8 Voice polyphony - monotimbral
- Fully polyphonic aftertouch
- Arpeggiator includes Ratchet, Chance, Gate and Swing (8 modes in total)
- 3 Oscillators with 219 single-cycle waveforms
- WaveScan parameters for modulating via wavetables
- Wavelist mode for blending up to 8 wavetables
- 8 Custom Wavelists per oscillator
- Mixer includes Noise Generator and Ring Modulator
- 2 Filters: series or parallel
- Filter 1 includes 11 different filter models (12 & 24 dB Ladder, Ladder Vintage, HP, LP, Vocal, etc.)
- Filter 2: 12 dB (SEM-style) per octave, includes Continuous Sweep from lowpass, bandpass, up to highpass)
- Modulation matrix
- 5 DAHDSR envelopes
- 5 LFOs
- LFOs include Delay, Fade In, 3 Trigger Modes, Smoothing, Start Phase, One Shot Mode
- 5 Banks with 128 patches each - 256 of which are factory patches
- CV-Gate inputs and outputs
- Supports all common CV/GATE standards
- Clock input and output
- 8 High-resolution encoders, including LED rings
- USB (USB MIDI In/Out)
- MIDI: In/Out/Thru
- Pre- and post effects for unique sound editing possibilites
- Dimensions: 440 x 223 x 70 mm
- Weight: 3.6 kg
- Suitable optional case: Art.497642 (not included)
available since
January 2020
Item number
475387
sales unit
1 piece(s)
Design
Desktop
Polyphony
8
Sound Generation
Digital
MIDI interface
1x In, 1x Out, 1x Thru
Storage Medium
None
USB-port
Yes
Effects
Yes
Arpeggiator
Yes
Number of Analog Outputs
2
Digital Output
No
Display
Yes
Optional Expansions
None
Special Features
Digital Wavemorphing Synthesizer
