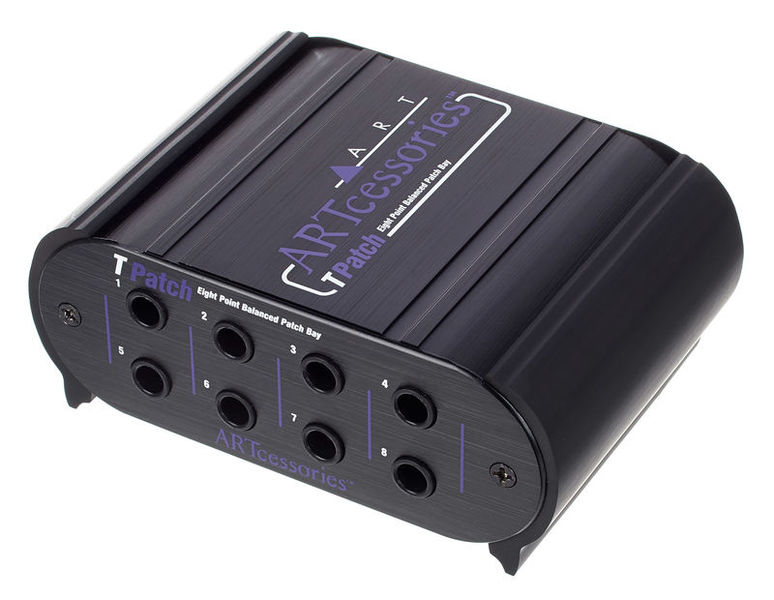

ART TPatch

Passive 8-Channel Patch Bay

  • 8 Balanced inputs and outputs: 6.3 mm jack
  • Switchable between normalised and semi-normalised mode
  • Aluminium housing
  • Dimensions (W x H x D): 117 x 47 x 99 mm
  • Weight: 0.38 kg

Further Information

Number Of Channels 8
Type Of Connector Jack
Normalizing Mode Yes
Digital Patchbay No
Soldering Required No
Design Desktop
17 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.6 /5
  • handling
  • features
  • quality
Total
handling
features
quality
Feels wobbly
Tomislav S, 29.09.2020
The jack groups are just hanging between the holes in the patch panel. To keep them from ratting, ART has a strip of foam pressing on one side, no other mounting solution. While plugging cables jacks still give you that cheap feel.
The sides/legs are one-piece rubber and they are not glued on but slotted in the aluminum body. If needed, it is easily removable or reversible as the body is symmetric.
No problems with the connections or cross-talk just yet.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
quality
Very useful
Cronos, 07.11.2018
I use it in my pedalboard, it;s useful to easily change connections between components (for example, I can connect looper at the start or the end of my chain). Additionally input and output to my pedalboard are located in one place. Functionality of effects switcher (hmmm, almost) at low price. Yes, and it's passive - it doesn't require ant power source .
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
quality
Very good, low noise and tidy size
NIELSIR, 03.12.2020
Happy with this patch bay which I am using as a little Sub patch bay feeding off my main bay. It works great. Only wish would be for it to have some for of rack mounts for a half panel. But, that is not necessary. Great piece of kit.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
quality
krustymars, 15.09.2020
Bon matos tout en métal pour des mini besoins locaux en patching .

Utilisation
Je l'utilise pour switcher mes monitors entre la sortie de mon interface audio numérique et la sortie de mon enregistreur externe suivant mes besoins .

Avantages et inconvénients
C'est du solide et ça fait le boulot
Le prix est un peu abusé quand on considère le prix d'un patchbay 19 pouces 1U à coté.
Mais c'est la seule option sur Thomann au format 1/4 ou 1/2 rack, j'aurais bien pris un truc comme ça en 1/2 rack 9.5 pouces. Je pense que je fabriquerai le prochain du coup.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
£44
Including VAT; Excluding £8 shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
